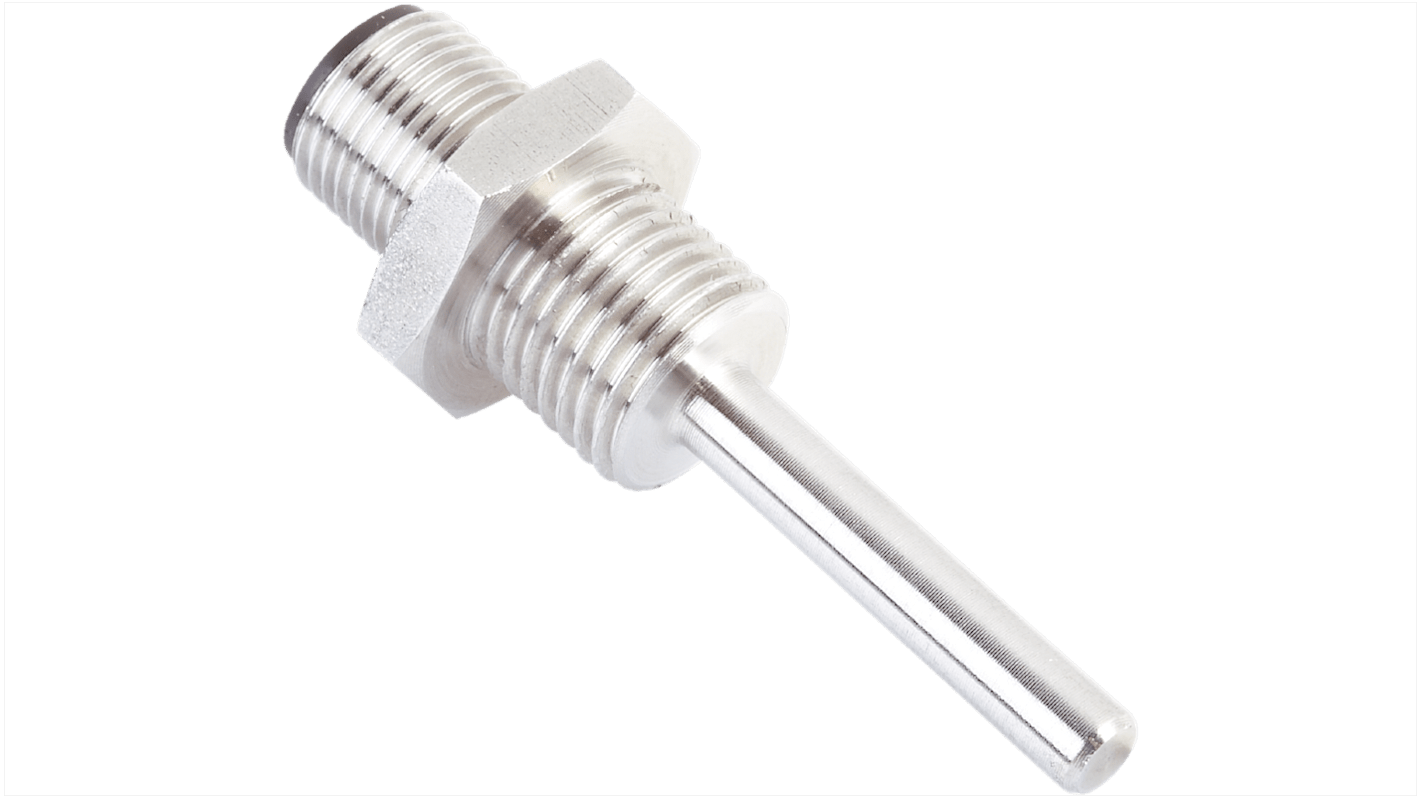

SICK PT100 RTD Sensor, 5mm Dia, 30mm Long, 2 Wire, G 3/8 B, +100°C Max
- RS Stock No.:
- 285-9066
- Mfr. Part No.:
- TSP-1PAG30305MZ / 6042942
- Brand:
- SICK
Subtotal (1 unit)*
£56.76
(exc. VAT)
£68.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £56.76 |
*price indicative
- RS Stock No.:
- 285-9066
- Mfr. Part No.:
- TSP-1PAG30305MZ / 6042942
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Sensor Type | PT100 | |
| Probe Length | 30mm | |
| Probe Diameter | 5mm | |
| Minimum Temperature Sensed | -40°C | |
| Maximum Temperature Sensed | +100°C | |
| Termination Type | M12 Round Plug Connector | |
| Series | TSP | |
| Process Connection | G 3/8 B | |
| Cable Entry Size | M12 | |
| Number Of Wires | 2 | |
| Response Time | 2.5 s | |
Select all | ||
|---|---|---|
Brand SICK | ||
Sensor Type PT100 | ||
Probe Length 30mm | ||
Probe Diameter 5mm | ||
Minimum Temperature Sensed -40°C | ||
Maximum Temperature Sensed +100°C | ||
Termination Type M12 Round Plug Connector | ||
Series TSP | ||
Process Connection G 3/8 B | ||
Cable Entry Size M12 | ||
Number Of Wires 2 | ||
Response Time 2.5 s | ||
- COO (Country of Origin):
- DE
Overview
The TSP is a universal purpose platinum insertion thermometer for the temperature measurement in liquids and gases. It can be adapted to specific applications through its available connection threads and insertion lengths. Wetted parts are made from stain
The platinum resistor (Pt100 or Pt1000, accuracy class B according to IEC 60751) is located inside the tip of the probe. It is electrically connected by an M12 x 1 circular connector. Therefore, the device is compact and well suited for narrow installatio
At a glance
Platinum resistance (Pt100 or Pt1000, 2-wire or 3-wire), accuracy class B according to IEC 60751
Measuring range –30 °C ... +130 °C
Various connection threads and insertion lengths
Parts in contact with media made from stainless steel 1.4305
Round connect
Measuring range –30 °C ... +130 °C
Various connection threads and insertion lengths
Parts in contact with media made from stainless steel 1.4305
Round connect
Your Benefit
Reliable operation through rugged design and high-quality materials
Good long-term stability
Quick and safe installation
Simple system integration through very compact dimensions
Good long-term stability
Quick and safe installation
Simple system integration through very compact dimensions
Applications
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
