Electrotherm PT100 RTD Sensor 6 mm Dia, 50 mm Long, 2 Wire, F0.3 200 °C max IP65
- RS Stock No.:
- 274-0220
- Mfr. Part No.:
- 408-E-0/10-0/200-50
- Brand:
- Electrotherm
Subtotal (1 unit)*
£139.63
(exc. VAT)
£167.56
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £139.63 |
*price indicative
- RS Stock No.:
- 274-0220
- Mfr. Part No.:
- 408-E-0/10-0/200-50
- Brand:
- Electrotherm
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Electrotherm | |
| Sensor Type | PT100 | |
| Product Type | RTD Sensor | |
| Probe Length | 50mm | |
| Probe Diameter | 6mm | |
| Minimum Temperature Sensed | 0°C | |
| Maximum Temperature Sensed | 200°C | |
| Termination Type | G 1/2 A | |
| Series | 408RS | |
| Probe Material | 316Ti Stainless Steel | |
| Interface | 2 Wire | |
| Hazardous Area Certification | IP65 | |
| Number of Wires | 2 | |
| Accuracy | F0.3 | |
| Select all | ||
|---|---|---|
Brand Electrotherm | ||
Sensor Type PT100 | ||
Product Type RTD Sensor | ||
Probe Length 50mm | ||
Probe Diameter 6mm | ||
Minimum Temperature Sensed 0°C | ||
Maximum Temperature Sensed 200°C | ||
Termination Type G 1/2 A | ||
Series 408RS | ||
Probe Material 316Ti Stainless Steel | ||
Interface 2 Wire | ||
Hazardous Area Certification IP65 | ||
Number of Wires 2 | ||
Accuracy F0.3 | ||
- COO (Country of Origin):
- DE

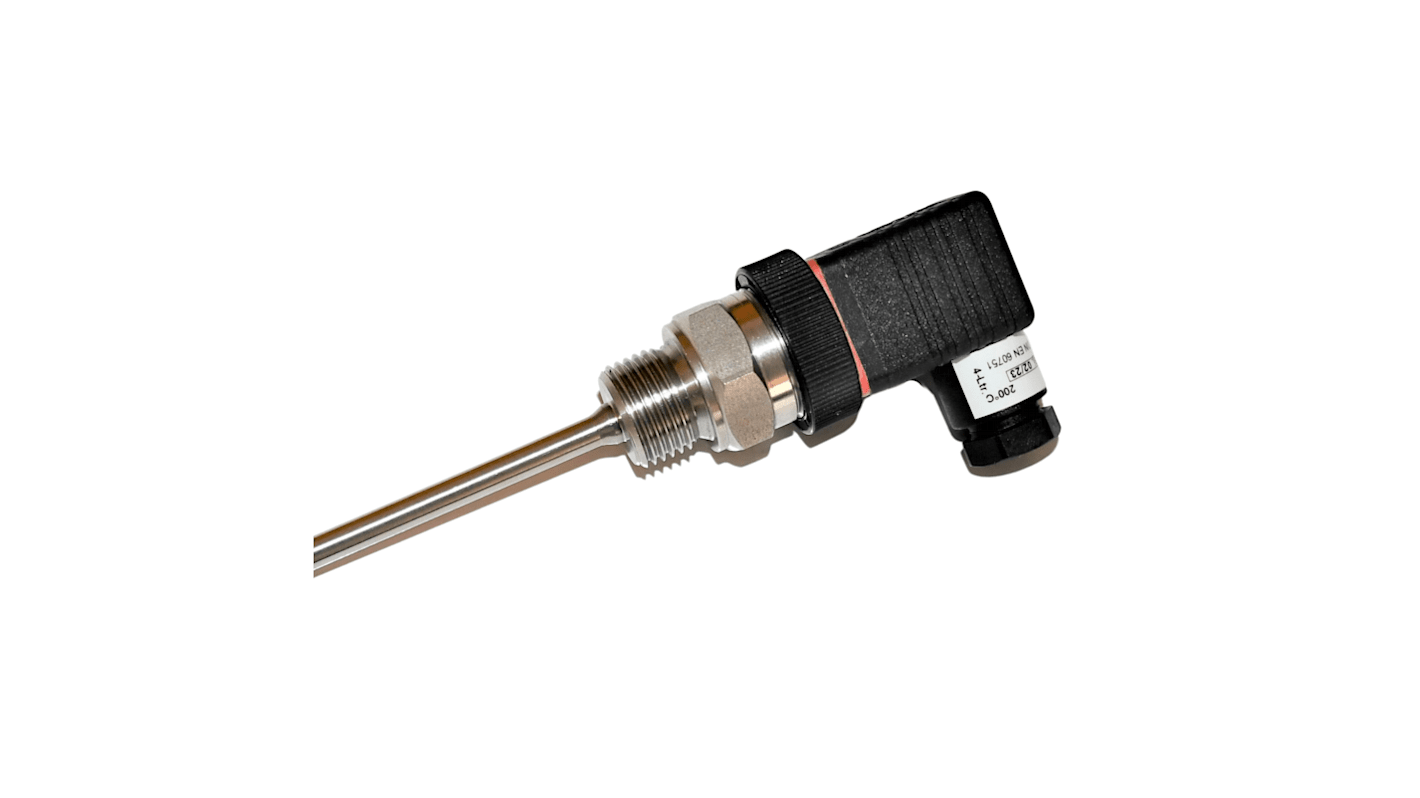

The Electrotherm resistance thermometer is small resistance thermometer for screwing in with connector and built in transmitter.
Connection head plug in connector GSP or GDM
Protective tube material stainless steel
