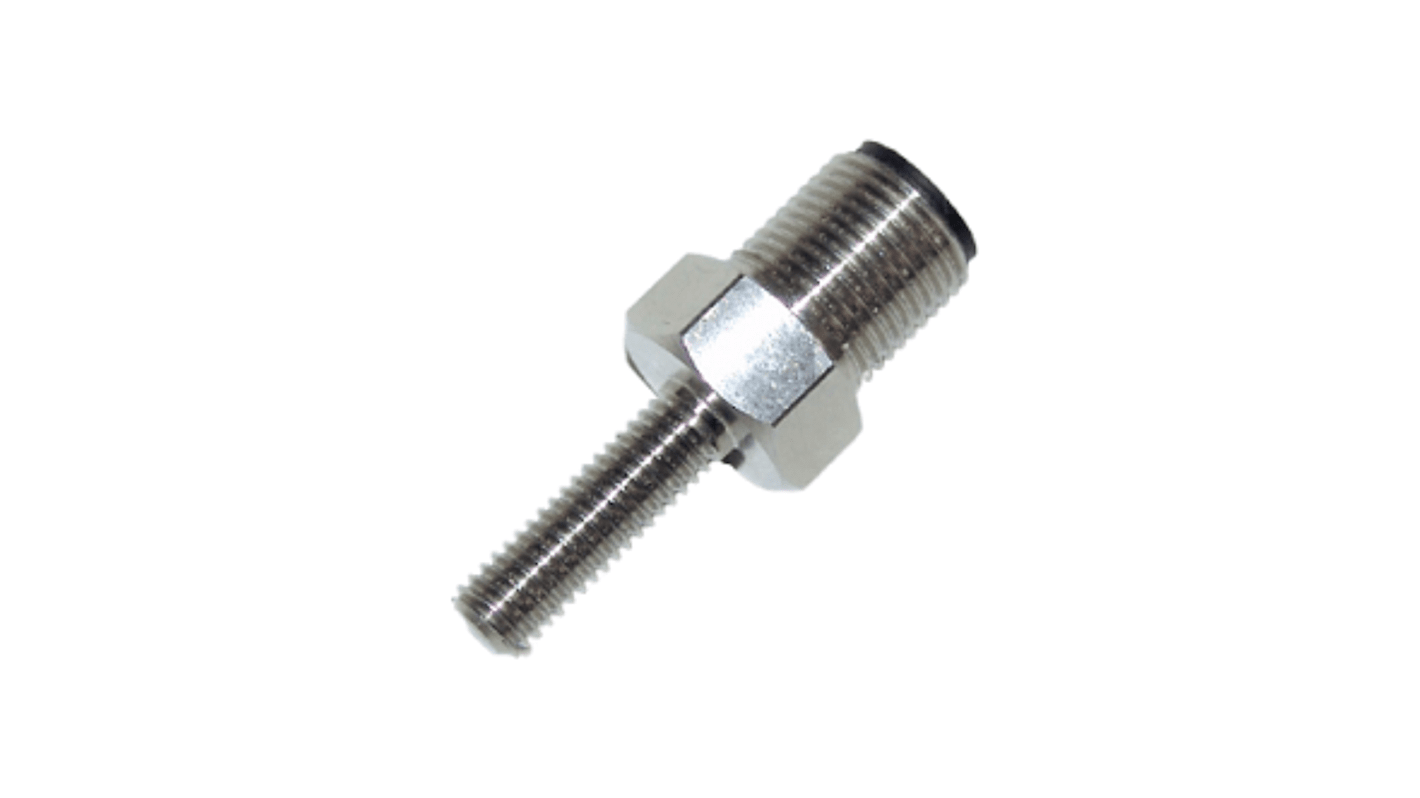

Electrotherm PT100 RTD Sensor 6 mm Dia, 20 mm Long, 4 Wire, 100 °C Max
- RS Stock No.:
- 250-1215
- Mfr. Part No.:
- 412S1-E-4L-100-M6-20
- Brand:
- Electrotherm
Subtotal (1 unit)*
£63.33
(exc. VAT)
£76.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £63.33 |
*price indicative
- RS Stock No.:
- 250-1215
- Mfr. Part No.:
- 412S1-E-4L-100-M6-20
- Brand:
- Electrotherm
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Electrotherm | |
| Product Type | RTD Sensor | |
| Sensor Type | PT100 | |
| Probe Length | 20mm | |
| Probe Diameter | 6mm | |
| Minimum Temperature Sensed | 0°C | |
| Maximum Temperature Sensed | 100°C | |
| Series | 412S1-E-4L-100-M6-20 | |
| Probe Material | 316Ti Stainless Steel | |
| Interface | M12X1 | |
| Number of Wires | 4 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Electrotherm | ||
Product Type RTD Sensor | ||
Sensor Type PT100 | ||
Probe Length 20mm | ||
Probe Diameter 6mm | ||
Minimum Temperature Sensed 0°C | ||
Maximum Temperature Sensed 100°C | ||
Series 412S1-E-4L-100-M6-20 | ||
Probe Material 316Ti Stainless Steel | ||
Interface M12X1 | ||
Number of Wires 4 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE
The Electrotherm resistance thermometer is a small resistance thermometer used for screwing in with built in connector M12x1. Resistance thermometer type is 412S1. The resistance thermometers are very well suited for use in general machine, apparatus, plant, container and pipeline construction, as well as in the chemical and process engineering and food industries, where they are preferably used for detecting the temperature in liquid and gaseous media. Its compact design and very flexible installation options. Their compact design makes them particularly suitable for installation in places with limited space.
Resistance thermometer
Built in connector series 713 M12x1 4-pin
Degree of protection - I 54 acc. to P DIN EN 60529 when closed
Measuring range 0 to +100°C
1 x Pt 100 F0,3 acc. to DIN EN 60751 in 4-wire-circuit
Protective tube material 1.4571
Installment length 20 mm
Thread M6
