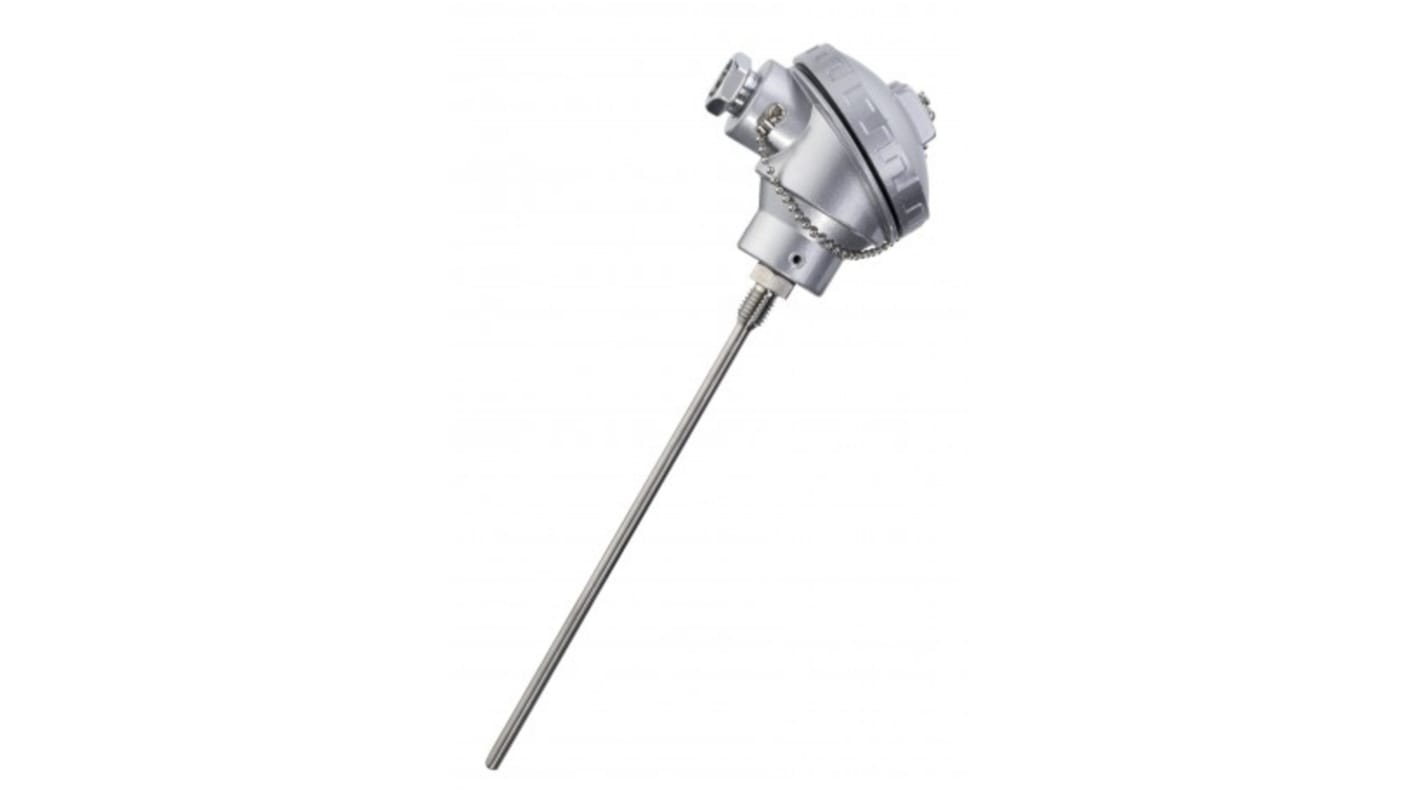

RS PRO PT100 RTD Sensor, 6mm Dia, 200mm Long, NPT 1/4, +850°C Max

View all RTD Sensors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO PT100 RTD Sensor, 6mm Dia, 250mm Long, NPT 1/4, +850°C Max
RS Stock No.
174-7529

Each

£228.31

(exc. VAT)

£273.97

(inc. VAT)

RS Stock No.:
174-7528
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Sensor Type

PT100

Probe Length

200mm

Probe Diameter

6mm

Minimum Temperature Sensed

-200°C

Maximum Temperature Sensed

+850°C

Termination Type

Connection Head

Probe Material

Stainless Steel

Process Connection

NPT 1/4

COO (Country of Origin):
GB
These temperature probe assemblies are all constructed using a stainless steel sheath containing either a J or K type thermocouple or a P100 RTD sensor element. The aluminium head contains a programmable 4-20mA transmitter which, although pre-programmed for the standard temperature range of the sensor can be changed by the user so that the 4-20mA output corresponds to any temperature range within the sensors' capabilities. A wide range of accessories can be chosen, from plastic and metal cable glands to compression fittings and stainless steel pockets (not supplied).

K or J Type Thermocouples or PT100 RTD Sensors
4-20mA linearised output, configurable to application specific temperature range
6mm stainless steel sheath
1/4"NPT mounting thread
