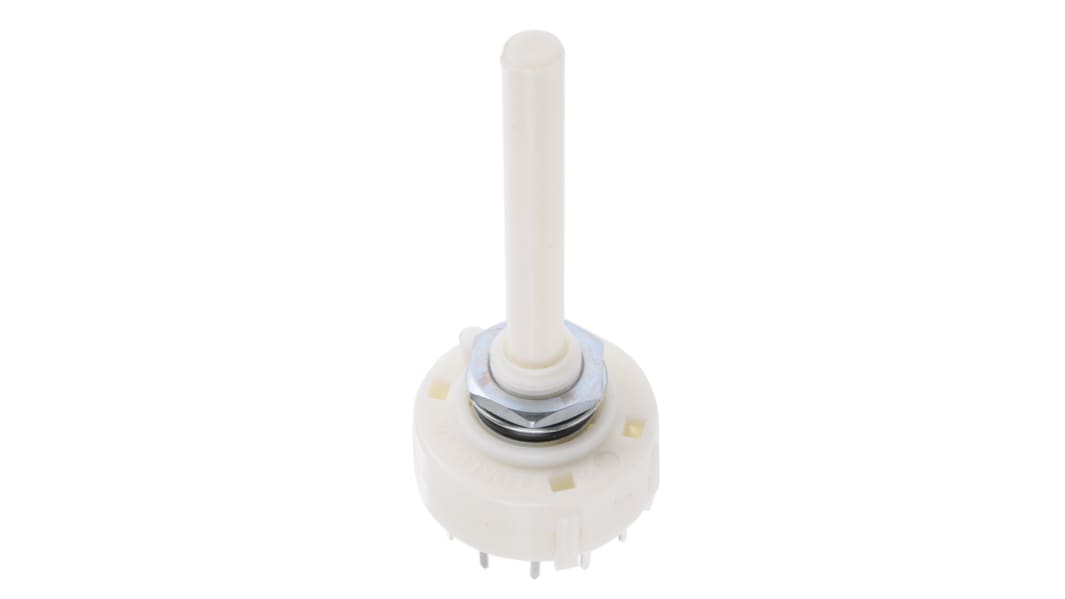

Lorlin, 6 Position DP6T Rotary Switch, 150 mA @ 250 V ac, Solder
- RS Stock No.:
- 711-8353
- Mfr. Part No.:
- CKF1050
- Brand:
- Lorlin
Bulk discount available
Subtotal (1 unit)*
£4.09
(exc. VAT)
£4.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 502 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.09 |
| 10 - 49 | £3.68 |
| 50 - 99 | £3.07 |
| 100 - 249 | £2.86 |
| 250 + | £2.61 |
*price indicative
- RS Stock No.:
- 711-8353
- Mfr. Part No.:
- CKF1050
- Brand:
- Lorlin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lorlin | |
| Contact Configuration | DP6T | |
| Contact Current Rating | 150 mA @ 250 V ac | |
| Number of Switch Positions | 6 | |
| Number of Contacts | 2 | |
| Voltage Rating | 250V ac/dc | |
| Diameter | 27.5mm | |
| Dimensions | 27.5 x 64.1mm | |
| Mounting Type | PCB | |
| Mounting Hole Size | 1.5 (PCB) mm, 10 (Panel) mm | |
| Terminal Type | Solder | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 10000Operations | |
| Minimum Operating Temperature | -30°C | |
| Legend Text Colour | White | |
| Height | 64.1mm | |
| Contact Material | Silver Plated Brass | |
| Case Material | Nylon 66 | |
| Legend Text | 1-12 | |
Select all | ||
|---|---|---|
Brand Lorlin | ||
Contact Configuration DP6T | ||
Contact Current Rating 150 mA @ 250 V ac | ||
Number of Switch Positions 6 | ||
Number of Contacts 2 | ||
Voltage Rating 250V ac/dc | ||
Diameter 27.5mm | ||
Dimensions 27.5 x 64.1mm | ||
Mounting Type PCB | ||
Mounting Hole Size 1.5 (PCB) mm, 10 (Panel) mm | ||
Terminal Type Solder | ||
IP Rating IP65 | ||
Maximum Operating Temperature +85°C | ||
Mechanical Life 10000Operations | ||
Minimum Operating Temperature -30°C | ||
Legend Text Colour White | ||
Height 64.1mm | ||
Contact Material Silver Plated Brass | ||
Case Material Nylon 66 | ||
Legend Text 1-12 | ||
Sealed Rotary Switch - PCB Mount
Single wafer switch
30° indexing
Non-shorting break before make contacts
Dampened indexing and reduced shaft play
Sealed to IP65
Stop included
30° indexing
Non-shorting break before make contacts
Dampened indexing and reduced shaft play
Sealed to IP65
Stop included
