NKK Switches, 2 → 6 Position DP6T Rotary Switch, 0.1 → 100 mA, Through Hole
- RS Stock No.:
- 428-9516
- Mfr. Part No.:
- MR-K206
- Brand:
- NKK Switches

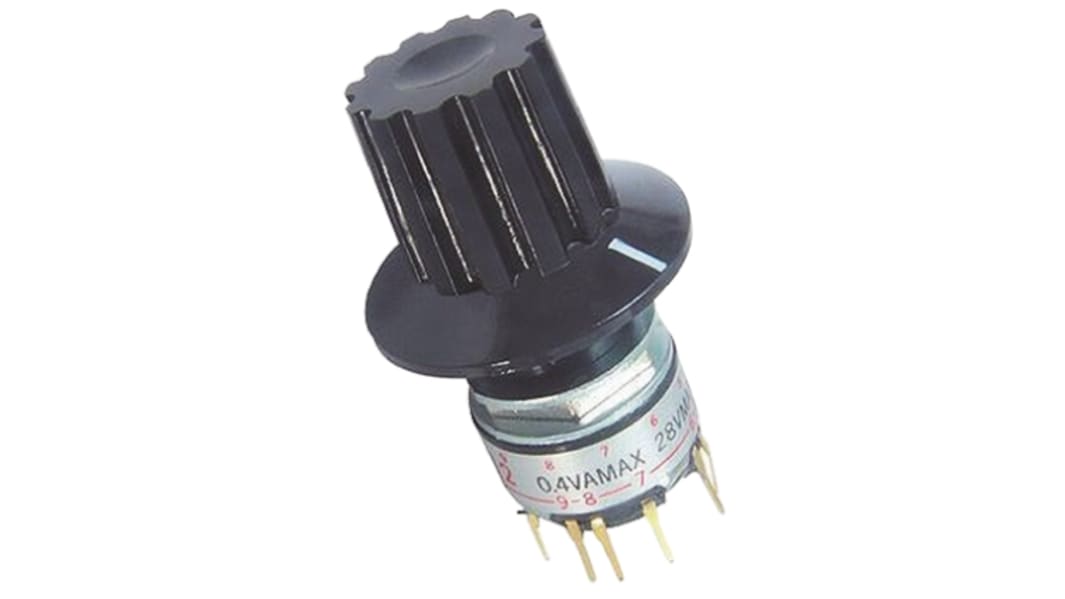

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£13.64
(exc. VAT)
£16.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 19 unit(s) shipping from 02 January 2026
- Plus 24 unit(s) shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £13.64 |
| 50 - 99 | £11.93 |
| 100 - 249 | £11.07 |
| 250 - 499 | £10.68 |
| 500 + | £10.35 |
*price indicative
- RS Stock No.:
- 428-9516
- Mfr. Part No.:
- MR-K206
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Contact Configuration | DP6T | |
| Contact Current Rating | 0.1 → 100 mA | |
| Number of Switch Positions | 2 → 6 | |
| Number of Contacts | 2 | |
| Diameter | 12mm | |
| Dimensions | 12 x 25.6mm | |
| Mounting Type | Panel Mount | |
| Mounting Hole Size | 6.35mm | |
| Terminal Type | Through Hole | |
| IP Rating | IP67 | |
| Height | 25.6mm | |
| Contact Material | Gold Plated Phosphor Bronze | |
| Case Material | Zinc Plated Zinc Alloy | |
| Maximum Operating Temperature | +70°C | |
| Mechanical Life | 30000Operations | |
| Minimum Operating Temperature | -10°C | |
| Select all | ||
|---|---|---|
Brand NKK Switches | ||
Contact Configuration DP6T | ||
Contact Current Rating 0.1 → 100 mA | ||
Number of Switch Positions 2 → 6 | ||
Number of Contacts 2 | ||
Diameter 12mm | ||
Dimensions 12 x 25.6mm | ||
Mounting Type Panel Mount | ||
Mounting Hole Size 6.35mm | ||
Terminal Type Through Hole | ||
IP Rating IP67 | ||
Height 25.6mm | ||
Contact Material Gold Plated Phosphor Bronze | ||
Case Material Zinc Plated Zinc Alloy | ||
Maximum Operating Temperature +70°C | ||
Mechanical Life 30000Operations | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- JP
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
