- RS Stock No.:
- 221-1201
- Mfr. Part No.:
- LV429340
- Brand:
- Schneider Electric
Available to back order for despatch when stock is available
Added
Price Each
£178.96
(exc. VAT)
£214.75
(inc. VAT)
Units | Per unit |
1 + | £178.96 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 221-1201
- Mfr. Part No.:
- LV429340
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

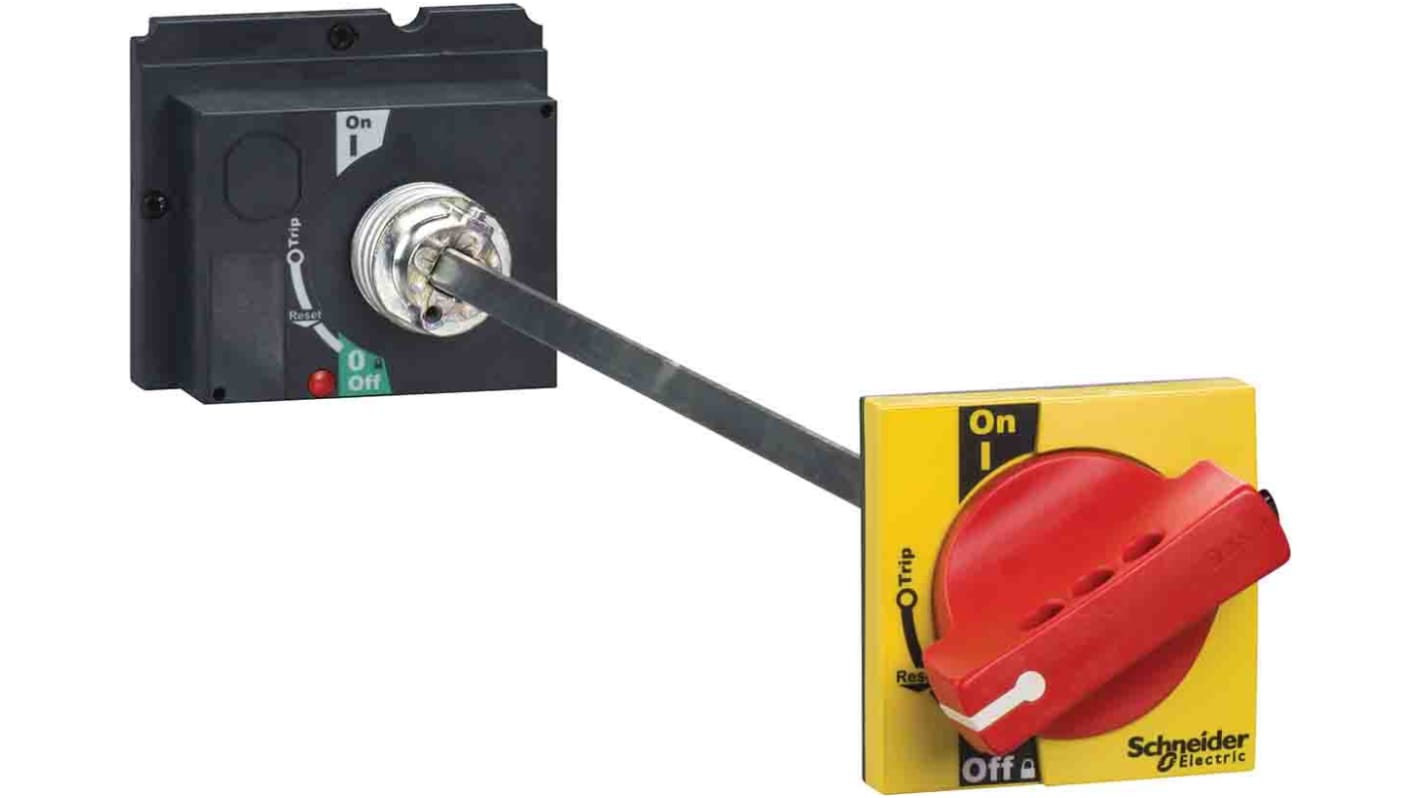

The Schneider Electric extended rotary handle for Compact NSX 100/160/250 and PowerPact Multistandard H/J frames devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a red handle on yellow front. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm.
IP degree of protection - IP55
Mercury free
Mercury free
Specifications
Attribute | Value |
---|---|
For Use With | Compact Nsx 100/160/250 |
Handle Colour | Red |
Series | Lv4 |
