Petzl Rope Pulley, 8mm min rope diameter, 13mm max rope diameter, 280kg max working load, 36kN breaking strength

View all Rope Pulleys

Subtotal (1 unit)*

£357.56

(exc. VAT)

£429.07

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£357.56

*price indicative

RS Stock No.:
244-2180
Mfr. Part No.:
P001DA00
Brand:
Petzl
Find similar products by selecting one or more attributes.
Select all

Brand

Petzl

Sheave Type

Sealed Ball Bearings

Sheave Diameter

38mm

Minimum Rope Diameter

8mm

Maximum Rope Diameter

13mm

Maximum Working Load

280kg

Breaking Strength

36kN

Material

Aluminium, Nylon, Stainless Steel

Weight

800g

Colour

Yellow

Efficiency

0.95

RoHS Status: Exempt

COO (Country of Origin):
FR

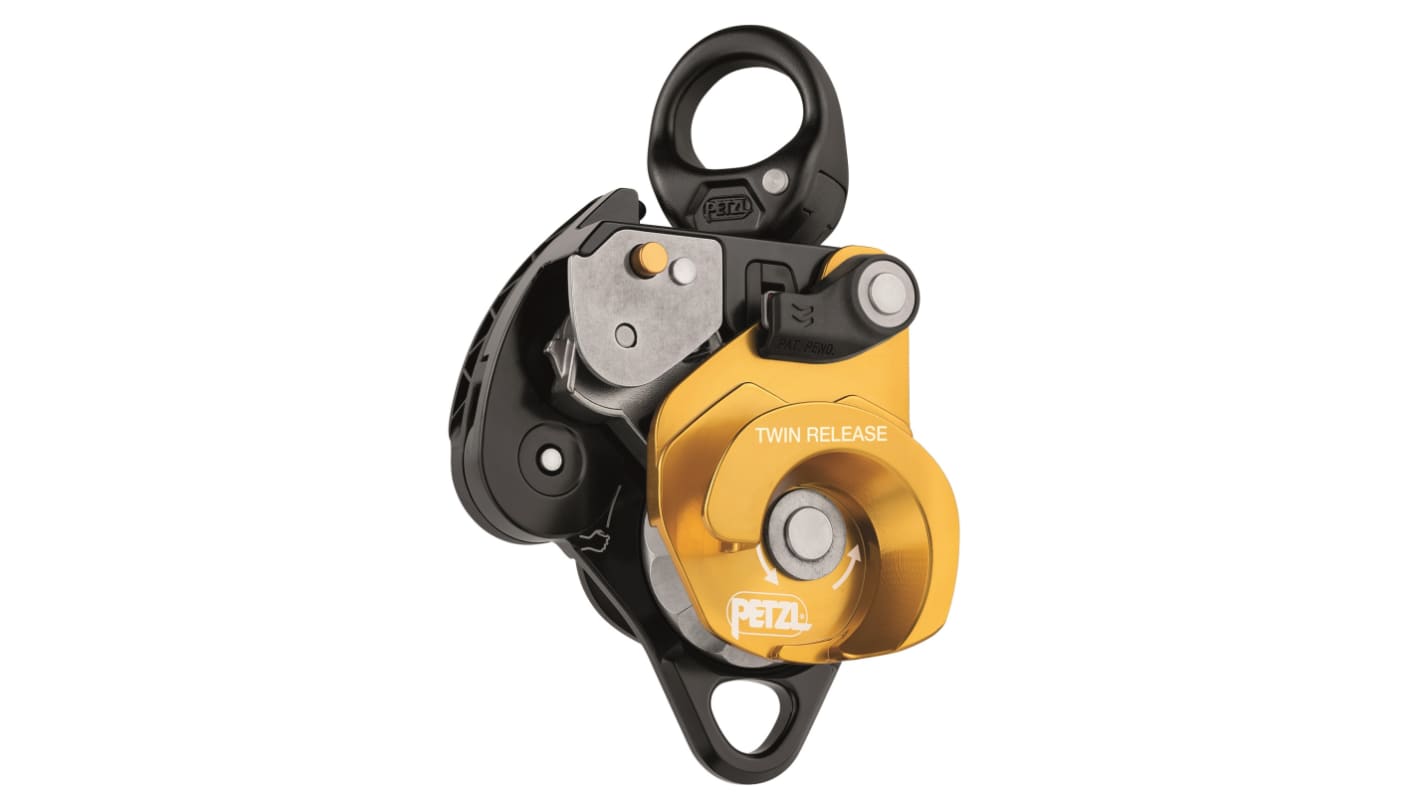

The Petzl TWIN RELEASE progress capture pulley is designed to set up 4:1 haul systems for work in confined spaces or for technical rescue. Releasing the cam is possible with the ergonomic handle. The brake integrated into the moving side plate and the main faceted sheave with single-direction rotation, offer additional braking and better control when lowering heavy loads. The two sheaves provide excellent hauling efficiency. The swivel facilitates operations, allowing the pulley to be oriented under load and direct connection of carabiners, ropes, or slings.

Double progress capture pulley with handle to release cam
Ergonomic handle for easy release of the cam
Brake integrated into main moving side plate allowing comfortable and precise control when lowering heavy loads
Cam can be locked in the open position to easily feed slack
Triple-action opening of the moving side plates is quick and easy, even with gloves
Red indicators provide a visual warning when the side plates are unlocked
The rope can be installed with the device connected to the anchor
Hole in the handle for installation of a remote control cord
