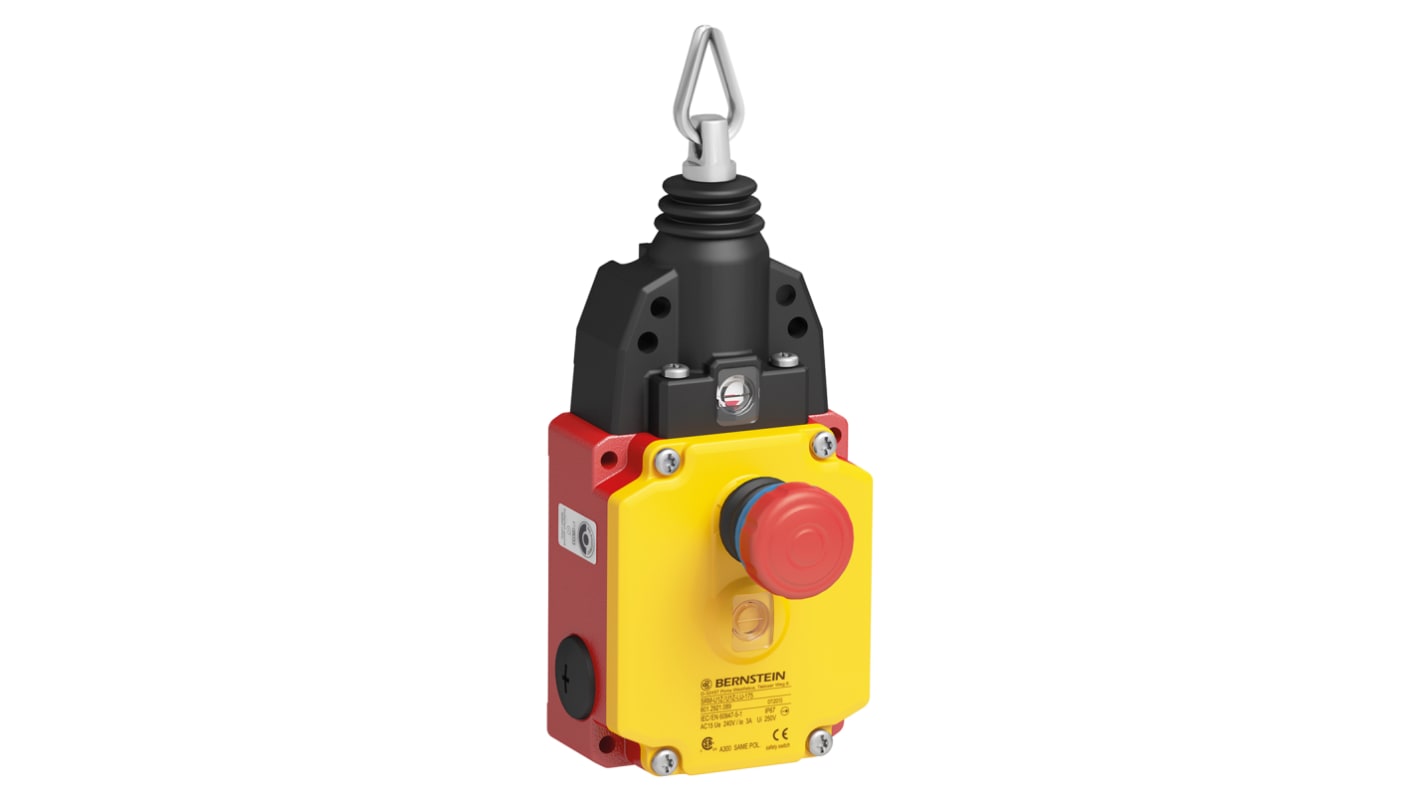

Bernstein AG SRM Rope Pull Switch, 75m
- RS Stock No.:
- 136-3171
- Mfr. Part No.:
- 6012921091
- Brand:
- Bernstein AG
Available to back order for despatch 25/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£143.82
(exc. VAT)
£172.58
(inc. VAT)
| Units | Per unit |
| 1 + | £143.82 |
- RS Stock No.:
- 136-3171
- Mfr. Part No.:
- 6012921091
- Brand:
- Bernstein AG
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Cable Pull System SR-U2Z 300 / 175 / 100
Maximum system length: 75 m
Switch function: 2 NC + 2 NO (standard)
Built-in reset button
Cable pull eyelet, low cost
Visualisation of correct cable tension
Meets EN418 and IEC947-5-5
Protection class IP67
Switch function: 2 NC + 2 NO (standard)
Built-in reset button
Cable pull eyelet, low cost
Visualisation of correct cable tension
Meets EN418 and IEC947-5-5
Protection class IP67
Safety cable pull switch, plastic housing SR-U2Z 300 / 175 / 100
Standards
EN418; IEC947-5-5
Specifications
Attribute | Value |
|---|---|
| Cable Length | 75m |
| IP Rating | IP67 |
| Number of Poles | SP |
| Series | SRM |
| Length | 90mm |
| Width | 88mm |
| Depth | 197mm |
| Housing Material | Aluminium |
| Maximum AC Voltage | 250V |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Dimensions | 90 x 88 x 197mm |
| Conduit Entry | M20 x 1.5 |
