SKF JL 69349/310 38mm I.D Taper Imperial Roller Bearing, 63mm O.D
- RS Stock No.:
- 850-7607
- Mfr. Part No.:
- JL 69349/310
- Brand:
- SKF
Subtotal (1 unit)*
£28.25
(exc. VAT)
£33.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.25 |
*price indicative
- RS Stock No.:
- 850-7607
- Mfr. Part No.:
- JL 69349/310
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 38mm | |
| Outside Diameter | 63mm | |
| Roller Bearing Type | Taper | |
| Race Width | 17mm | |
| Bore Type | Parallel | |
| Static Load Rating | 52kN | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 36.9kN | |
| End Type | Open | |
| Reference Speed | 7500rpm | |
| Limiting Speed | 11000rpm | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 38mm | ||
Outside Diameter 63mm | ||
Roller Bearing Type Taper | ||
Race Width 17mm | ||
Bore Type Parallel | ||
Static Load Rating 52kN | ||
Number of Rows 1 | ||
Dynamic Load Rating 36.9kN | ||
End Type Open | ||
Reference Speed 7500rpm | ||
Limiting Speed 11000rpm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Imperial

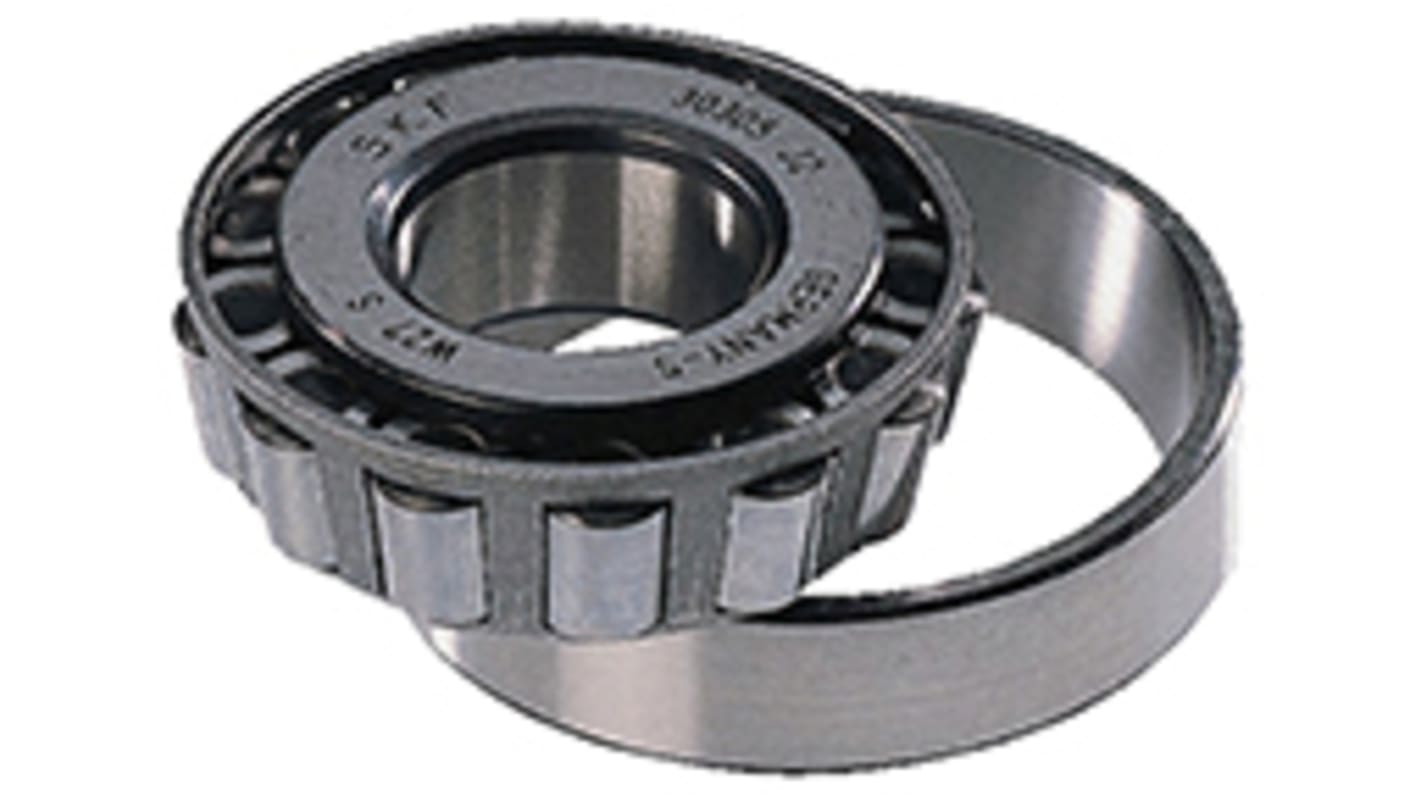

Single row, roller taper bearings suitable for heavy radial loads and axial loads in a single direction. Usually mounted in pairs they are used in a variety of applications including, gearboxes, shafts and motors.
SKFs imperial tapered roller bearings offer engineers many advantages over more conventional roller bearings.
Maintaining a lubricant film between bearing flange and roller reduces friction, heat and wear extending working life and reducing noise.
Running in periods are reduced due to a design that significantly reduces friction and wear.
Rollers and raceways are engineered using very precise tolerances ensuring optimal load distribution and minimal noise and vibration.
Crowned raceways help reduce stress at the roller ends extending the bearing lifespan under heavy loads or misalignment.
Maintaining a lubricant film between bearing flange and roller reduces friction, heat and wear extending working life and reducing noise.
Running in periods are reduced due to a design that significantly reduces friction and wear.
Rollers and raceways are engineered using very precise tolerances ensuring optimal load distribution and minimal noise and vibration.
Crowned raceways help reduce stress at the roller ends extending the bearing lifespan under heavy loads or misalignment.
