INA NK5/10-TV-XL 5 mm ID Roller Bearing Needle, 10 mm OD
- RS Stock No.:
- 260-0604
- Mfr. Part No.:
- NK5/10-TV-XL
- Brand:
- INA
Subtotal (1 pack of 10 units)*
£132.72
(exc. VAT)
£159.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £13.272 | £132.72 |
*price indicative
- RS Stock No.:
- 260-0604
- Mfr. Part No.:
- NK5/10-TV-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 5mm | |
| Race Width | 10mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Limiting Speed | 39000rpm | |
| Outside Diameter | 10mm | |
| Series | Light | |
| Static Load Rating | 1.92kN | |
| Dynamic Load Rating | 2.65kN | |
| End Type | Open | |
| Standards/Approvals | No | |
| Number of Rows | 1 | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 5mm | ||
Race Width 10mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Roller Material Steel | ||
Limiting Speed 39000rpm | ||
Outside Diameter 10mm | ||
Series Light | ||
Static Load Rating 1.92kN | ||
Dynamic Load Rating 2.65kN | ||
End Type Open | ||
Standards/Approvals No | ||
Number of Rows 1 | ||
Bearing Type Needle | ||
- COO (Country of Origin):
- SK

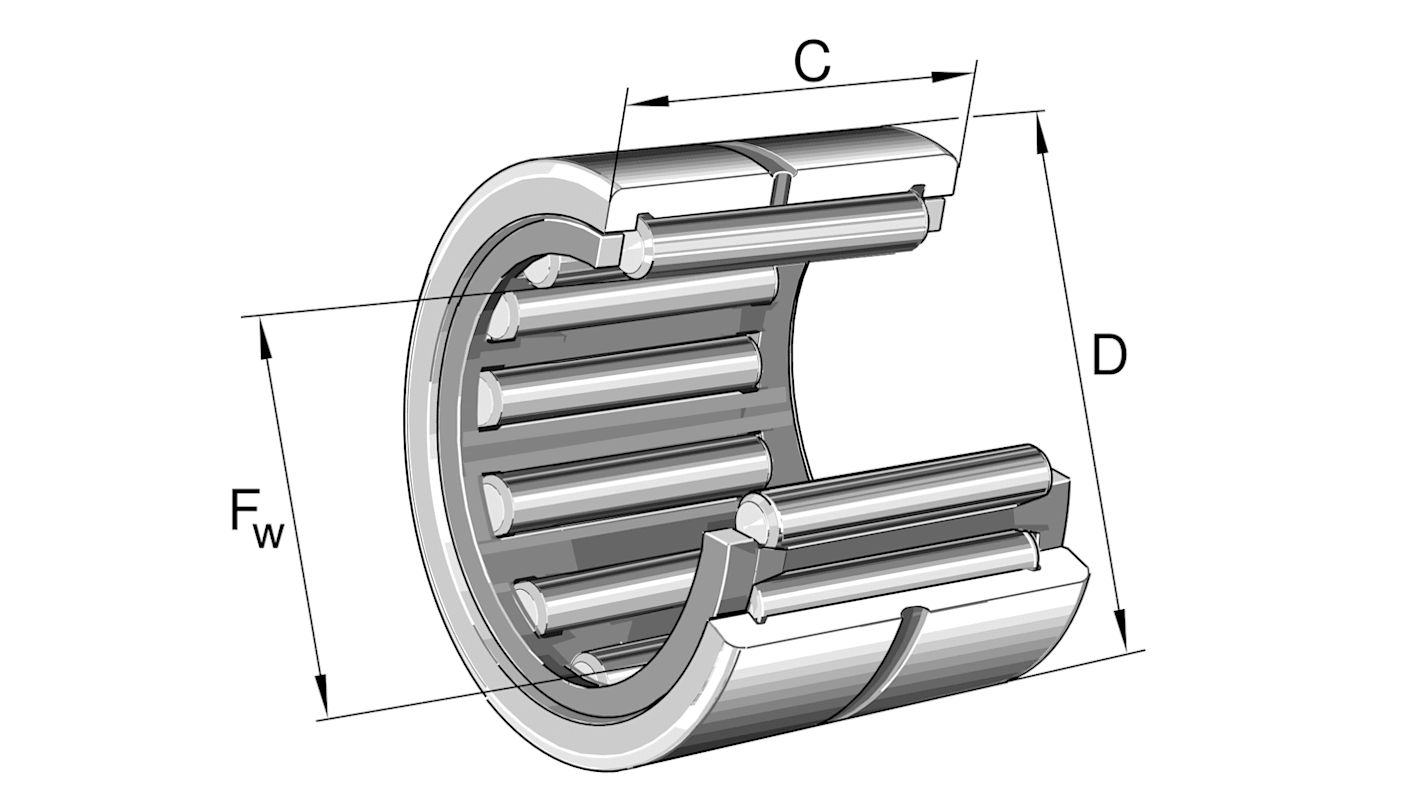

The INA needle roller bearing has bore diameter of 5 mm and outside diameter of 10 mm.
Operating temperature minimum -30 °C
Operating temperature maximum 120 °C
