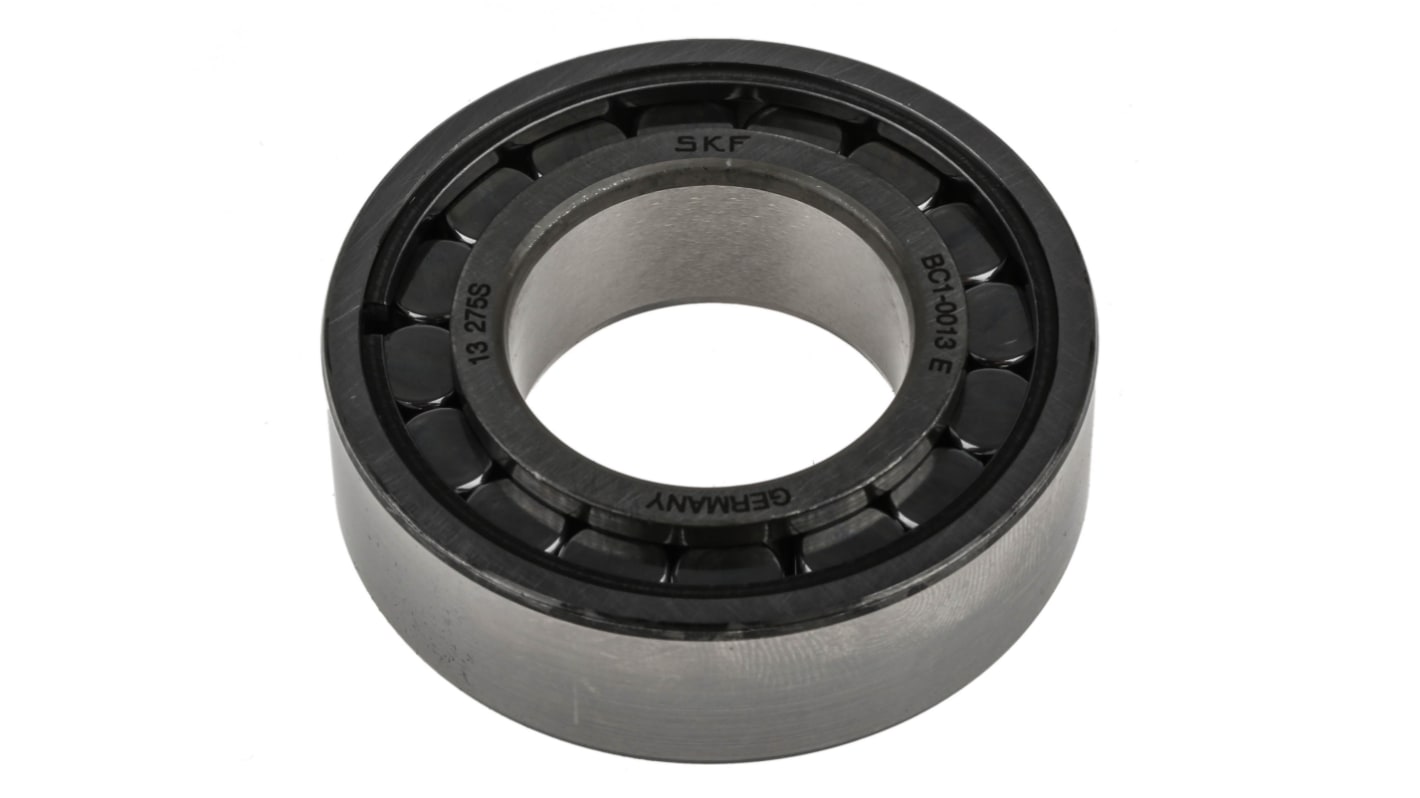

SKF BC1-0013 E 31.99 mm ID Roller Bearing, 62 mm OD
- RS Stock No.:
- 233-7167
- Mfr. Part No.:
- BC1-0013 E
- Brand:
- SKF
Subtotal (1 unit)*
£35.00
(exc. VAT)
£42.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £35.00 |
*price indicative
- RS Stock No.:
- 233-7167
- Mfr. Part No.:
- BC1-0013 E
- Brand:
- SKF
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 31.99mm | |
| Race Width | 18mm | |
| Bore Type | Cylindrical | |
| Roller Material | Steel | |
| Limiting Speed | 7000rpm | |
| Dynamic Load Rating | 52.3kN | |
| Internal Clearance | NSTD | |
| Static Load Rating | 55kN | |
| Number of Rows | 1 | |
| Outside Diameter | 62mm | |
| Standards/Approvals | No | |
| Series | BC1 | |
| Bearing Material | Steel | |
| Race Type | Flanged | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 31.99mm | ||
Race Width 18mm | ||
Bore Type Cylindrical | ||
Roller Material Steel | ||
Limiting Speed 7000rpm | ||
Dynamic Load Rating 52.3kN | ||
Internal Clearance NSTD | ||
Static Load Rating 55kN | ||
Number of Rows 1 | ||
Outside Diameter 62mm | ||
Standards/Approvals No | ||
Series BC1 | ||
Bearing Material Steel | ||
Race Type Flanged | ||
- COO (Country of Origin):
- DE
The SKF cylindrical roller thrust bearings are designed to accommodate heavy axial loads and impact loads. They must not be subjected to any radial load. The bearings are very stiff and require little axial space.
Separable design
Shaft washer, housing washer, cylindrical roller and cage thrust assembly can be mounted separately.
Extended bearing service life
To prevent stress peaks, the roller ends are relieved slightly to modify the line contact between the racew
