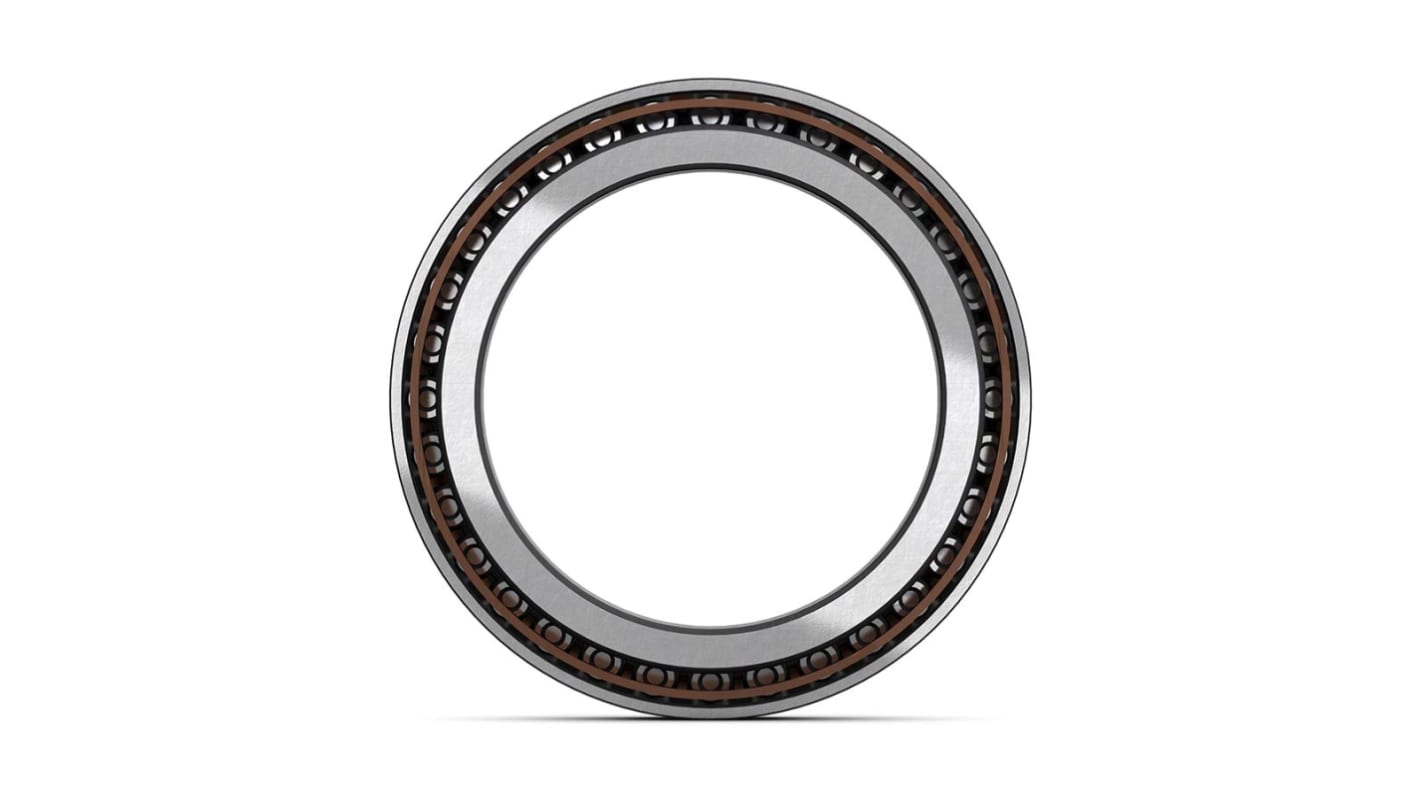

SKF 31309 J2/QCL7C 44mm I.D Taper Roller Bearing, 100mm O.D
- RS Stock No.:
- 208-0005
- Mfr. Part No.:
- 31309 J2/QCL7C
- Brand:
- SKF
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£62.96
(exc. VAT)
£75.55
(inc. VAT)
- RS Stock No.:
- 208-0005
- Mfr. Part No.:
- 31309 J2/QCL7C
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 44mm | |
Outside Diameter | 100mm | |
Roller Bearing Type | Taper | |
Race Width | 27.25mm | |
Bore Type | Parallel | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 44mm | ||
Outside Diameter 100mm | ||
Roller Bearing Type Taper | ||
Race Width 27.25mm | ||
Bore Type Parallel | ||
- COO (Country of Origin):
- DE
The SKF single row tapered roller bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The size of the contact angle, which is usually between 10° and 30°, is related to the calculation factor e the larger the value of e, the larger the contact angle.
Low friction
Enhanced operational reliability
Rigid bearing application
A single row tapered roller bearing is typically adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved.
Running-in period with reduced temperature peaks
Separable and interchangeable
The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). Furthermore, the separable components (fig. 6) are interchangeable. This facilitates mounting, dismounting and also maintenance inspection routines.
Enhanced operational reliability
Rigid bearing application
A single row tapered roller bearing is typically adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved.
Running-in period with reduced temperature peaks
Separable and interchangeable
The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). Furthermore, the separable components (fig. 6) are interchangeable. This facilitates mounting, dismounting and also maintenance inspection routines.
