SKF 23022-2RS/VT143 Taper 110 mm ID Roller Bearing, 170 mm OD
- RS Stock No.:
- 207-8552
- Mfr. Part No.:
- 23022-2RS/VT143
- Brand:
- SKF
Subtotal (1 unit)*
£521.50
(exc. VAT)
£625.80
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £521.50 |
*price indicative
- RS Stock No.:
- 207-8552
- Mfr. Part No.:
- 23022-2RS/VT143
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 110 mm | |
| Race Width | 45mm | |
| Bore Type | Taper | |
| Roller Material | Steel | |
| Dynamic Load Rating | 326kN | |
| Standards/Approvals | No | |
| Limiting Speed | 1500rpm | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 440kN | |
| Outside Diameter | 170 mm | |
| Internal Clearance | C3 | |
| Series | 23022-2RS/VT143 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 110 mm | ||
Race Width 45mm | ||
Bore Type Taper | ||
Roller Material Steel | ||
Dynamic Load Rating 326kN | ||
Standards/Approvals No | ||
Limiting Speed 1500rpm | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 440kN | ||
Outside Diameter 170 mm | ||
Internal Clearance C3 | ||
Series 23022-2RS/VT143 | ||
- COO (Country of Origin):
- GB

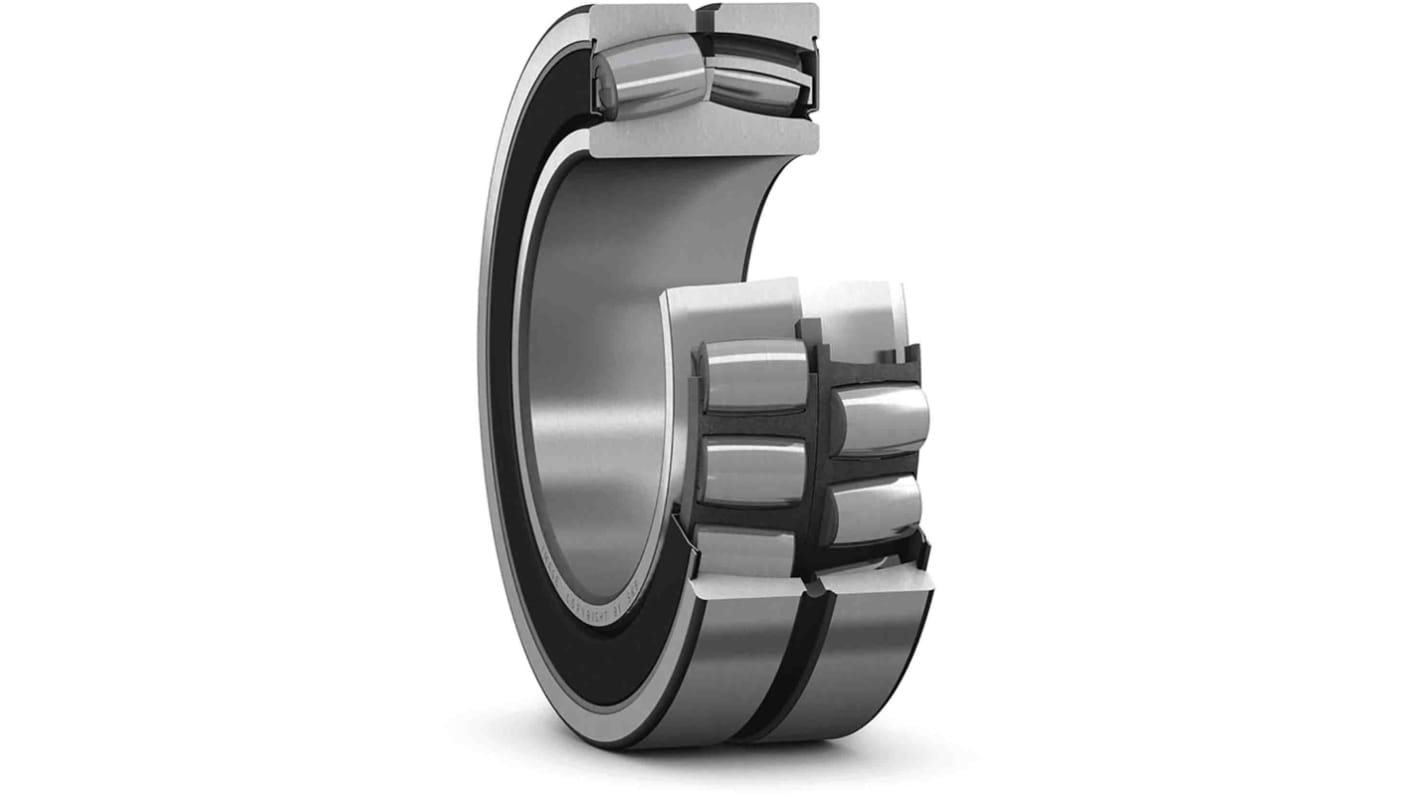

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 110 mm ID and 170 mm OD.
Bearing is of bearing steel
Cylindrical bore type
