IKO Nippon Thompson TLA59Z 5 mm ID Roller Bearing Needle, 9 mm OD
- RS Stock No.:
- 198-9342
- Mfr. Part No.:
- TLA59Z
- Brand:
- IKO Nippon Thompson
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.03
(exc. VAT)
£7.236
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 152 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £3.015 | £6.03 |
| 10 - 18 | £2.88 | £5.76 |
| 20 - 48 | £2.82 | £5.64 |
| 50 + | £2.77 | £5.54 |
*price indicative
- RS Stock No.:
- 198-9342
- Mfr. Part No.:
- TLA59Z
- Brand:
- IKO Nippon Thompson
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IKO Nippon Thompson | |
| Product Type | Roller Bearing | |
| Inside Diameter | 5 mm | |
| Race Width | 9mm | |
| Bore Type | Parallel | |
| End Type | Open | |
| Standards/Approvals | No | |
| Maximum Speed - Oil | 65000rpm | |
| Maximum Speed - Grease | 39000rpm | |
| Static Load Rating | 1.6kN | |
| Outside Diameter | 9 mm | |
| Dynamic Load Rating | 1.88kN | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand IKO Nippon Thompson | ||
Product Type Roller Bearing | ||
Inside Diameter 5 mm | ||
Race Width 9mm | ||
Bore Type Parallel | ||
End Type Open | ||
Standards/Approvals No | ||
Maximum Speed - Oil 65000rpm | ||
Maximum Speed - Grease 39000rpm | ||
Static Load Rating 1.6kN | ||
Outside Diameter 9 mm | ||
Dynamic Load Rating 1.88kN | ||
Bearing Type Needle | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP

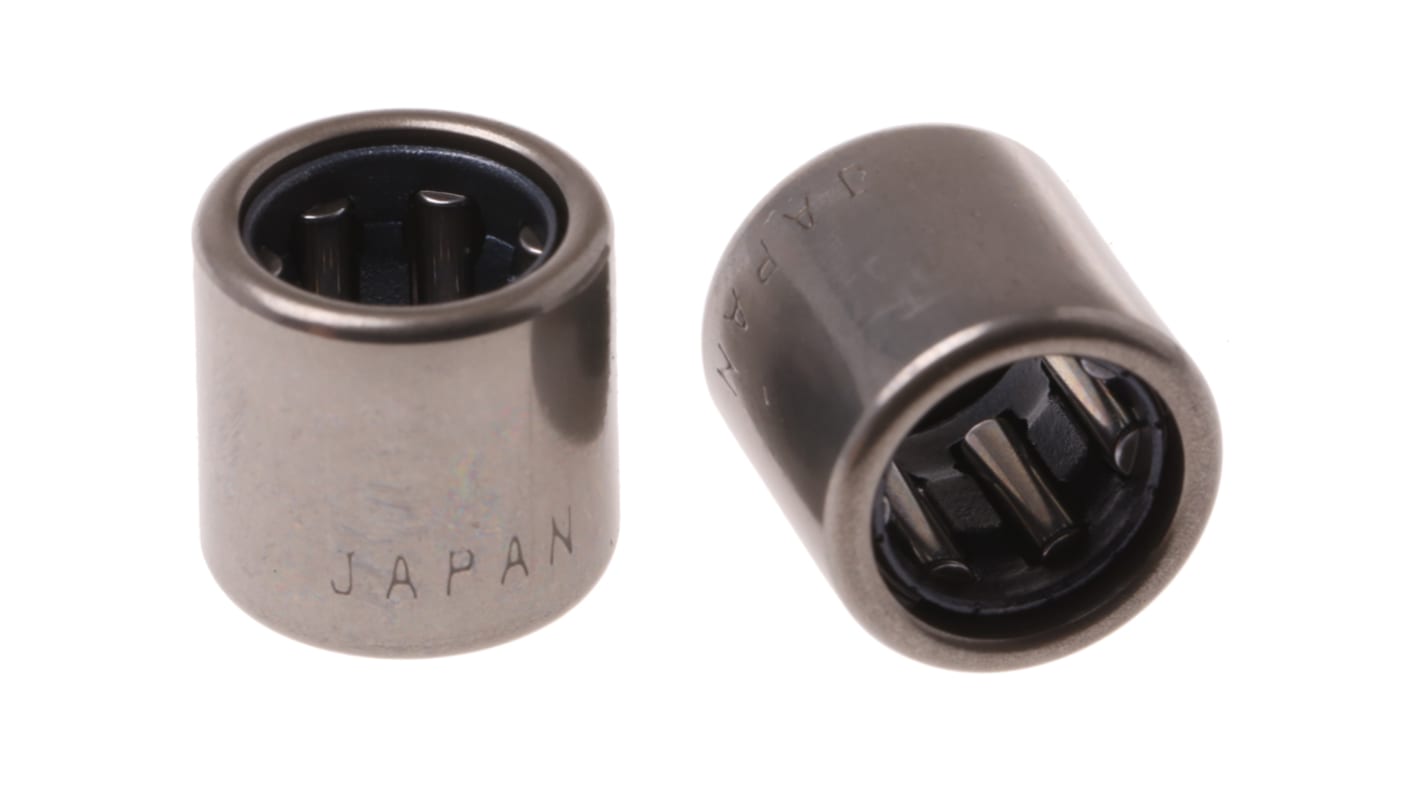

Drawn Cup Needle Roller Bearing
Small radial section height makes this bearing type invaluable in appliactions where space is at a premium
Stands very high loads
Efficient at high speeds
Large grease reservoir
