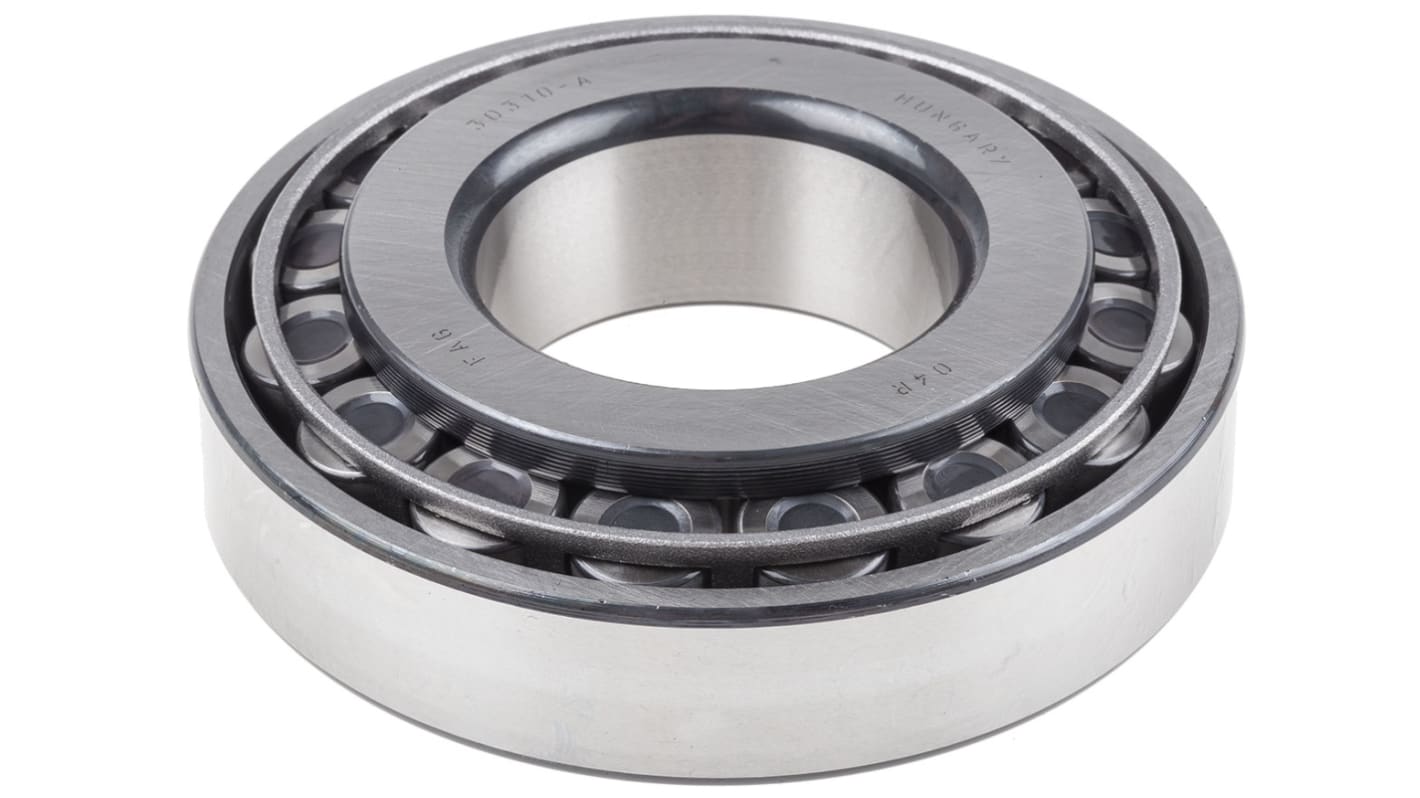

FAG 30310-A 50mm I.D Taper Roller Bearing, 110mm O.D
- RS Stock No.:
- 174-0986
- Mfr. Part No.:
- 30310-A
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£58.95
(exc. VAT)
£70.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £58.95 |
5 - 9 | £57.29 |
10 - 24 | £55.75 |
25 + | £54.28 |
*price indicative
- RS Stock No.:
- 174-0986
- Mfr. Part No.:
- 30310-A
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 50mm | |
Outside Diameter | 110mm | |
Roller Bearing Type | Taper | |
Race Width | 29.25mm | |
Bore Type | Parallel | |
Static Load Rating | 148000N | |
Cage Material | Sheet Steel | |
Number of Rows | 1 | |
Dynamic Load Rating | 130000N | |
End Type | Open | |
Reference Speed | 4700rpm | |
Limiting Speed | 6800rpm | |
Fatigue Limit Load | 17700N | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 50mm | ||
Outside Diameter 110mm | ||
Roller Bearing Type Taper | ||
Race Width 29.25mm | ||
Bore Type Parallel | ||
Static Load Rating 148000N | ||
Cage Material Sheet Steel | ||
Number of Rows 1 | ||
Dynamic Load Rating 130000N | ||
End Type Open | ||
Reference Speed 4700rpm | ||
Limiting Speed 6800rpm | ||
Fatigue Limit Load 17700N | ||
Tapered roller bearings comprise solid inner and outer rings with tapered raceways and tapered rollers in a window cage. Open bearings are not self-retaining. As a result, the inner ring with the rollers and the cage can be fitted separately from the outer ring. Metric and inch size bearings are available. Designs with a K in the designation have inch dimensions. For new designs, however, bearings in metric sizes should always be used in preference.
Radial and axial load capacity
Contact angle
Compensation of angular misalignments
Matched bearings
Integral tapered roller bearings
No setting of axial internal clearance required
Sealing
Lubrication
Operating temperature
Cages
Suffixes
Contact angle
Compensation of angular misalignments
Matched bearings
Integral tapered roller bearings
No setting of axial internal clearance required
Sealing
Lubrication
Operating temperature
Cages
Suffixes
