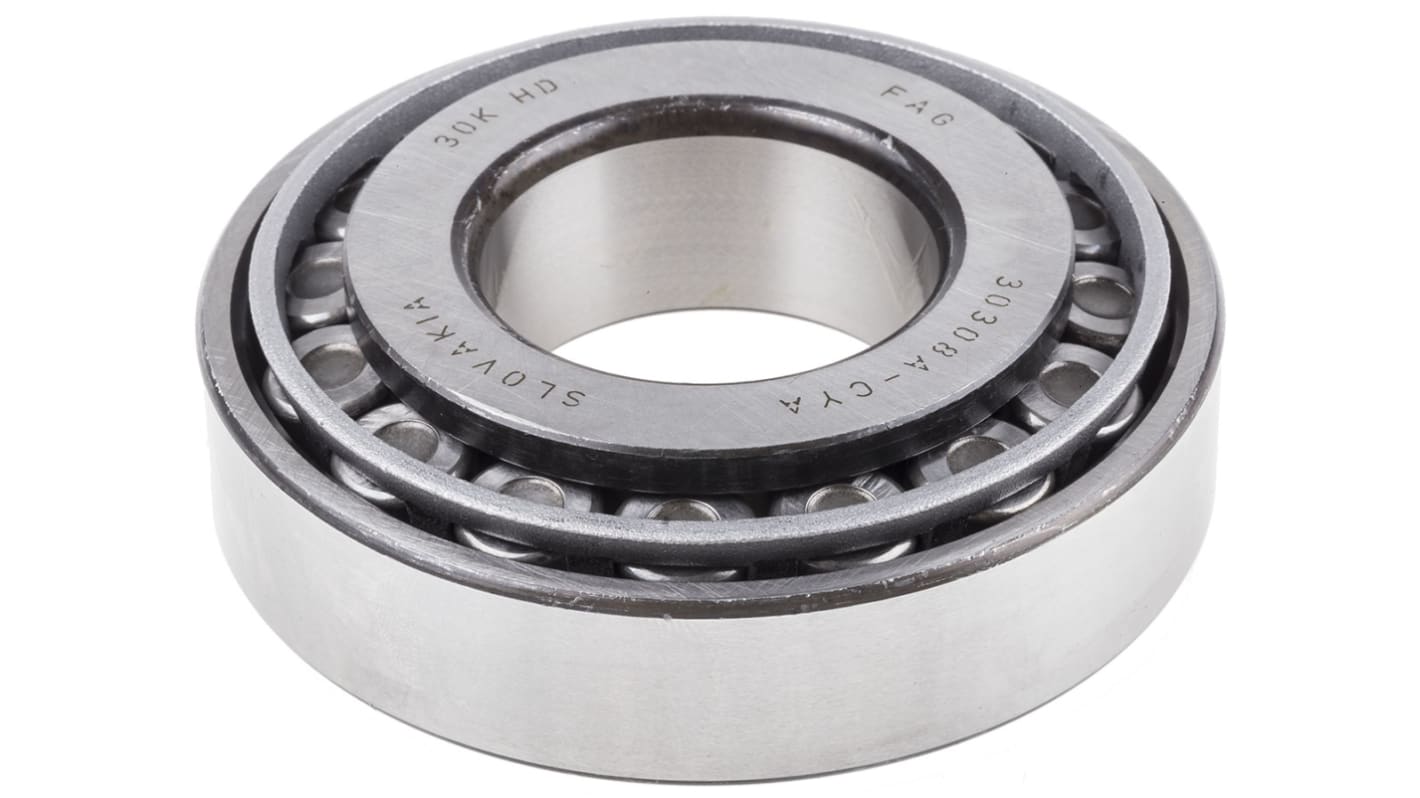

FAG 30308-A Taper 40 mm ID Roller Bearing, 90 mm OD
- RS Stock No.:
- 174-0984
- Mfr. Part No.:
- 30308-A
- Brand:
- FAG
Subtotal (1 unit)*
£39.55
(exc. VAT)
£47.46
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 14 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.55 |
*price indicative
- RS Stock No.:
- 174-0984
- Mfr. Part No.:
- 30308-A
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 40 mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Series | 303 | |
| Standards/Approvals | No | |
| Bearing Dynamic Load Rating | 91 KN | |
| Static Load Rating | 102kN | |
| Cone Width | 25.25mm | |
| Limiting Speed | 8500rpm | |
| End Type | Open | |
| Outside Diameter | 90 mm | |
| Bearing Type | Taper | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 40 mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Series 303 | ||
Standards/Approvals No | ||
Bearing Dynamic Load Rating 91 KN | ||
Static Load Rating 102kN | ||
Cone Width 25.25mm | ||
Limiting Speed 8500rpm | ||
End Type Open | ||
Outside Diameter 90 mm | ||
Bearing Type Taper | ||
Tapered roller bearings comprise solid inner and outer rings with tapered raceways and tapered rollers in a window cage. Open bearings are not self-retaining. As a result, the inner ring with the rollers and the cage can be fitted separately from the outer ring. Metric and inch size bearings are available. Designs with a K in the designation have inch dimensions. For new designs, however, bearings in metric sizes should always be used in preference.
Radial and axial load capacity
Contact angle
Compensation of angular misalignments
Matched bearings
Integral tapered roller bearings
No setting of axial internal clearance required
Sealing
Lubrication
Operating temperature
Cages
Suffixes
