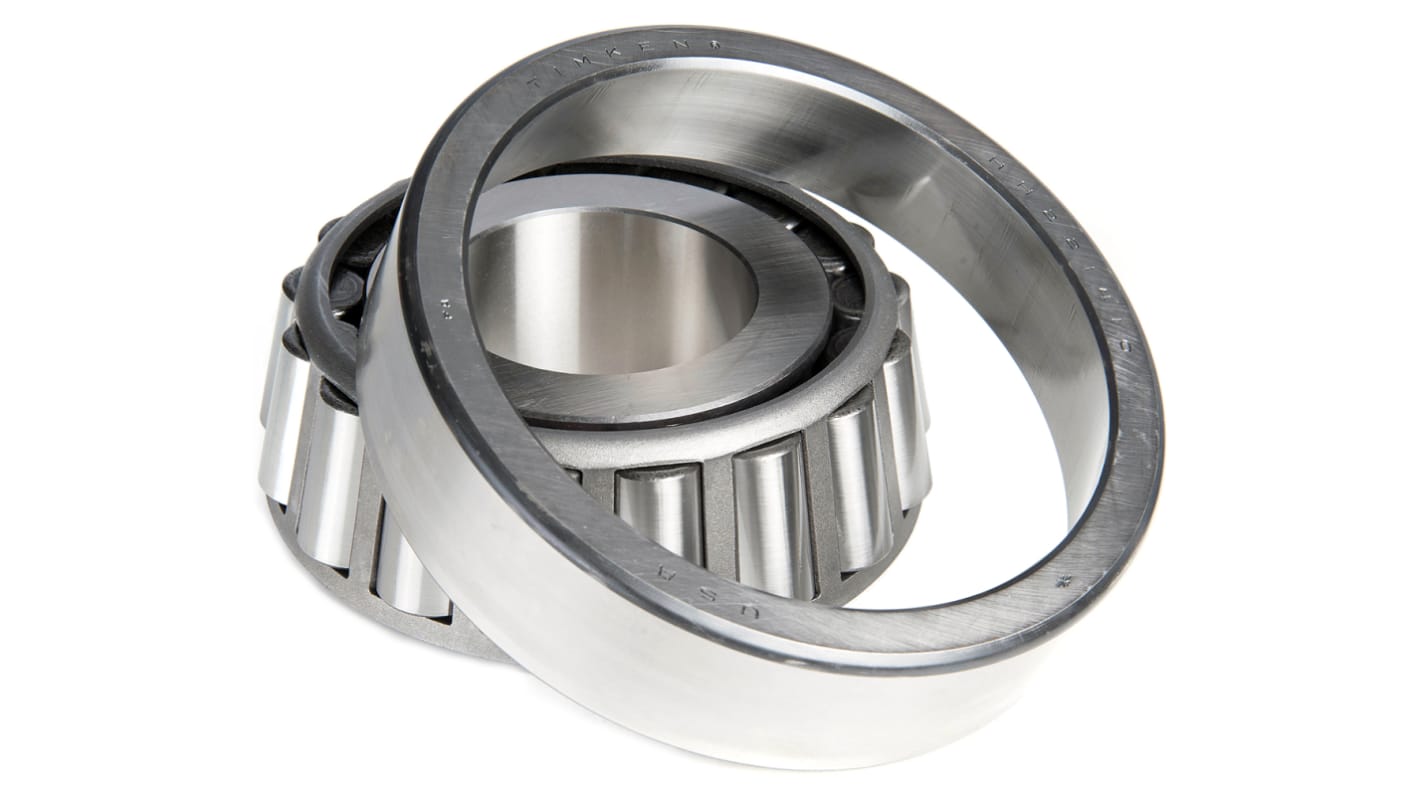

Timken HM88542/HM88510 31.75mm I.D Taper Roller Bearing, 73.02mm O.D
- RS Stock No.:
- 134-7484
- Mfr. Part No.:
- HM88542/HM88510
- Brand:
- Timken
Bulk discount available
Subtotal (1 unit)*
£38.81
(exc. VAT)
£46.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £38.81 |
5 - 9 | £37.27 |
10 - 24 | £36.47 |
25 + | £35.71 |
*price indicative
- RS Stock No.:
- 134-7484
- Mfr. Part No.:
- HM88542/HM88510
- Brand:
- Timken
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Timken | |
Inside Diameter | 31.75mm | |
Outside Diameter | 73.02mm | |
Roller Bearing Type | Taper | |
Race Width | 23.02mm | |
Bore Type | Parallel | |
Material | Metal | |
Static Load Rating | 111000N | |
Cage Material | Steel | |
Number of Rows | 1 | |
Roller Material | Steel | |
Dynamic Load Rating | 103000 (1 Million Radial) N, 25000 (90 Million Thrust) N, 26700 (90 Million Radial) N | |
End Type | Sealed | |
Select all | ||
---|---|---|
Brand Timken | ||
Inside Diameter 31.75mm | ||
Outside Diameter 73.02mm | ||
Roller Bearing Type Taper | ||
Race Width 23.02mm | ||
Bore Type Parallel | ||
Material Metal | ||
Static Load Rating 111000N | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Roller Material Steel | ||
Dynamic Load Rating 103000 (1 Million Radial) N, 25000 (90 Million Thrust) N, 26700 (90 Million Radial) N | ||
End Type Sealed | ||
Tapered Roller Bearings - TS (Tapered Single) Imperial/Metric
These bearings are the most basic and most widely used type of tapered roller bearings. They consist of two main separable parts, the cone (inner ring) assembly and the cup (outer ring). They are typically mounted in opposing pairs on a shaft.
Features and Benefits
Imperial / Metric
One piece stamped steel cage retains rollers on the cone
Inner diameter range 7.937 mm to 863.600 mm
Outer diameter range 31.991 mm to 1060.000 mm
Single cone and cup
Product Application Information
Typical applications include, vehicle front wheels, differential and pinion configurations, conveyor rolls, machine tool spindles and trailer wheels.
