NSK 22211EAKE4C3 Straight 55 mm ID Spherical Roller Bearing, 100 mm OD
- RS Stock No.:
- 643-954
- Mfr. Part No.:
- 22211EAKE4C3
- Brand:
- NSK
Subtotal (1 unit)*
£89.87
(exc. VAT)
£107.84
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.87 |
*price indicative
- RS Stock No.:
- 643-954
- Mfr. Part No.:
- 22211EAKE4C3
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 55mm | |
| Race Width | 25mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Number of Rows | 2 | |
| Bearing Material | Steel | |
| Maximum Speed - Grease | 5300rpm | |
| Maximum Speed - Oil | 6700rpm | |
| Static Load Rating | 144000N | |
| Series | 222 | |
| Standards/Approvals | ISO 15312 | |
| End Type | Open | |
| Dynamic Load Rating | 149000N | |
| Outside Diameter | 100mm | |
| Internal Clearance | C3 | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 55mm | ||
Race Width 25mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Number of Rows 2 | ||
Bearing Material Steel | ||
Maximum Speed - Grease 5300rpm | ||
Maximum Speed - Oil 6700rpm | ||
Static Load Rating 144000N | ||
Series 222 | ||
Standards/Approvals ISO 15312 | ||
End Type Open | ||
Dynamic Load Rating 149000N | ||
Outside Diameter 100mm | ||
Internal Clearance C3 | ||
Non Compliant
- COO (Country of Origin):
- JP

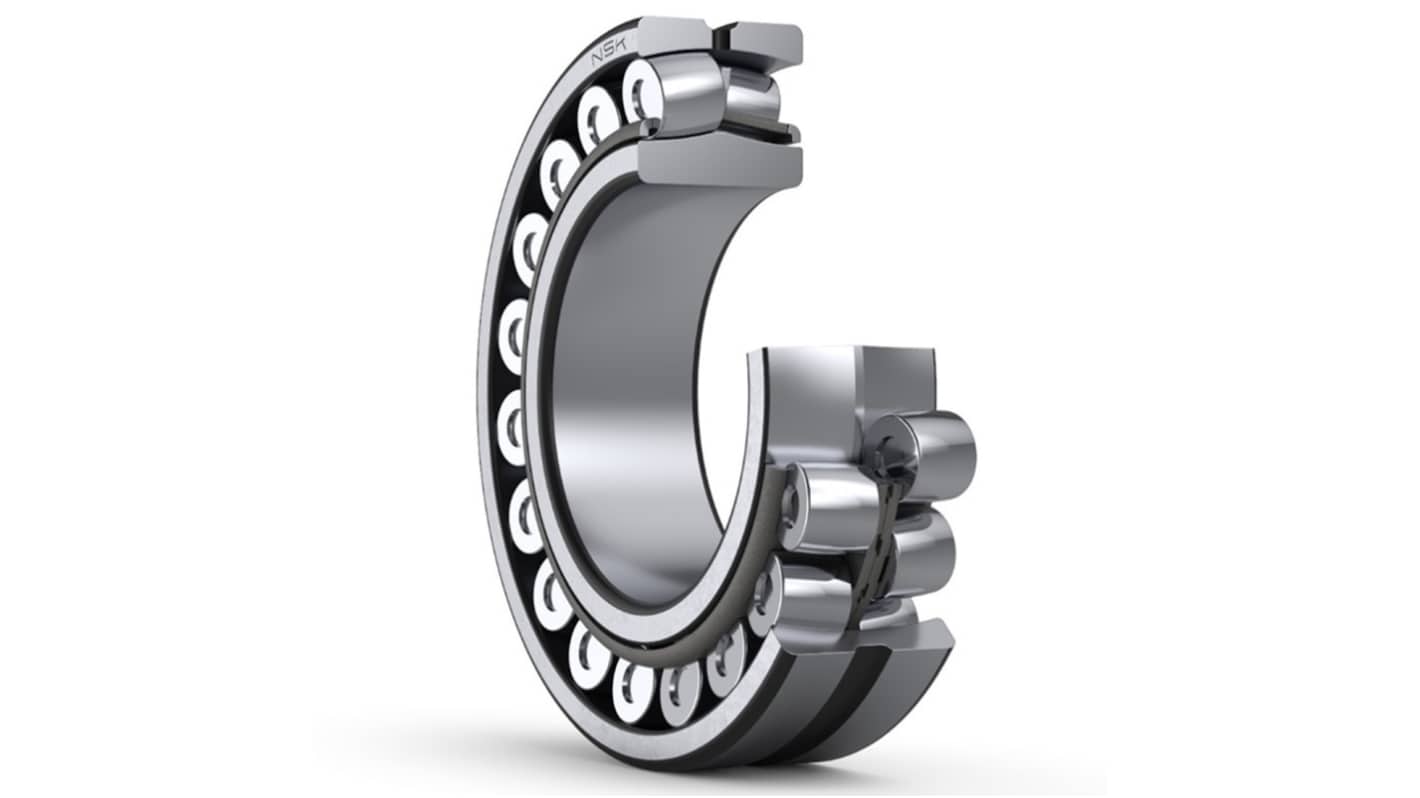

The NSK Spherical roller bearing with a 55 mm bore, 100 mm outer diameter, and 25 mm width, built for high radial loads and moderate axial loads in compact industrial assemblies. Its steel cage and open design support efficient lubrication via grooves and holes, while the C3 clearance accommodates thermal expansion and shaft misalignment. It ensures consistent performance across grease, oil-bath, and forced oil circulation systems.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
