NSK 22310EAE4 Straight 50 mm ID Spherical Roller Bearing, 110 mm OD
- RS Stock No.:
- 643-749
- Mfr. Part No.:
- 22310EAE4
- Brand:
- NSK
Subtotal (1 unit)*
£119.34
(exc. VAT)
£143.21
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £119.34 |
*price indicative
- RS Stock No.:
- 643-749
- Mfr. Part No.:
- 22310EAE4
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 50mm | |
| Race Width | 40mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Internal Clearance | C0 | |
| Maximum Speed - Oil | 5300rpm | |
| Series | 223 | |
| Standards/Approvals | ISO 15312 | |
| End Type | Open | |
| Dynamic Load Rating | 246000N | |
| Outside Diameter | 110mm | |
| Static Load Rating | 234000N | |
| Bearing Material | Steel | |
| Number of Rows | 2 | |
| Maximum Speed - Grease | 4300rpm | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 50mm | ||
Race Width 40mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Internal Clearance C0 | ||
Maximum Speed - Oil 5300rpm | ||
Series 223 | ||
Standards/Approvals ISO 15312 | ||
End Type Open | ||
Dynamic Load Rating 246000N | ||
Outside Diameter 110mm | ||
Static Load Rating 234000N | ||
Bearing Material Steel | ||
Number of Rows 2 | ||
Maximum Speed - Grease 4300rpm | ||
Non Compliant
- COO (Country of Origin):
- JP

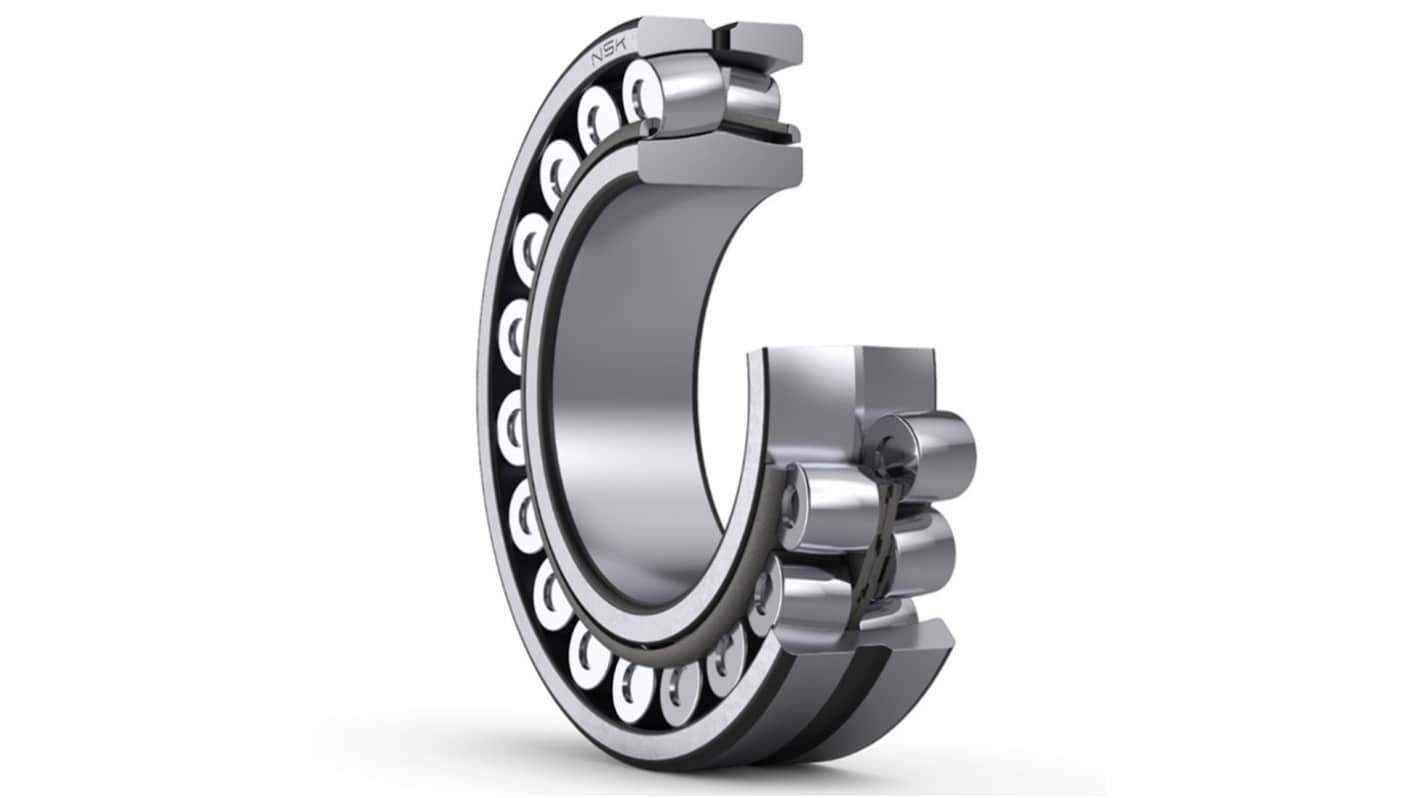

The NSK Spherical roller bearing with a 50 mm bore, 110 mm outer diameter, and 40 mm width, designed to support high radial loads and moderate axial loads in industrial machinery. Its steel cage and open design feature lubrication grooves and holes for efficient grease or oil circulation. With standard internal clearance and self-aligning roller geometry, it ensures stable performance under misalignment and demanding operating conditions.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
