NTN 23134EAKW33 Tapered 170 mm ID Spherical Roller Bearing, 280 mm OD
- RS Stock No.:
- 640-291
- Mfr. Part No.:
- 23134EAKW33
- Brand:
- NTN
Subtotal (1 unit)*
£1,242.74
(exc. VAT)
£1,491.29
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,242.74 |
*price indicative
- RS Stock No.:
- 640-291
- Mfr. Part No.:
- 23134EAKW33
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 170 mm | |
| Race Width | 88mm | |
| Bore Type | Tapered | |
| Cage Material | Steel | |
| End Type | Open | |
| Standards/Approvals | No | |
| Maximum Speed - Oil | 1800rpm | |
| Maximum Speed - Grease | 1400rpm | |
| Dynamic Load Rating | 1270kN | |
| Outside Diameter | 280 mm | |
| Internal Clearance | CN | |
| Series | 231 | |
| Limiting Speed | 2300rpm | |
| Static Load Rating | 1700kN | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 170 mm | ||
Race Width 88mm | ||
Bore Type Tapered | ||
Cage Material Steel | ||
End Type Open | ||
Standards/Approvals No | ||
Maximum Speed - Oil 1800rpm | ||
Maximum Speed - Grease 1400rpm | ||
Dynamic Load Rating 1270kN | ||
Outside Diameter 280 mm | ||
Internal Clearance CN | ||
Series 231 | ||
Limiting Speed 2300rpm | ||
Static Load Rating 1700kN | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
Non Compliant
- COO (Country of Origin):
- IT

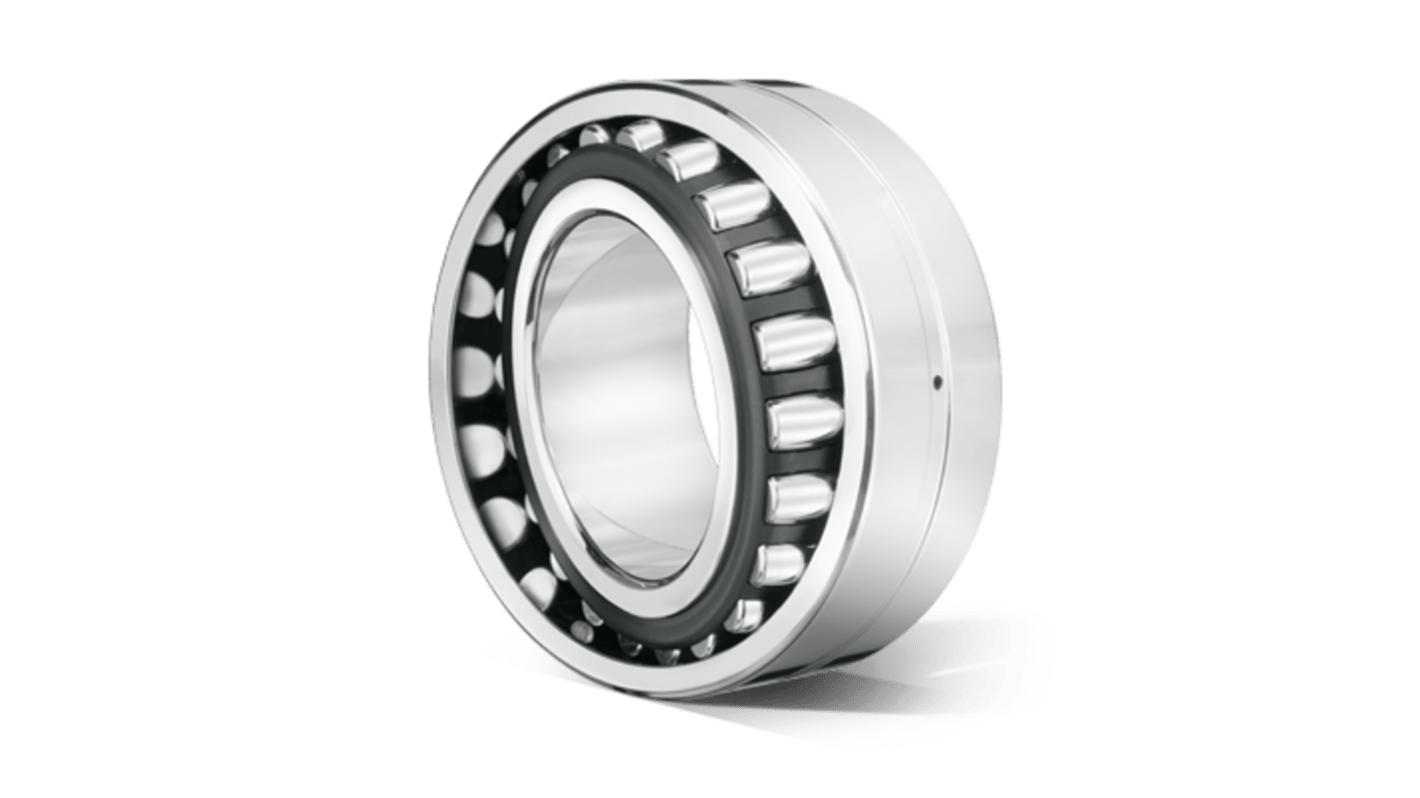

The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
