SKF NA 6914 70 mm ID Needle Roller Bearing, 100 mm OD
- RS Stock No.:
- 587-532
- Mfr. Part No.:
- NA 6914
- Brand:
- SKF
Subtotal (1 pack of 10 units)*
£1,851.61
(exc. VAT)
£2,221.93
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £1,851.61 | £185.161 |
*price indicative
- RS Stock No.:
- 587-532
- Mfr. Part No.:
- NA 6914
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 70mm | |
| Race Width | 54mm | |
| Cage Material | Sheet Metal | |
| Standards/Approvals | No | |
| Bearing Material | Bearing Steel | |
| Dynamic Load Rating | 146kN | |
| Outside Diameter | 100mm | |
| Static Load Rating | 285kN | |
| Limiting Speed | 5600rpm | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 70mm | ||
Race Width 54mm | ||
Cage Material Sheet Metal | ||
Standards/Approvals No | ||
Bearing Material Bearing Steel | ||
Dynamic Load Rating 146kN | ||
Outside Diameter 100mm | ||
Static Load Rating 285kN | ||
Limiting Speed 5600rpm | ||
Number of Rows 2 | ||
Internal Clearance CN | ||

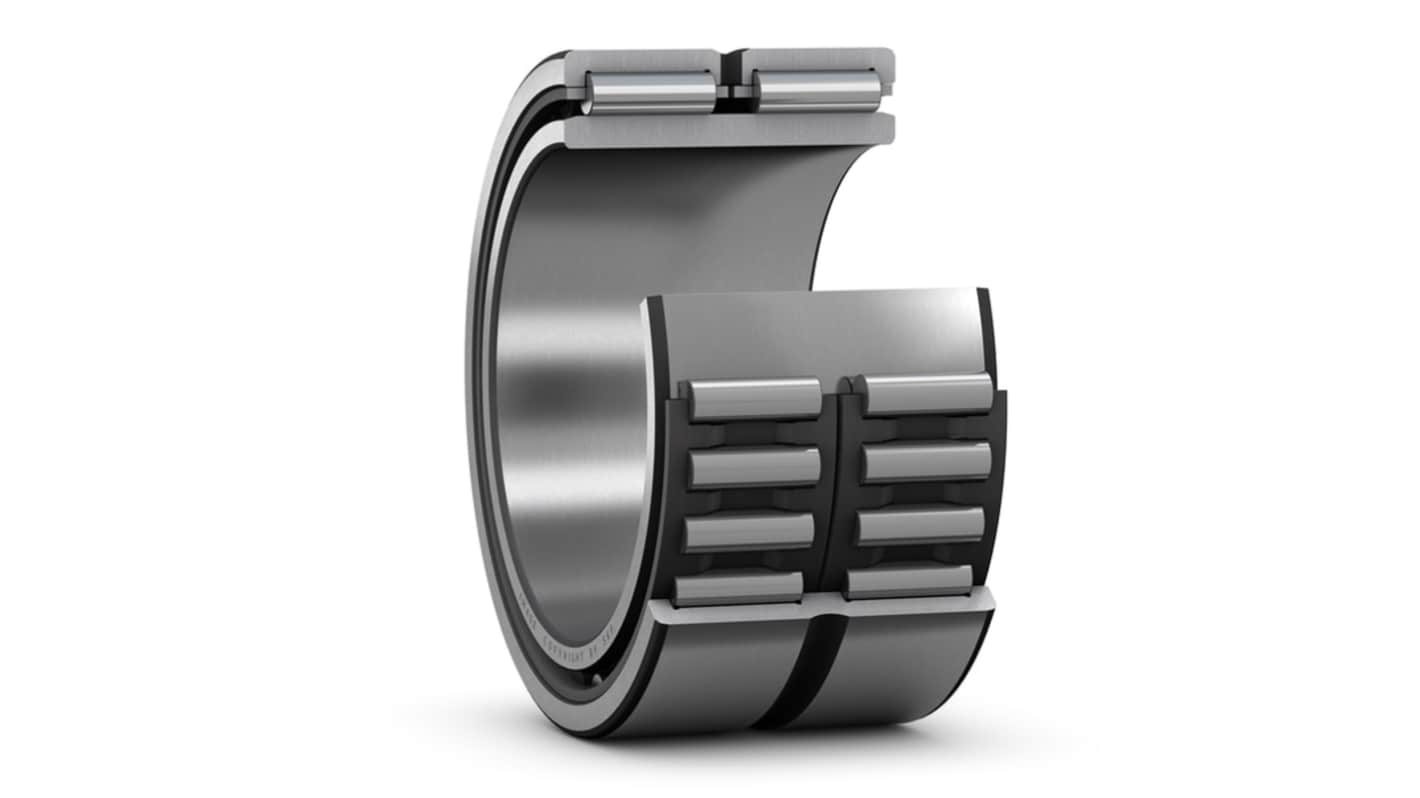

The SKF Double row needle roller bearing with machined rings, flanges, and an inner ring is designed for high load carrying capacity using cylindrical rollers that are small in diameter but long in length. The outer ring is equipped with flanges to guide the roller and cage assemblies and includes provisions for relubrication, enhancing performance and durability. The inner and outer rings can be assembled separately, allowing for interference fits on both the shaft and housing and enabling convenient maintenance and inspection.
High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions
Separable design
