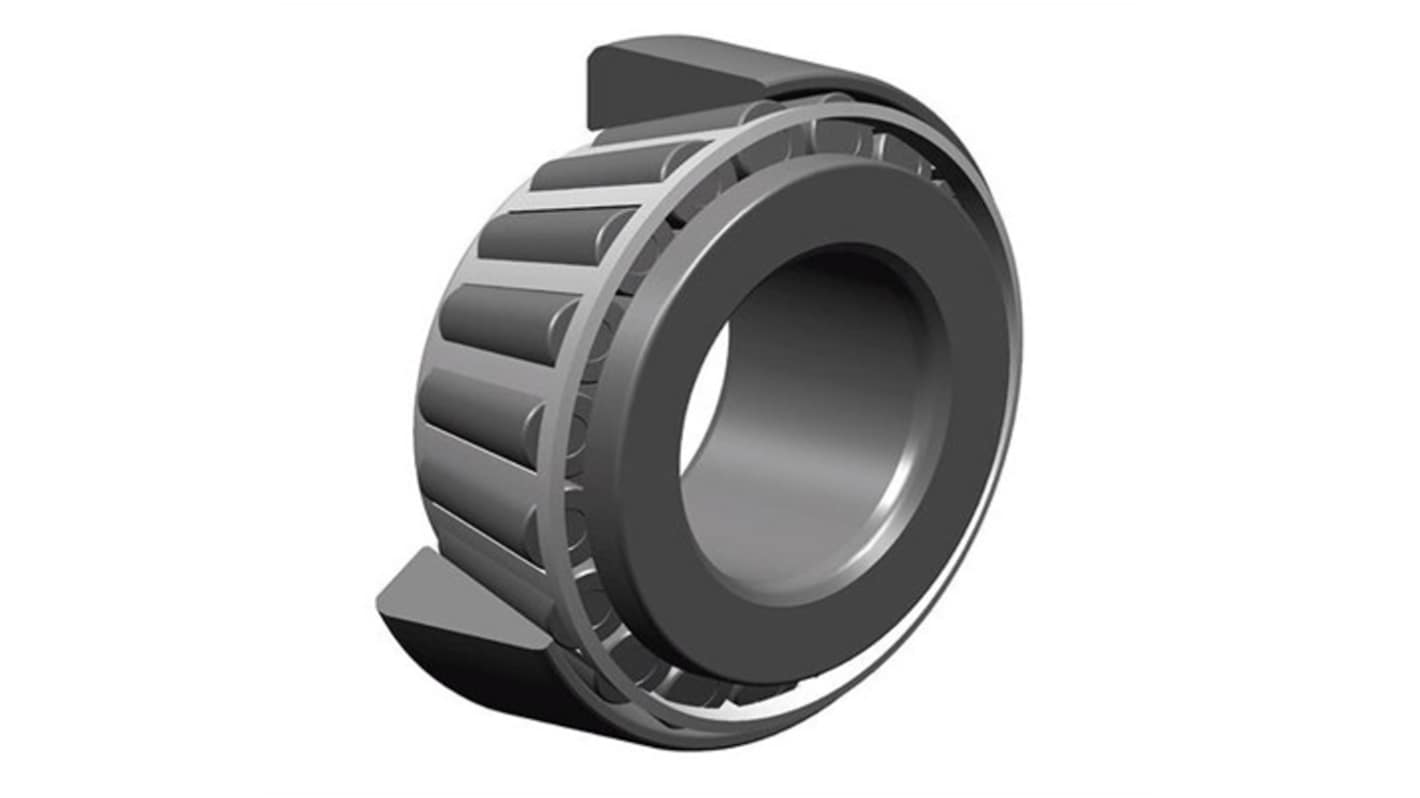

SNR 32018A Taper Roller 90 mm I.D Roller Bearing, 140 mm O.D
- RS Stock No.:
- 576-666
- Mfr. Part No.:
- 32018A
- Brand:
- SNR
Subtotal (1 unit)*
£88.61
(exc. VAT)
£106.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.61 |
*price indicative
- RS Stock No.:
- 576-666
- Mfr. Part No.:
- 32018A
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Roller Bearing | |
| Inside Diameter | 90 mm | |
| Cage Material | Pressed Steel | |
| Number of Rows | 1 | |
| Standards/Approvals | ISO 355 | |
| Outside Diameter | 140 mm | |
| Bearing Dynamic Load Rating | 179 KN | |
| Cup Width | 24mm | |
| Static Load Rating | 271kN | |
| Cone Width | 32mm | |
| Series | 32018A | |
| Limiting Speed | 4900rpm | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Roller Bearing | ||
Inside Diameter 90 mm | ||
Cage Material Pressed Steel | ||
Number of Rows 1 | ||
Standards/Approvals ISO 355 | ||
Outside Diameter 140 mm | ||
Bearing Dynamic Load Rating 179 KN | ||
Cup Width 24mm | ||
Static Load Rating 271kN | ||
Cone Width 32mm | ||
Series 32018A | ||
Limiting Speed 4900rpm | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- CN
The SNR Tapered Roller Bearing withstands high radial loads and supports axial loads in one direction. The type of roller bearing is particularly suitable for applications such as rolling mills, rear axles, wheels of road vehicles and agricultural equipment. The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.
Pressed steel cage
ISO 355 and JIS B 1512 standard
Axial adjustment enables a high reduction in clearance
