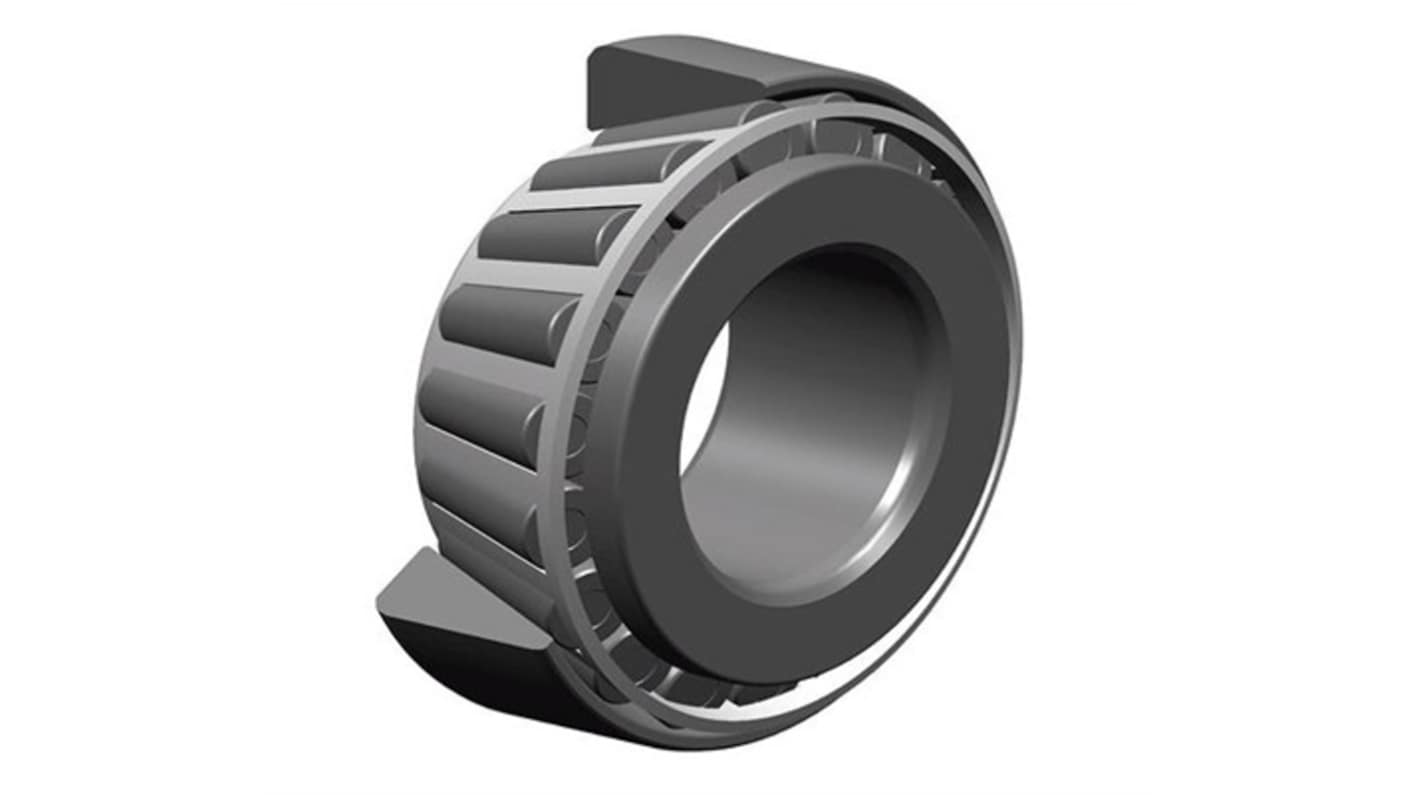

SNR 31306A Taper Roller 30 mm ID Roller Bearing, 72 mm OD
- RS Stock No.:
- 576-606
- Mfr. Part No.:
- 31306A
- Brand:
- SNR
Subtotal (1 unit)*
£35.41
(exc. VAT)
£42.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £35.41 |
*price indicative
- RS Stock No.:
- 576-606
- Mfr. Part No.:
- 31306A
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Roller Bearing | |
| Inside Diameter | 30mm | |
| Cage Material | Pressed Steel | |
| Cup Width | 14mm | |
| Static Load Rating | 59.8kN | |
| Outside Diameter | 72mm | |
| Cone Width | 19mm | |
| Number of Rows | 1 | |
| Limiting Speed | 10000rpm | |
| Series | 31306A | |
| Standards/Approvals | ISO 355 | |
| Bearing Dynamic Load Rating | 57.2kN | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Roller Bearing | ||
Inside Diameter 30mm | ||
Cage Material Pressed Steel | ||
Cup Width 14mm | ||
Static Load Rating 59.8kN | ||
Outside Diameter 72mm | ||
Cone Width 19mm | ||
Number of Rows 1 | ||
Limiting Speed 10000rpm | ||
Series 31306A | ||
Standards/Approvals ISO 355 | ||
Bearing Dynamic Load Rating 57.2kN | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- CN
The SNR Tapered Roller Bearing withstands high radial loads and supports axial loads in one direction. The type of roller bearing is particularly suitable for applications such as rolling mills, rear axles, wheels of road vehicles and agricultural equipment. The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.
Pressed steel cage
ISO 355 and JIS B 1512 standard
Axial adjustment enables a high reduction in clearance
