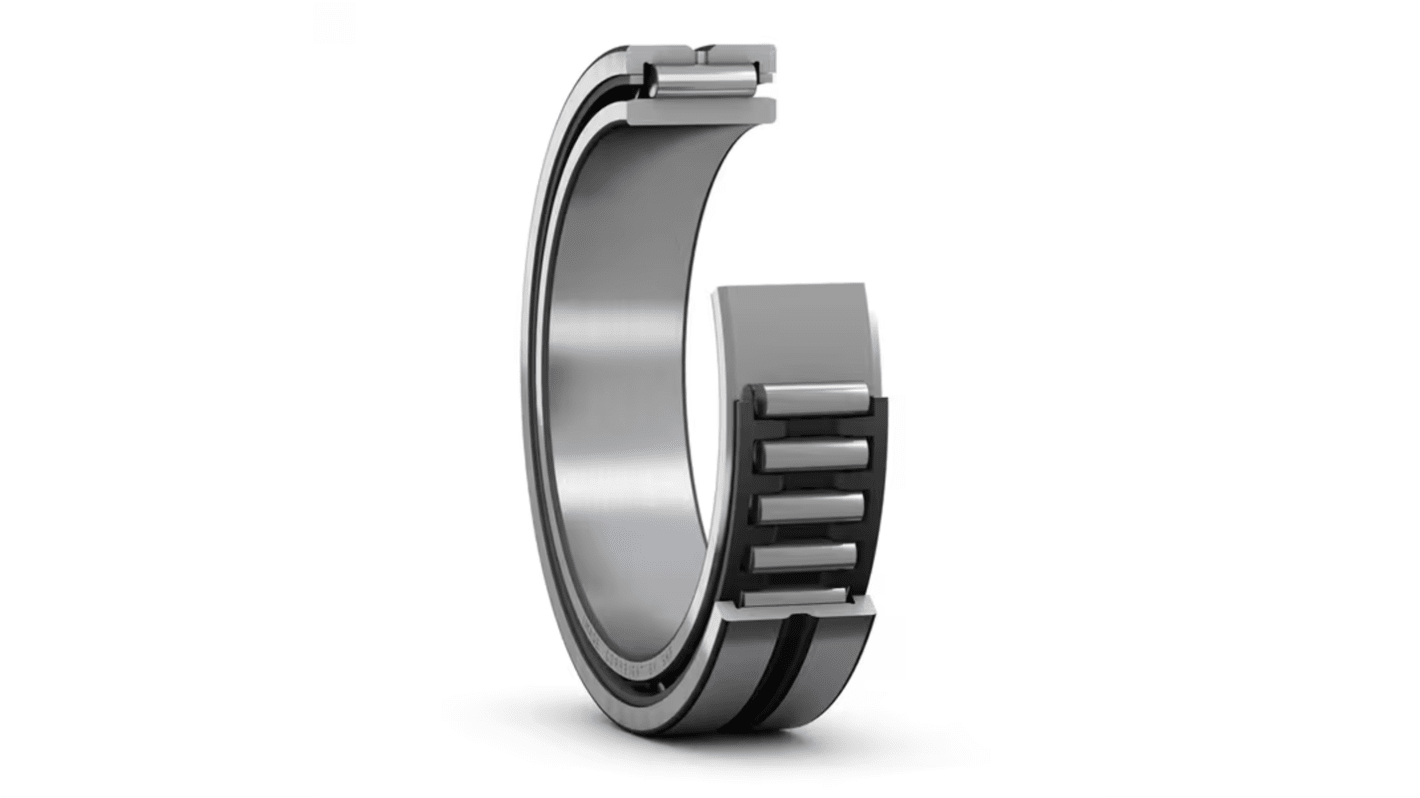

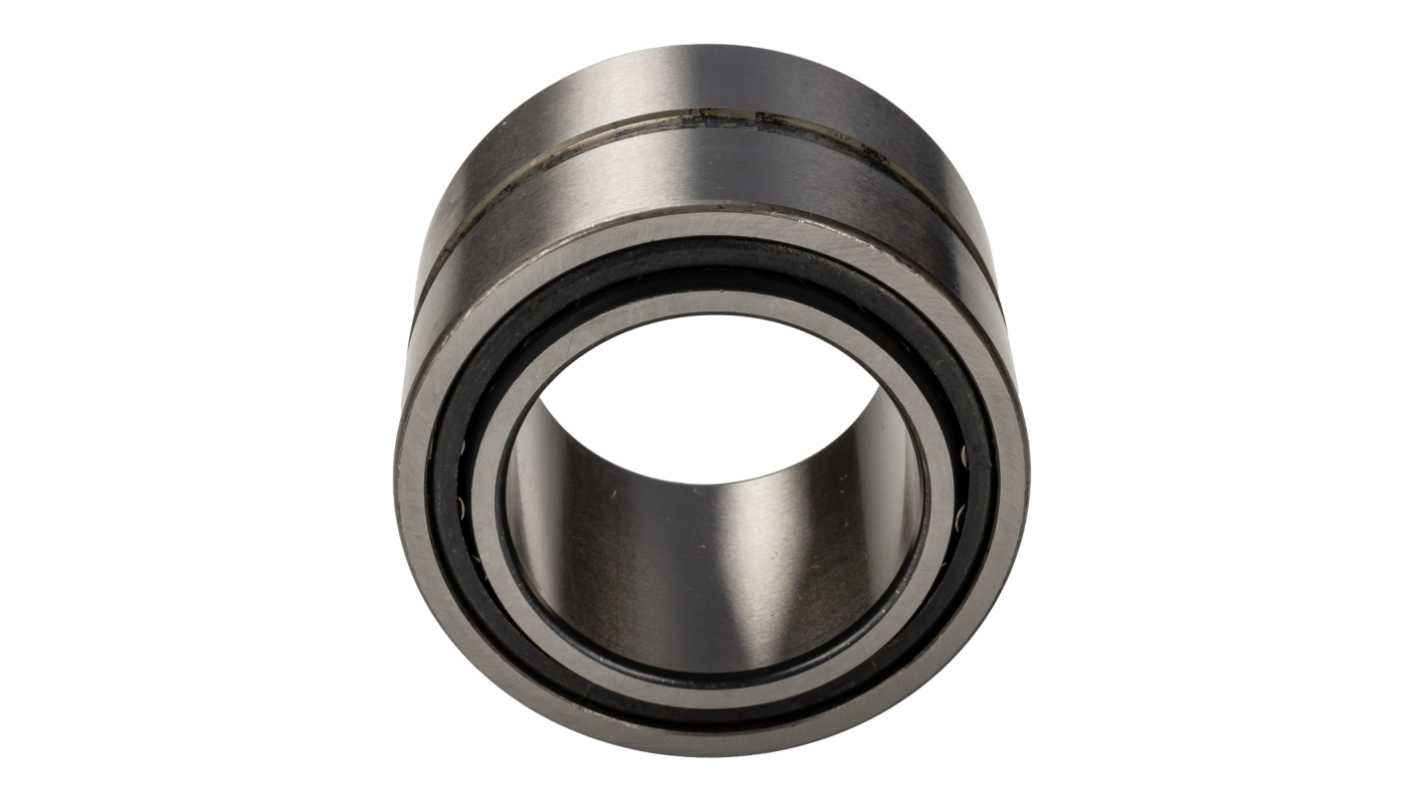

SKF NKI 10/16 10mm I.D Needle Roller Bearing, 22mm O.D
- RS Stock No.:
- 514-130
- Mfr. Part No.:
- NKI 10/16
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£23.26
(exc. VAT)
£27.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £23.26 |
5 - 9 | £22.33 |
10 - 24 | £21.87 |
25 + | £21.38 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£14.65
(exc. VAT)
£17.58
(inc. VAT)
- RS Stock No.:
- 514-130
- Mfr. Part No.:
- NKI 10/16
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 10mm | |
Outside Diameter | 22mm | |
Roller Bearing Type | Needle | |
Race Width | 16mm | |
Bore Type | Parallel | |
Material | Metal | |
Static Load Rating | 12.5kN | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Roller Material | Carbon Chromium Steel | |
Dynamic Load Rating | 10.2kN | |
End Type | Open | |
Reference Speed | 24000rpm | |
Limiting Speed | 28000rpm | |
Fatigue Limit Load | 1.53kN | |
Maximum Speed - Grease | 17000 rpm | |
Maximum Speed - Oil | 26000 rpm | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 10mm | ||
Outside Diameter 22mm | ||
Roller Bearing Type Needle | ||
Race Width 16mm | ||
Bore Type Parallel | ||
Material Metal | ||
Static Load Rating 12.5kN | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Roller Material Carbon Chromium Steel | ||
Dynamic Load Rating 10.2kN | ||
End Type Open | ||
Reference Speed 24000rpm | ||
Limiting Speed 28000rpm | ||
Fatigue Limit Load 1.53kN | ||
Maximum Speed - Grease 17000 rpm | ||
Maximum Speed - Oil 26000 rpm | ||
RoHS Status: Exempt


SKF Roller Bearing, 10mm Inside Diameter, 22mm Outside Diameter - NKI 10/16
This SKF roller bearing is a single-row needle bearing with a 10mm inside diameter and a 22mm outside diameter. Designed for applications with high radial loads and limited radial space, its 16mm race width and open ends make it easy to install in various machinery. The bearing's construction from high-quality carbon chromium steel ensures durability and a long operational life.
Features & Benefits
• With a dynamic load rating of 10.2 kN and a static load rating of 12.5 kN, it effectively handles significant radial forces
• The needle roller type allows for a compact design, making it ideal for applications with limited space
• Constructed from carbon chromium steel with a metal cage, the bearing offers robust performance and resistance to wear
• It has a limiting speed of 28,000 rpm and a maximum speed of 26,000 rpm with oil lubrication, suitable for high-speed rotational applications
• Its parallel bore type and open end design allow for flexible integration into different machine assemblies
• The needle roller type allows for a compact design, making it ideal for applications with limited space
• Constructed from carbon chromium steel with a metal cage, the bearing offers robust performance and resistance to wear
• It has a limiting speed of 28,000 rpm and a maximum speed of 26,000 rpm with oil lubrication, suitable for high-speed rotational applications
• Its parallel bore type and open end design allow for flexible integration into different machine assemblies
Applications
• Used in transmissions, engines, and gearboxes where high radial loads and compact designs are necessary
• Found in pumps, compressors, and various manufacturing equipment
• Integrated into drills and other power tools to support rotational components
• Utilised in robotic arms and joints to handle precise movements under load
• Found in pumps, compressors, and various manufacturing equipment
• Integrated into drills and other power tools to support rotational components
• Utilised in robotic arms and joints to handle precise movements under load
What is the difference between static and dynamic load rating?
Static load rating (12.5 kN) refers to the maximum load a non-rotating bearing can withstand without permanent deformation. Dynamic load rating (10.2 kN) is the load a rotating bearing can handle for a specific number of revolutions without fatigue damage.
Why is there a difference between maximum speed with grease vs. oil?
Grease provides a thicker, more stable lubricant film but can generate more heat at higher speeds. Oil is more fluid, which allows it to dissipate heat more effectively, enabling the bearing to operate at a higher maximum speed (26,000 rpm).
What does the fatigue limit load indicate?
The fatigue limit load (1.53 kN) is the maximum load that the bearing can withstand indefinitely without experiencing material fatigue, assuming proper lubrication and installation.
