- RS Stock No.:
- 514-035
- Mfr. Part No.:
- HK 0408
- Brand:
- SKF
76 In stock - FREE next working day delivery available
108 available from Europe for delivery within 1 working day(s).
Added
Price Each
£3.96
(exc. VAT)
£4.75
(inc. VAT)
Units | Per unit |
1 - 4 | £3.96 |
5 - 9 | £3.80 |
10 - 24 | £3.73 |
25 + | £3.64 |
- RS Stock No.:
- 514-035
- Mfr. Part No.:
- HK 0408
- Brand:
- SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

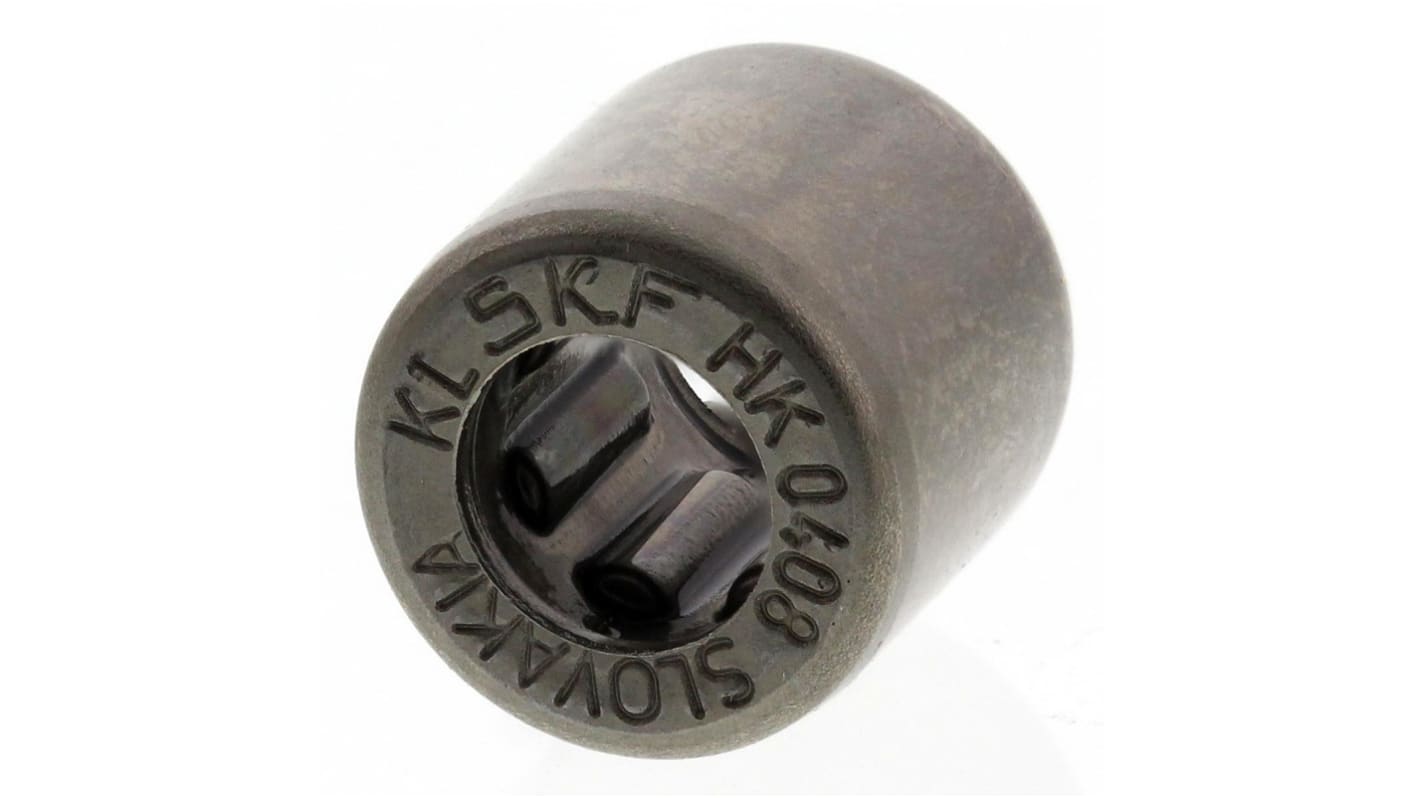

SKF Roller Bearing, Needle Bearing Type, 4mm ID, 8mm OD - HK 0408
Keep your operation running like clockwork with this needle roller bearing from SKF. It's a drawn cup type, meaning it has a deep-drawn, thin-walled outer ring. This makes it a compact solution for setups where space is at a premium. The cage of the bearing, which is the part that holds the cylindrical rolling elements, is made from sturdy sheet steel. That means you get a high-strength and lightweight solution that keeps everything rolling reliably.
Features & Benefits
• Needle roller bearing type minimises friction against rotating surfaces
• Large number of rollers provide high load-carrying capacity
• Bearing steel material resists dents, reducing the need for maintenance and replacement
• Maximum speed of 26,000rpm with grease and 38,000rpm with oil for high-speed operations
• Light weight of 2g puts minimal strain on your system
• Large number of rollers provide high load-carrying capacity
• Bearing steel material resists dents, reducing the need for maintenance and replacement
• Maximum speed of 26,000rpm with grease and 38,000rpm with oil for high-speed operations
• Light weight of 2g puts minimal strain on your system
Applications
• Plant machinery
• Automotive industry
• Engineering facilities
• Automotive industry
• Engineering facilities
What are the static and dynamic loads of this bearing?
The bearing has a static load rating of 1.37kN and a dynamic load rating of 1.76kN, making it suitable for handling relatively low loads at high speeds.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 4mm |
Outside Diameter | 8mm |
Roller Bearing Type | Needle |
Race Width | 8mm |
Bore Type | Parallel |
Material | Metal |
Static Load Rating | 1.37kN |
Cage Material | Sheet Steel |
Number of Rows | 1 |
Roller Material | Steel |
Dynamic Load Rating | 1.76kN |
End Type | Open |
Reference Speed | 22000rpm |
Limiting Speed | 26000rpm |
Maximum Speed - Oil | 38000rpm |
Maximum Speed - Grease | 26000rpm |
Fatigue Limit Load | 140N |
