Bulk discount available
Subtotal (1 unit)*
£17.13
(exc. VAT)
£20.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £17.13 |
| 5 - 9 | £16.45 |
| 10 - 24 | £16.10 |
| 25 + | £15.78 |
*price indicative
- RS Stock No.:
- 506-208
- Mfr. Part No.:
- 30304
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 20mm | |
| Outside Diameter | 52mm | |
| Roller Bearing Type | Taper | |
| Race Width | 16.25mm | |
| Bore Type | Tapered | |
| Material | Metal | |
| Static Load Rating | 32.5kN | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Roller Material | Steel | |
| Dynamic Load Rating | 39kN | |
| End Type | Open | |
| Reference Speed | 12000rpm | |
| Limiting Speed | 14000rpm | |
| Fatigue Limit Load | 3.6kN | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 52mm | ||
Roller Bearing Type Taper | ||
Race Width 16.25mm | ||
Bore Type Tapered | ||
Material Metal | ||
Static Load Rating 32.5kN | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Roller Material Steel | ||
Dynamic Load Rating 39kN | ||
End Type Open | ||
Reference Speed 12000rpm | ||
Limiting Speed 14000rpm | ||
Fatigue Limit Load 3.6kN | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

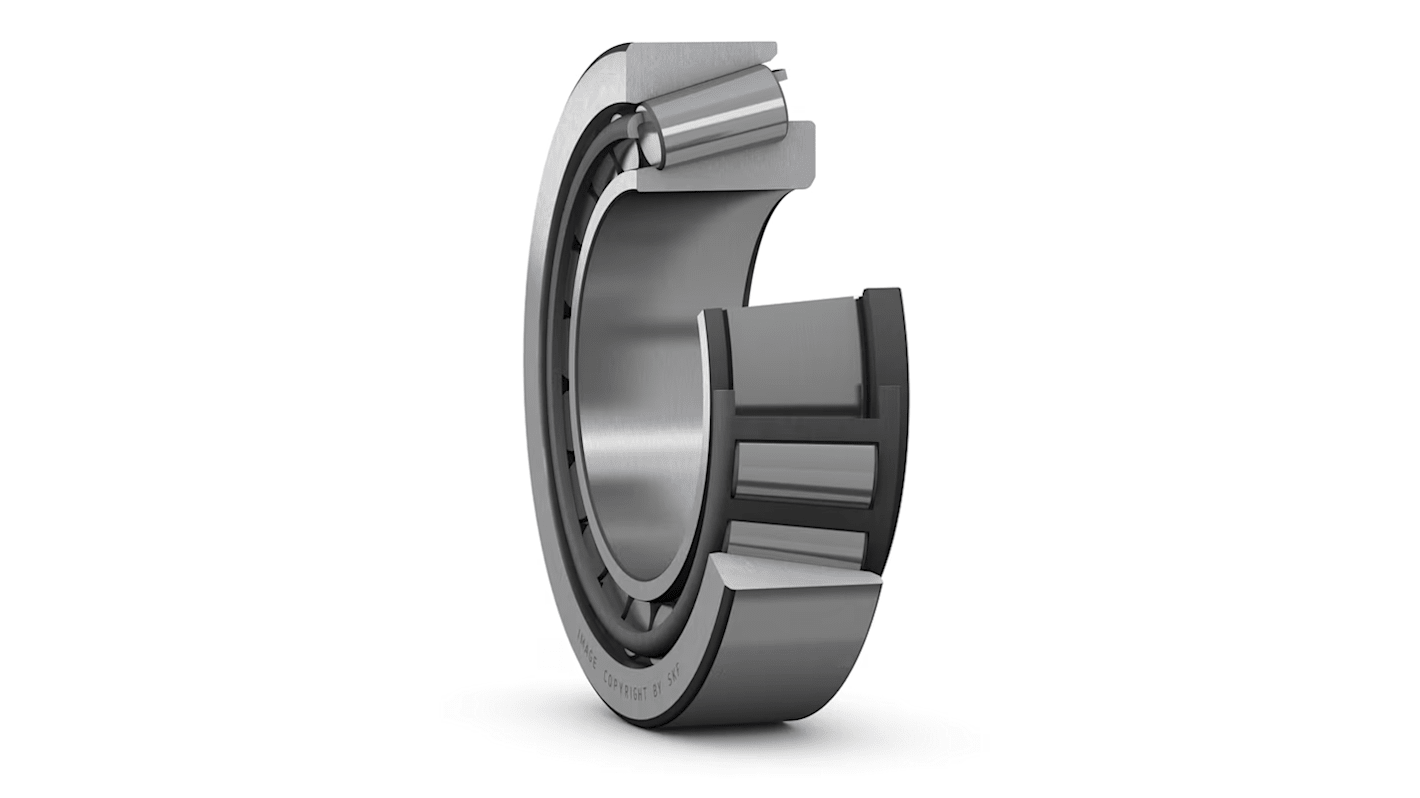

SKF Roller Bearing, Tapered Type, Single Row, 20mm ID, 52mm OD - 30304
Looking for a tough spinner that handles axial and radial loads simultaneously? Install this tapered roller bearing from SKF. Thanks to its 41.9kN dynamic load rating, it has the muscle to reliably turn the shafts in your demanding industrial applications. It also creates frictionless rotation to limit wear for a longer lifespan. The inner and outer rings are mounted separately, so you can carry out maintenance and change components without breaking a sweat.
Features & Benefits
• Rust-resistant sheet steel cage is a reliable option for damp or humid settings
• Compact unit with an OD of just 52mm takes up little installation space
• Limiting speed of 14,000r/min is ideal for use with heavy-duty systems
• Compact unit with an OD of just 52mm takes up little installation space
• Limiting speed of 14,000r/min is ideal for use with heavy-duty systems
Applications
• Automotive industry
• Aviation conveyors
• Trains and trams
• Automated factory operations
• Aviation conveyors
• Trains and trams
• Automated factory operations
What's the difference between a ball and roller bearing?
They have similar designs, but a roller bearing features cylindrical rolling elements instead of balls.
Can I mount this roller bearing with others to strengthen a setup?
Yes, you can mount this single-row roller bearing against another and apply a preload to create a robust assembly.
