SKF 22220EK Tapered 1:12 100 mm I.D Roller Bearing, 180 mm O.D
- RS Stock No.:
- 506-157
- Mfr. Part No.:
- 22220EK
- Brand:
- SKF
Subtotal (1 unit)*
£354.67
(exc. VAT)
£425.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £354.67 |
*price indicative
- RS Stock No.:
- 506-157
- Mfr. Part No.:
- 22220EK
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 100 mm | |
| Race Width | 46mm | |
| Bore Type | Tapered 1:12 | |
| Cage Material | Sheet Metal | |
| Limiting Speed | 4500rpm | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 433kN | |
| Series | 22220 EK | |
| Outside Diameter | 180 mm | |
| Static Load Rating | 490kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 100 mm | ||
Race Width 46mm | ||
Bore Type Tapered 1:12 | ||
Cage Material Sheet Metal | ||
Limiting Speed 4500rpm | ||
Standards/Approvals No | ||
Dynamic Load Rating 433kN | ||
Series 22220 EK | ||
Outside Diameter 180 mm | ||
Static Load Rating 490kN | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SE

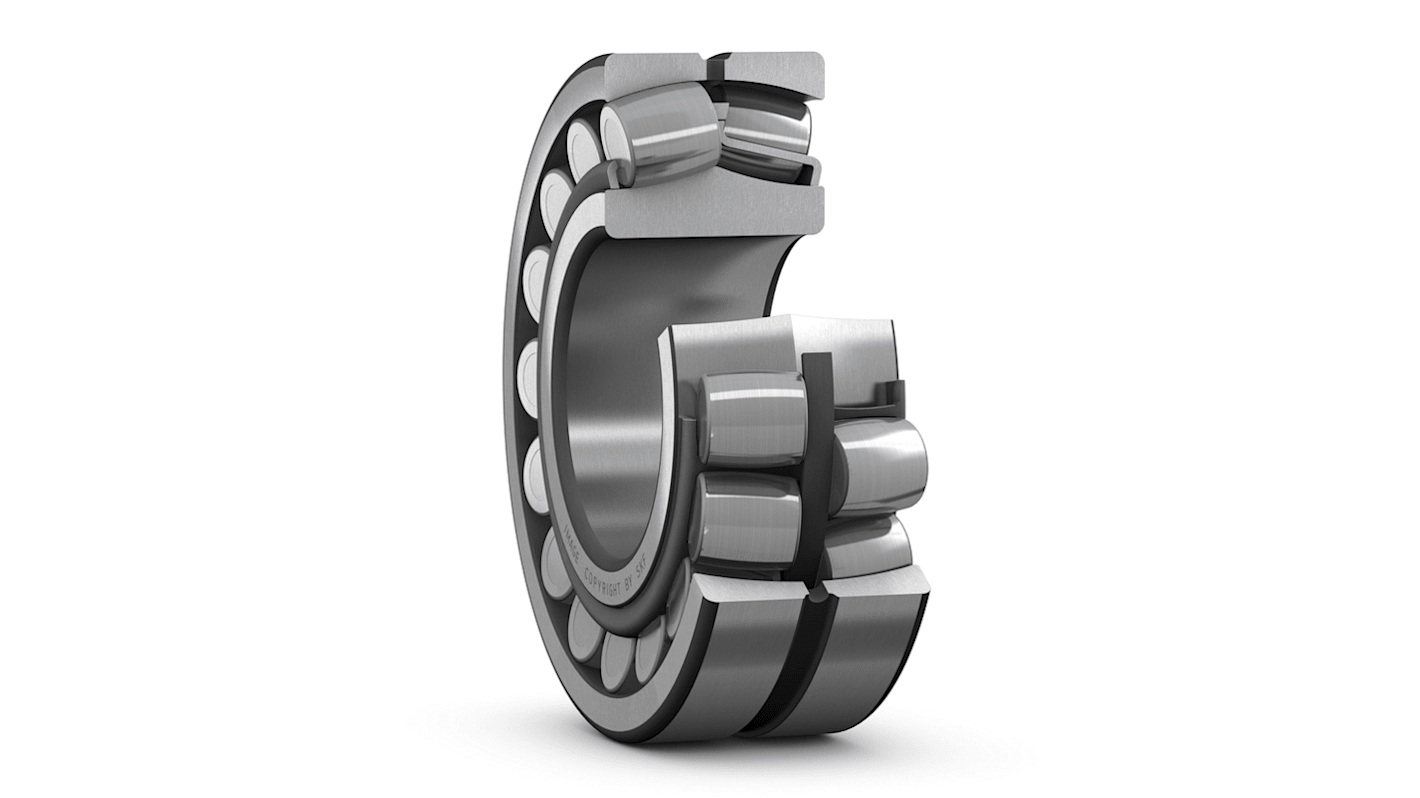

SKF Roller Bearing, Spherical, 100mm ID, 180mm OD - 22220EK
Choose this spherical roller bearing from SKF to support heavy loads running in both directions. Its self-aligning design handles misalignment between the shaft and the housing without causing friction or suffering damage. As the unit carries a dynamic load of up to 433kN and a static load up to 490kN at a maximum of 3400rpm, it's ideal for managing very heavy loads and high speeds. This bearing can be used in a modular system, so it lets you create a bespoke setup to suit your needs.
• Open type design means you can grease the bearing without dismantling it
• Steel cage material is corrosion-resistant and withstands the wear and impact experienced in demanding industrial settings
Applications
• Aviation industry
• Automotive production
• Manufacturing facilities
What's the difference between spherical roller bearings and cylindrical roller bearings?
Spherical roller bearings have two rings on their inner raceway to accommodate thrust loads. Cylindrical roller bearings handle limited thrust and are better suited to heavy radial loads at high speeds.
When would I need a tapered bore bearing?
A tapered bore bearing like this one reduces friction, which keeps heat to a minimum. It's an ideal choice when you need to transfer loads evenly while rolling.
