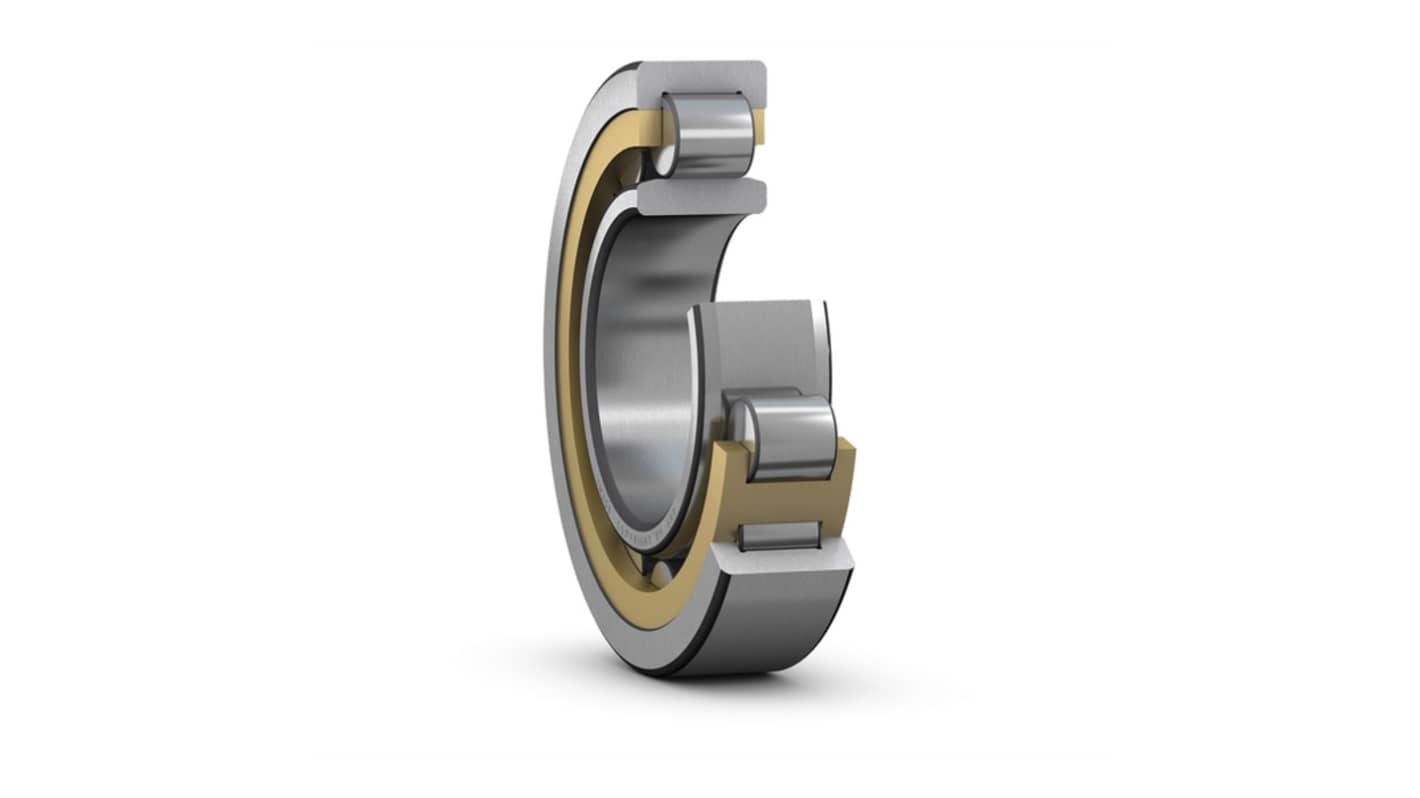

SKF NU 2326 ECML 130 mm ID Cylindrical Roller Bearing, 280 mm OD
- RS Stock No.:
- 465-247
- Mfr. Part No.:
- NU 2326 ECML
- Brand:
- SKF
Subtotal (1 unit)*
£2,500.02
(exc. VAT)
£3,000.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,500.02 |
*price indicative
- RS Stock No.:
- 465-247
- Mfr. Part No.:
- NU 2326 ECML
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 130 mm | |
| Race Width | 93mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Static Load Rating | 1250kN | |
| Internal Clearance | CN | |
| Series | NU | |
| Number of Rows | 1 | |
| Limiting Speed | 4500rpm | |
| Dynamic Load Rating | 1060kN | |
| Standards/Approvals | RoHS | |
| Outside Diameter | 280 mm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 130 mm | ||
Race Width 93mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Static Load Rating 1250kN | ||
Internal Clearance CN | ||
Series NU | ||
Number of Rows 1 | ||
Limiting Speed 4500rpm | ||
Dynamic Load Rating 1060kN | ||
Standards/Approvals RoHS | ||
Outside Diameter 280 mm | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
