SKF NU 2324 ECML 120 mm ID Cylindrical Roller Bearing, 260 mm OD
- RS Stock No.:
- 463-857
- Mfr. Part No.:
- NU 2324 ECML
- Brand:
- SKF
Subtotal (1 unit)*
£2,374.79
(exc. VAT)
£2,849.75
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,374.79 |
*price indicative
- RS Stock No.:
- 463-857
- Mfr. Part No.:
- NU 2324 ECML
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 120mm | |
| Race Width | 86mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Standards/Approvals | RoHS | |
| Series | NU | |
| Dynamic Load Rating | 915kN | |
| Outside Diameter | 260mm | |
| Limiting Speed | 5000rpm | |
| Static Load Rating | 1040kN | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 120mm | ||
Race Width 86mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Standards/Approvals RoHS | ||
Series NU | ||
Dynamic Load Rating 915kN | ||
Outside Diameter 260mm | ||
Limiting Speed 5000rpm | ||
Static Load Rating 1040kN | ||
Number of Rows 1 | ||
Internal Clearance CN | ||

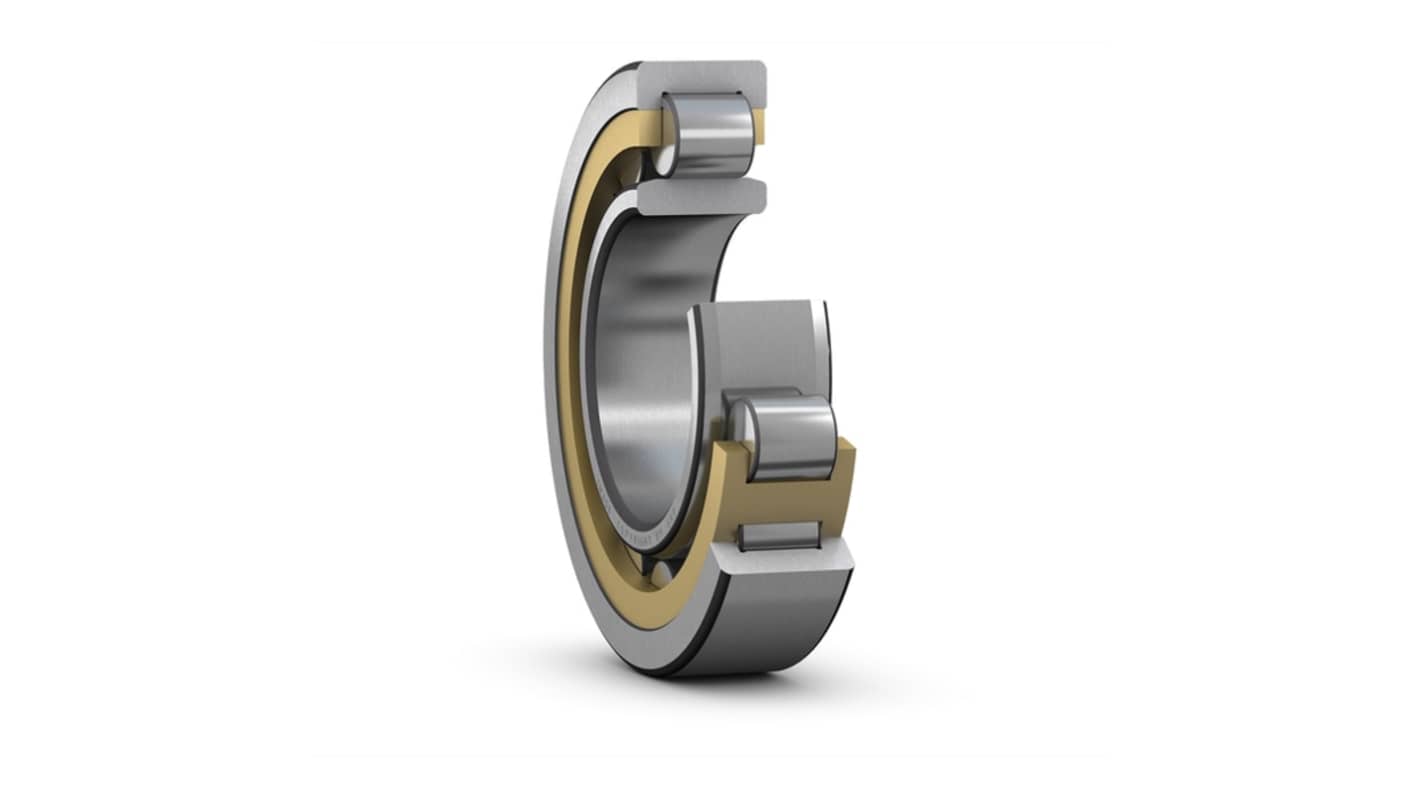

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
