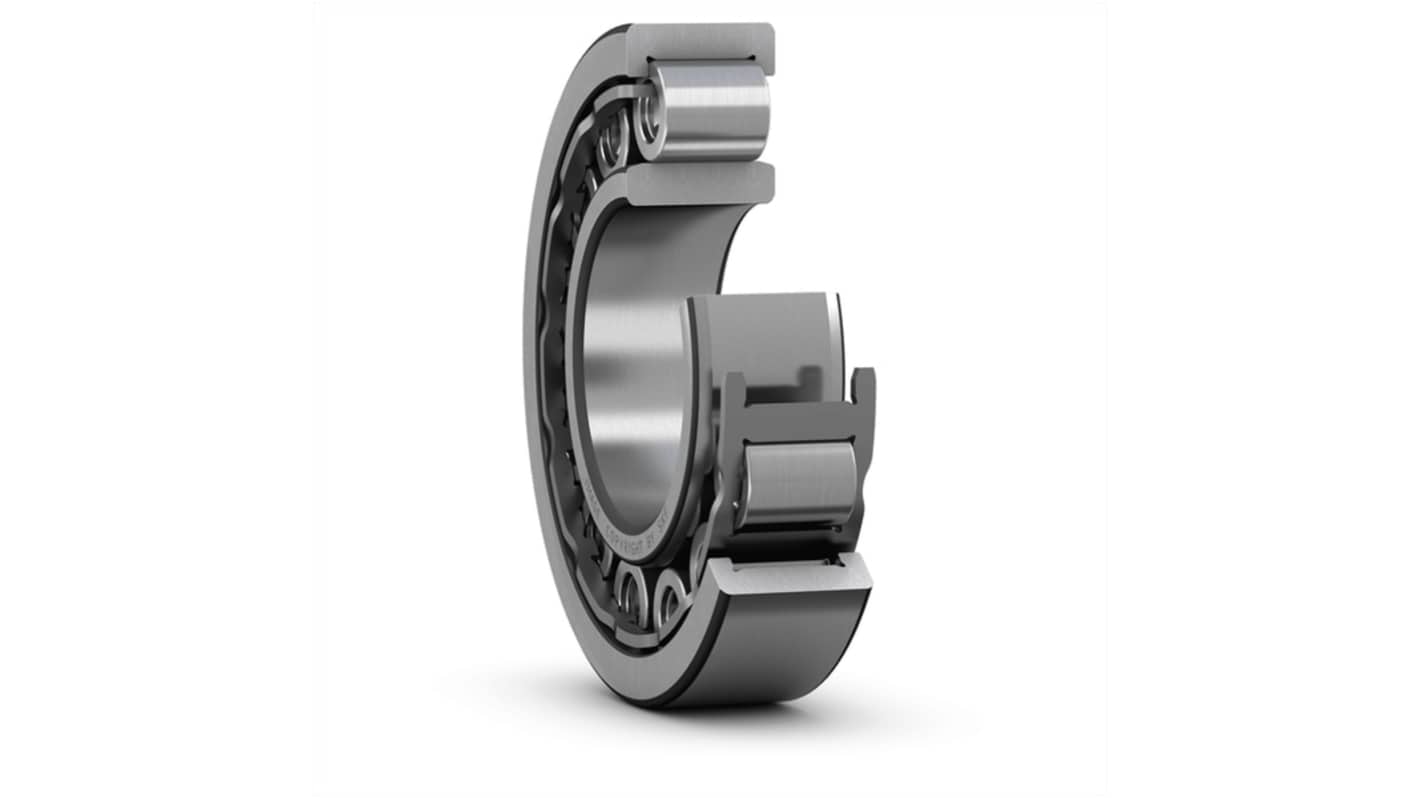

SKF NU 205 ECJ/C3M 25 mm ID Roller Bearing, 52 mm OD
- RS Stock No.:
- 462-793
- Mfr. Part No.:
- NU 205 ECJ/C3M
- Brand:
- SKF
Subtotal (1 unit)*
£64.95
(exc. VAT)
£77.94
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £64.95 |
*price indicative
- RS Stock No.:
- 462-793
- Mfr. Part No.:
- NU 205 ECJ/C3M
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 25mm | |
| Race Width | 15mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Dynamic Load Rating | 32.5kN | |
| Standards/Approvals | RoHS | |
| Series | NU | |
| Outside Diameter | 52mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 27kN | |
| Number of Rows | 1 | |
| Limiting Speed | 16000rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 25mm | ||
Race Width 15mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Dynamic Load Rating 32.5kN | ||
Standards/Approvals RoHS | ||
Series NU | ||
Outside Diameter 52mm | ||
Internal Clearance C3 | ||
Static Load Rating 27kN | ||
Number of Rows 1 | ||
Limiting Speed 16000rpm | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions.
High radial load carrying capacity
Low friction
Long service life
