SKF 30219 Taper Roller 95 mm I.D Taper Roller Bearing, 170 mm O.D
- RS Stock No.:
- 462-251
- Mfr. Part No.:
- 30219
- Brand:
- SKF
Subtotal (1 unit)*
£182.93
(exc. VAT)
£219.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £182.93 |
*price indicative
- RS Stock No.:
- 462-251
- Mfr. Part No.:
- 30219
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Taper Roller Bearing | |
| Inside Diameter | 95 mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Bearing Dynamic Load Rating | 266 KN | |
| Standards/Approvals | UNSPSC, eClass, RoHS | |
| Limiting Speed | 3800rpm | |
| Cup Width | 27mm | |
| Static Load Rating | 275kN | |
| Series | 30219 | |
| Outside Diameter | 170 mm | |
| Number of Rows | 1 | |
| Cone Width | 32mm | |
| Bearing Type | Taper Roller | |
| Race Type | Cylindrical | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Taper Roller Bearing | ||
Inside Diameter 95 mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Bearing Dynamic Load Rating 266 KN | ||
Standards/Approvals UNSPSC, eClass, RoHS | ||
Limiting Speed 3800rpm | ||
Cup Width 27mm | ||
Static Load Rating 275kN | ||
Series 30219 | ||
Outside Diameter 170 mm | ||
Number of Rows 1 | ||
Cone Width 32mm | ||
Bearing Type Taper Roller | ||
Race Type Cylindrical | ||
- COO (Country of Origin):
- PL
Omkar

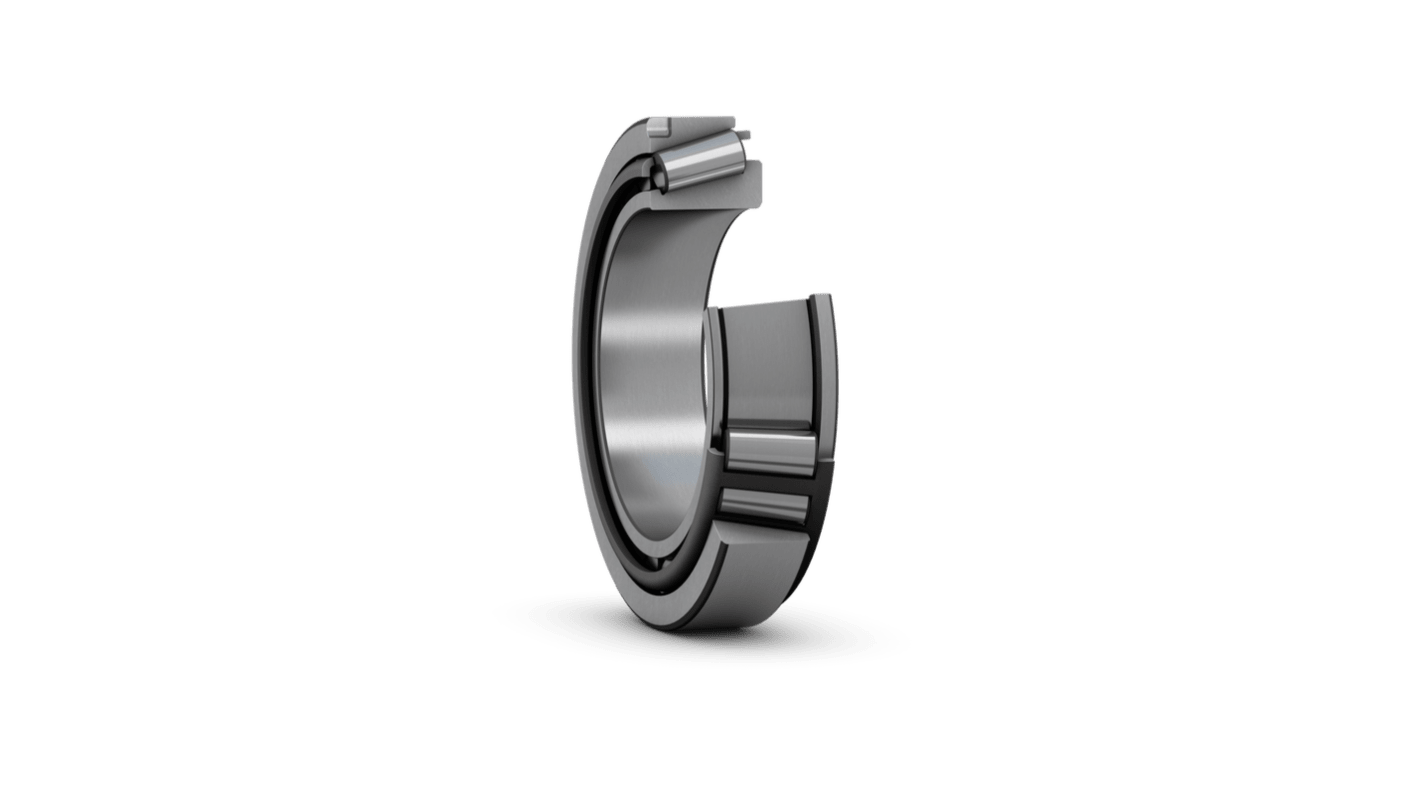

The SKF Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components
