SKF 22338 CC/W33 Cylindrical 190 mm ID Roller Bearing, 400 mm OD
- RS Stock No.:
- 462-104
- Mfr. Part No.:
- 22338 CC/W33
- Brand:
- SKF
Subtotal (1 unit)*
£4,542.27
(exc. VAT)
£5,450.72
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £4,542.27 |
*price indicative
- RS Stock No.:
- 462-104
- Mfr. Part No.:
- 22338 CC/W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 190mm | |
| Race Width | 132mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Internal Clearance | CN | |
| Number of Rows | 2 | |
| Outside Diameter | 400mm | |
| Limiting Speed | 1600rpm | |
| Dynamic Load Rating | 2232kN | |
| Standards/Approvals | RoHS | |
| Series | 22338 CC/W33 | |
| Static Load Rating | 2650kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 190mm | ||
Race Width 132mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Internal Clearance CN | ||
Number of Rows 2 | ||
Outside Diameter 400mm | ||
Limiting Speed 1600rpm | ||
Dynamic Load Rating 2232kN | ||
Standards/Approvals RoHS | ||
Series 22338 CC/W33 | ||
Static Load Rating 2650kN | ||
- COO (Country of Origin):
- SE
Rupali

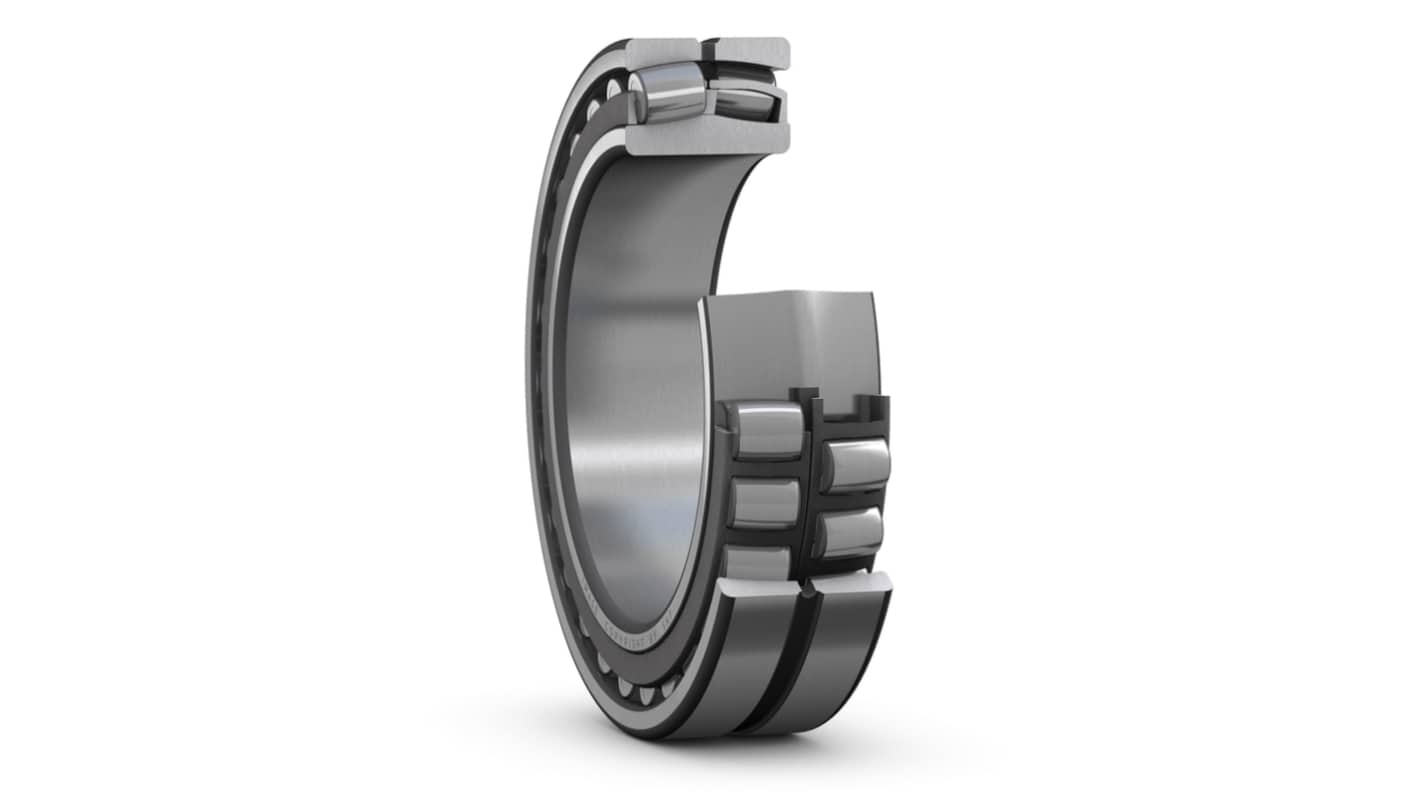

The SKF Spherical roller bearings can accommodate heavy loads in both directions. They are self aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
