SKF 23228 CC/W33 Cylindrical 140 mm ID Roller Bearing, 250 mm OD
- RS Stock No.:
- 461-788
- Mfr. Part No.:
- 23228 CC/W33
- Brand:
- SKF
Subtotal (1 unit)*
£1,407.81
(exc. VAT)
£1,689.37
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,407.81 |
*price indicative
- RS Stock No.:
- 461-788
- Mfr. Part No.:
- 23228 CC/W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 140mm | |
| Race Width | 88mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Standards/Approvals | UNSPSC, RoHS, eClass | |
| Static Load Rating | 1250kN | |
| Limiting Speed | 2400rpm | |
| Dynamic Load Rating | 962kN | |
| Outside Diameter | 250mm | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Race Type | Cylindrical | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 140mm | ||
Race Width 88mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Standards/Approvals UNSPSC, RoHS, eClass | ||
Static Load Rating 1250kN | ||
Limiting Speed 2400rpm | ||
Dynamic Load Rating 962kN | ||
Outside Diameter 250mm | ||
Number of Rows 2 | ||
Internal Clearance CN | ||
Race Type Cylindrical | ||
Rupali

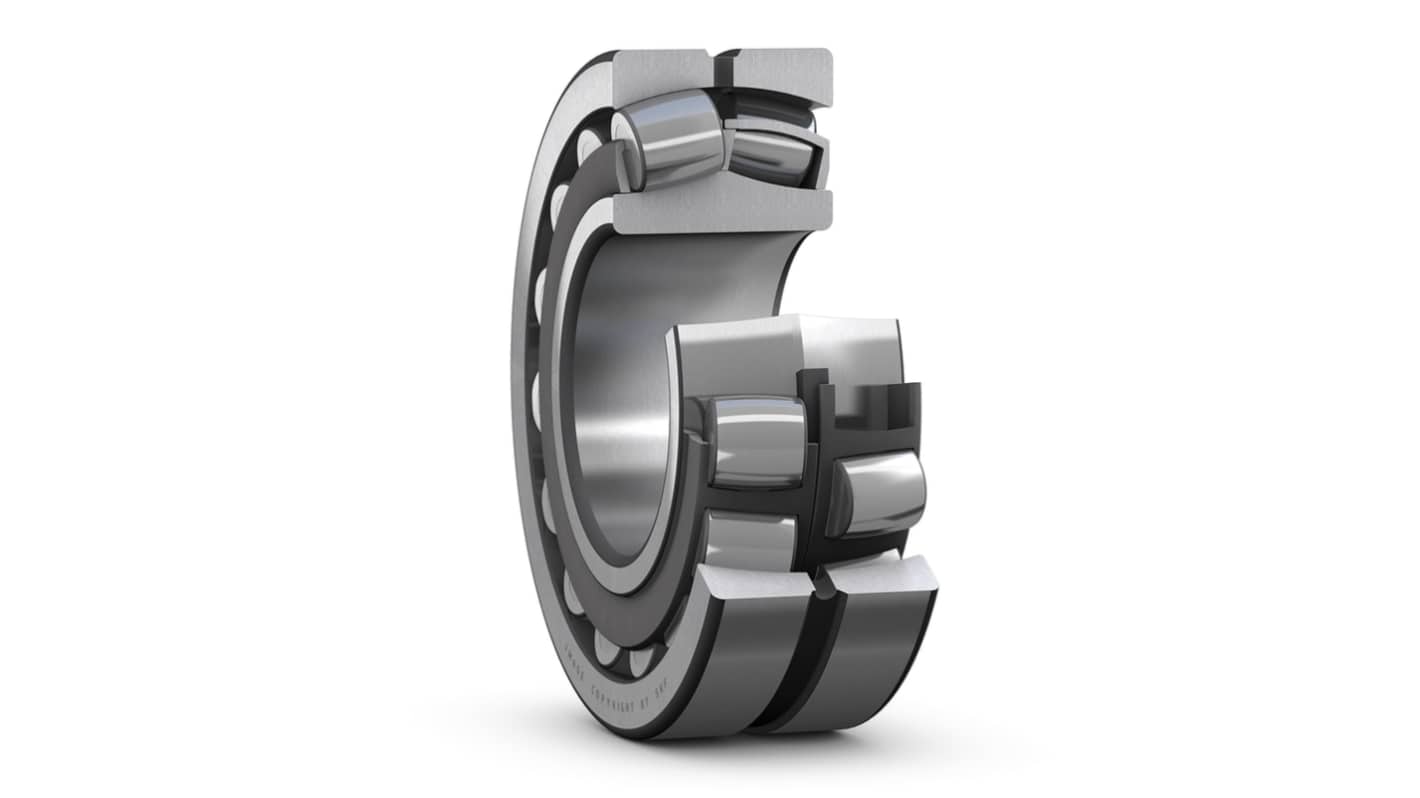

The SKF Spherical roller bearings can accommodate heavy loads in both directions. They are self aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
