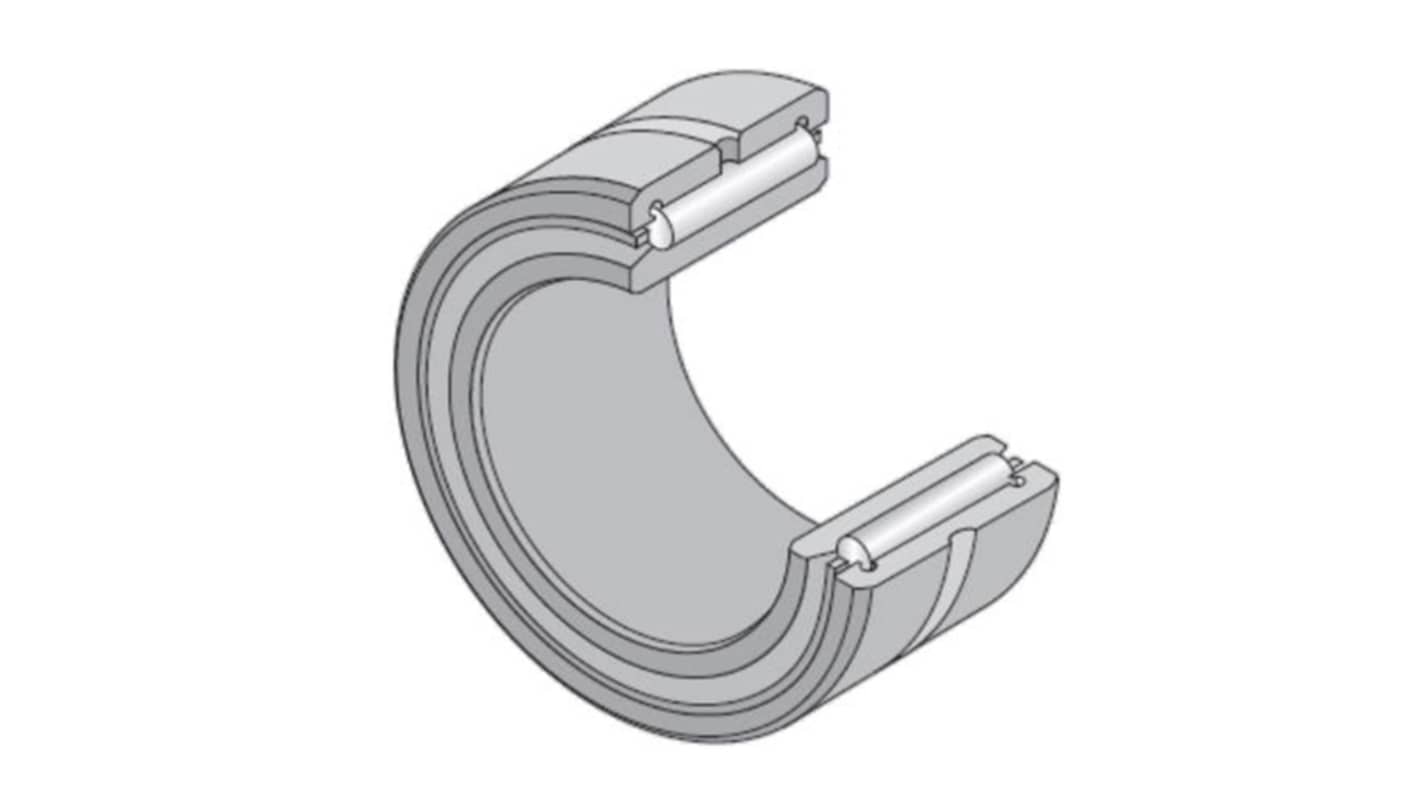

NTN NK90/35R+1R80X90X35 80 mm I.D Needle Roller Bearing Needle Roller, Machined-ring, 110 mm O.D
- RS Stock No.:
- 455-347
- Mfr. Part No.:
- NK90/35R+1R80X90X35
- Brand:
- NTN
Subtotal (1 unit)*
£140.60
(exc. VAT)
£168.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £140.60 |
*price indicative
- RS Stock No.:
- 455-347
- Mfr. Part No.:
- NK90/35R+1R80X90X35
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 35mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Limiting Speed | 4400rpm | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Maximum Speed - Grease | 2900rpm | |
| Maximum Speed - Oil | 4400rpm | |
| Standards/Approvals | RoHS | |
| End Type | Open | |
| Dynamic Load Rating | 104kN | |
| Internal Clearance | CN | |
| Outside Diameter | 110 mm | |
| Static Load Rating | 208kN | |
| Series | NK90/35R+1R80X90X35 | |
| Bearing Type | Needle Roller, Machined-ring | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 35mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Limiting Speed 4400rpm | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Maximum Speed - Grease 2900rpm | ||
Maximum Speed - Oil 4400rpm | ||
Standards/Approvals RoHS | ||
End Type Open | ||
Dynamic Load Rating 104kN | ||
Internal Clearance CN | ||
Outside Diameter 110 mm | ||
Static Load Rating 208kN | ||
Series NK90/35R+1R80X90X35 | ||
Bearing Type Needle Roller, Machined-ring | ||
- COO (Country of Origin):
- JP
The NTN needle roller bearing is designed to offer outstanding performance and durability in varied applications. This machined-ring bearing features an inner ring with double-side ribs and a lubrication hole for enhanced functionality. Crafted with high-quality materials, it ensures reliable operation under dynamic loads, making it ideal for machinery requiring precision and longevity. With its robust construction, this bearing effectively accommodates radial and axial offsets, streamlining assembly processes while maintaining optimal performance under extreme conditions.
Inner ring offerings allow for more versatile mounting options
Lubrication holes provide ease of maintenance and improved performance longevity
Accommodates temperature variations to maintain functionality
Offers dynamic load ratings tailored for rigorous operational demands
Includes a radial clearance class for reliable performance
