NTN NKX17T2 17 mm ID Roller Bearing Combined, 26 mm OD
- RS Stock No.:
- 455-175
- Mfr. Part No.:
- NKX17T2
- Brand:
- NTN
Subtotal (1 unit)*
£37.63
(exc. VAT)
£45.16
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £37.63 |
*price indicative
- RS Stock No.:
- 455-175
- Mfr. Part No.:
- NKX17T2
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Roller Bearing | |
| Inside Diameter | 17mm | |
| Race Width | 25mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Nylon | |
| Static Load Rating | 14.4kN | |
| Dynamic Load Rating | 10.4kN | |
| Maximum Speed - Grease | 6000rpm | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 8500rpm | |
| Outside Diameter | 26mm | |
| Series | NKX17T2 | |
| Maximum Speed - Oil | 8500rpm | |
| Internal Clearance | CN | |
| End Type | Open | |
| Number of Rows | 1 | |
| Bearing Material | High Carbon Chrome Steel | |
| Bearing Type | Combined | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Roller Bearing | ||
Inside Diameter 17mm | ||
Race Width 25mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Nylon | ||
Static Load Rating 14.4kN | ||
Dynamic Load Rating 10.4kN | ||
Maximum Speed - Grease 6000rpm | ||
Standards/Approvals RoHS | ||
Limiting Speed 8500rpm | ||
Outside Diameter 26mm | ||
Series NKX17T2 | ||
Maximum Speed - Oil 8500rpm | ||
Internal Clearance CN | ||
End Type Open | ||
Number of Rows 1 | ||
Bearing Material High Carbon Chrome Steel | ||
Bearing Type Combined | ||
- COO (Country of Origin):
- JP

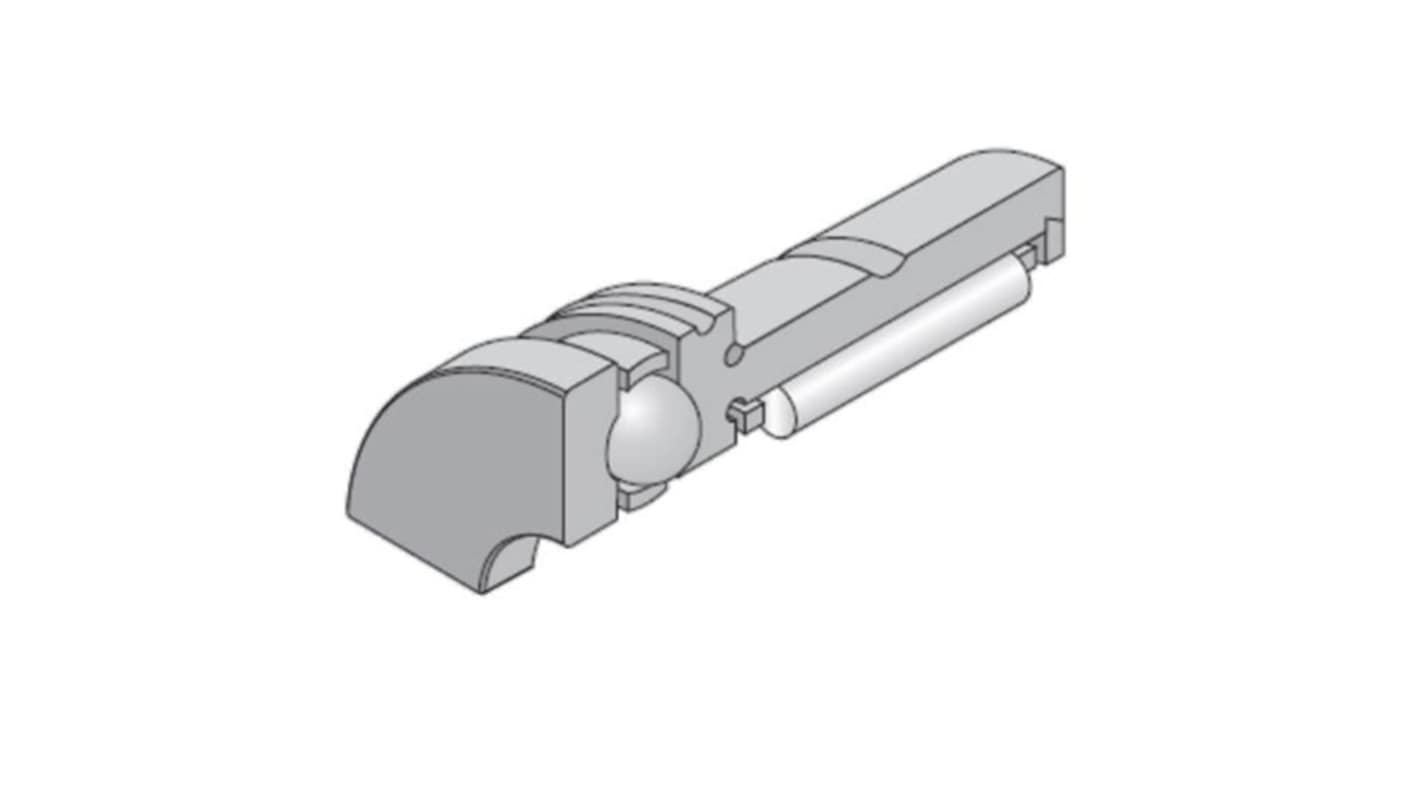

The NTN Combined bearings are engineered for exceptional performance under various demanding conditions. This versatile component boasts a sleek design that integrates a thrust bearing and a drawn cup, optimising functionality while ensuring durability. With a dynamic load rating of 10.4 kN and a static load rating of 14.4 kN, these bearings are capable of withstanding significant forces. Additionally, the product is designed with precision in mind, featuring a minimum operating temperature of -20 °C and a maximum of 120 °C, making it suitable for a variety of applications. The innovative lubrication holes on the outer ring provide enhanced maintenance options, simplifying the upkeep process while maximising operational efficiency.
Includes lubrication holes for easy maintenance and improved longevity
Constructed from high-quality materials to ensure durability over time
Perfectly suited for a variety of industrial applications
Lightweight design facilitates easy installation and handling
Precision engineering contributes to smooth operation and reduced friction
