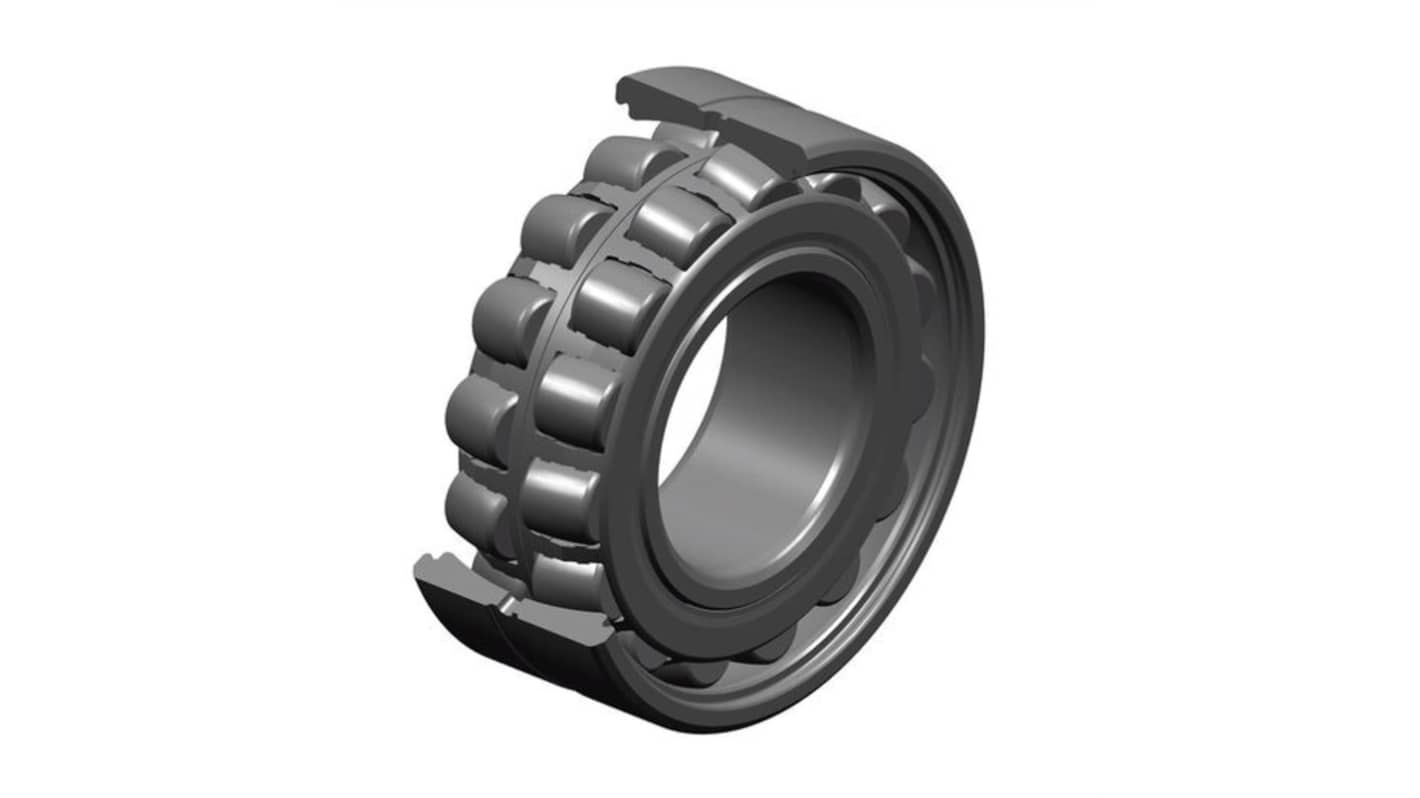

NTN 23036EAKW33 Taper 180 mm I.D Spherical Roller Bearing, 280 mm O.D
- RS Stock No.:
- 455-029
- Mfr. Part No.:
- 23036EAKW33
- Brand:
- NTN
Subtotal (1 unit)*
£995.83
(exc. VAT)
£1,195.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £995.83 |
*price indicative
- RS Stock No.:
- 455-029
- Mfr. Part No.:
- 23036EAKW33
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 180 mm | |
| Race Width | 74mm | |
| Bore Type | Taper | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Dynamic Load Rating | 1080kN | |
| Standards/Approvals | RoHS Certificate of Compliance | |
| Maximum Speed - Oil | 2500rpm | |
| Maximum Speed - Grease | 2000rpm | |
| Series | 23036EAKW33 | |
| Internal Clearance | CN | |
| Outside Diameter | 280 mm | |
| Bearing Material | Through Hardened Steel | |
| Limiting Speed | 2500rpm | |
| Static Load Rating | 1450kN | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 180 mm | ||
Race Width 74mm | ||
Bore Type Taper | ||
Roller Material Steel | ||
Cage Material Steel | ||
Dynamic Load Rating 1080kN | ||
Standards/Approvals RoHS Certificate of Compliance | ||
Maximum Speed - Oil 2500rpm | ||
Maximum Speed - Grease 2000rpm | ||
Series 23036EAKW33 | ||
Internal Clearance CN | ||
Outside Diameter 280 mm | ||
Bearing Material Through Hardened Steel | ||
Limiting Speed 2500rpm | ||
Static Load Rating 1450kN | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is engineered for optimal performance in various demanding applications. Combining robust construction with precision engineering, this product offers enhanced reliability and longevity, making it an excellent choice for industrial use. The internal and external diameters have been meticulously designed to guarantee superior load capacity and stability. Whether you require a bearing for heavy machinery or other mechanical systems, this offering ensures smooth operation under varying loads and conditions. With a focus on high-quality materials, the bearing promises resistance against wear and tear, ensuring it remains a dependable component in your assembly line.
Robust construction for enhanced durability
Precision-engineered for superior load capacity
Smooth operation reduces friction and wear
Versatile design suitable for various industrial applications
High-quality materials enhance performance longevity
Optimised dimensions ensure stability under varying loads
Structured for ease of installation and maintenance
