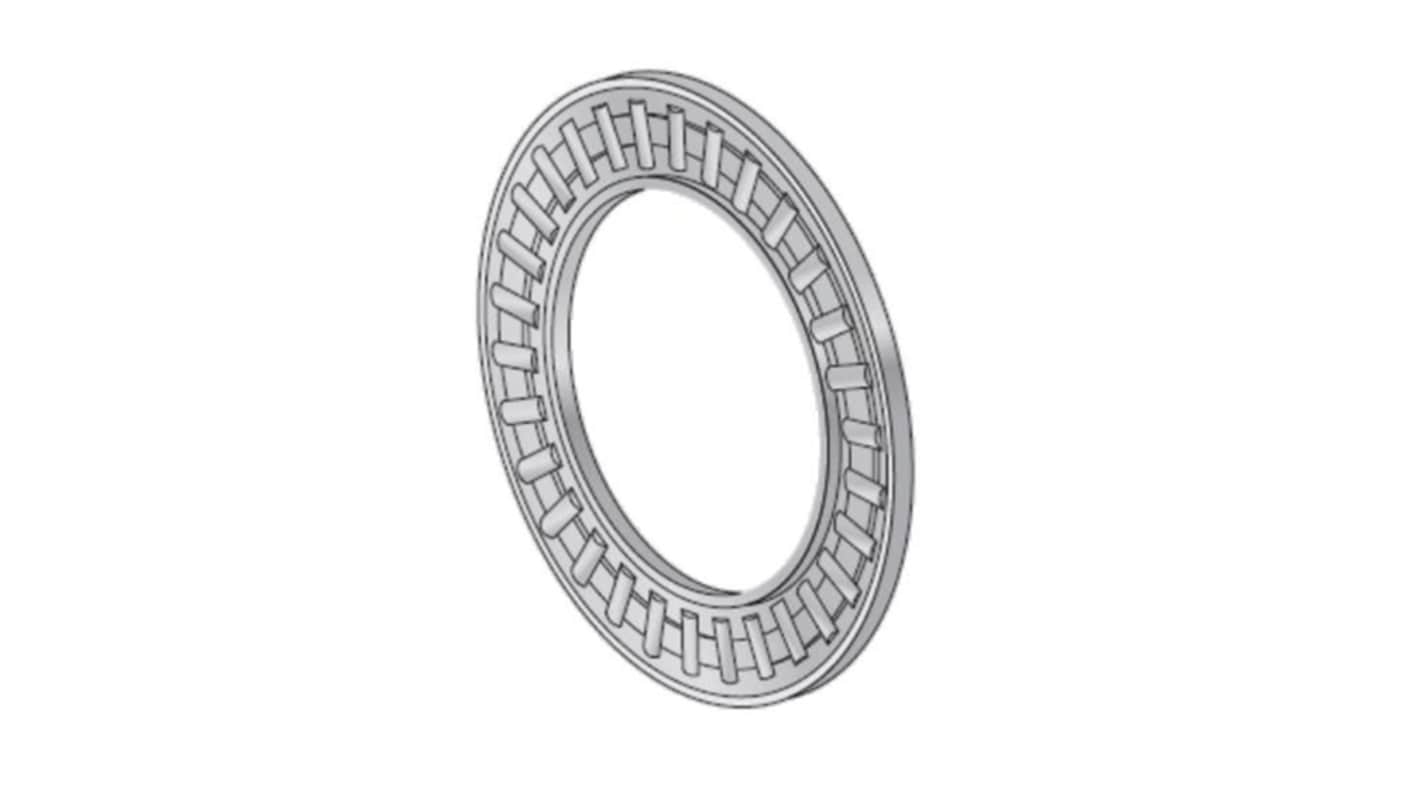

NTN AXK1117 90.5 mm I.D Needle Roller Bearing Thrust Needle Roller, 110 mm O.D
- RS Stock No.:
- 454-651
- Mfr. Part No.:
- AXK1117
- Brand:
- NTN
Subtotal (1 unit)*
£22.23
(exc. VAT)
£26.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.23 |
*price indicative
- RS Stock No.:
- 454-651
- Mfr. Part No.:
- AXK1117
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 90.5 mm | |
| Race Width | 4mm | |
| Roller Material | Steel | |
| Maximum Speed - Grease | 600rpm | |
| Series | AXK1117 | |
| Static Load Rating | 291kN | |
| Number of Rows | 1 | |
| Outside Diameter | 110 mm | |
| Maximum Speed - Oil | 2400rpm | |
| Dynamic Load Rating | 57.5kN | |
| Standards/Approvals | RoHS | |
| Race Type | Thrust | |
| Bearing Type | Thrust Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 90.5 mm | ||
Race Width 4mm | ||
Roller Material Steel | ||
Maximum Speed - Grease 600rpm | ||
Series AXK1117 | ||
Static Load Rating 291kN | ||
Number of Rows 1 | ||
Outside Diameter 110 mm | ||
Maximum Speed - Oil 2400rpm | ||
Dynamic Load Rating 57.5kN | ||
Standards/Approvals RoHS | ||
Race Type Thrust | ||
Bearing Type Thrust Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Thrust Needle Roller Bearing Cage holds and guides the needle rollers in the bearing assembly. It ensures even load distribution and smooth rotation while preventing roller skewing. This cage is designed for high strength and durability in demanding axial load applications.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation and even load distribution under heavy axial loads
