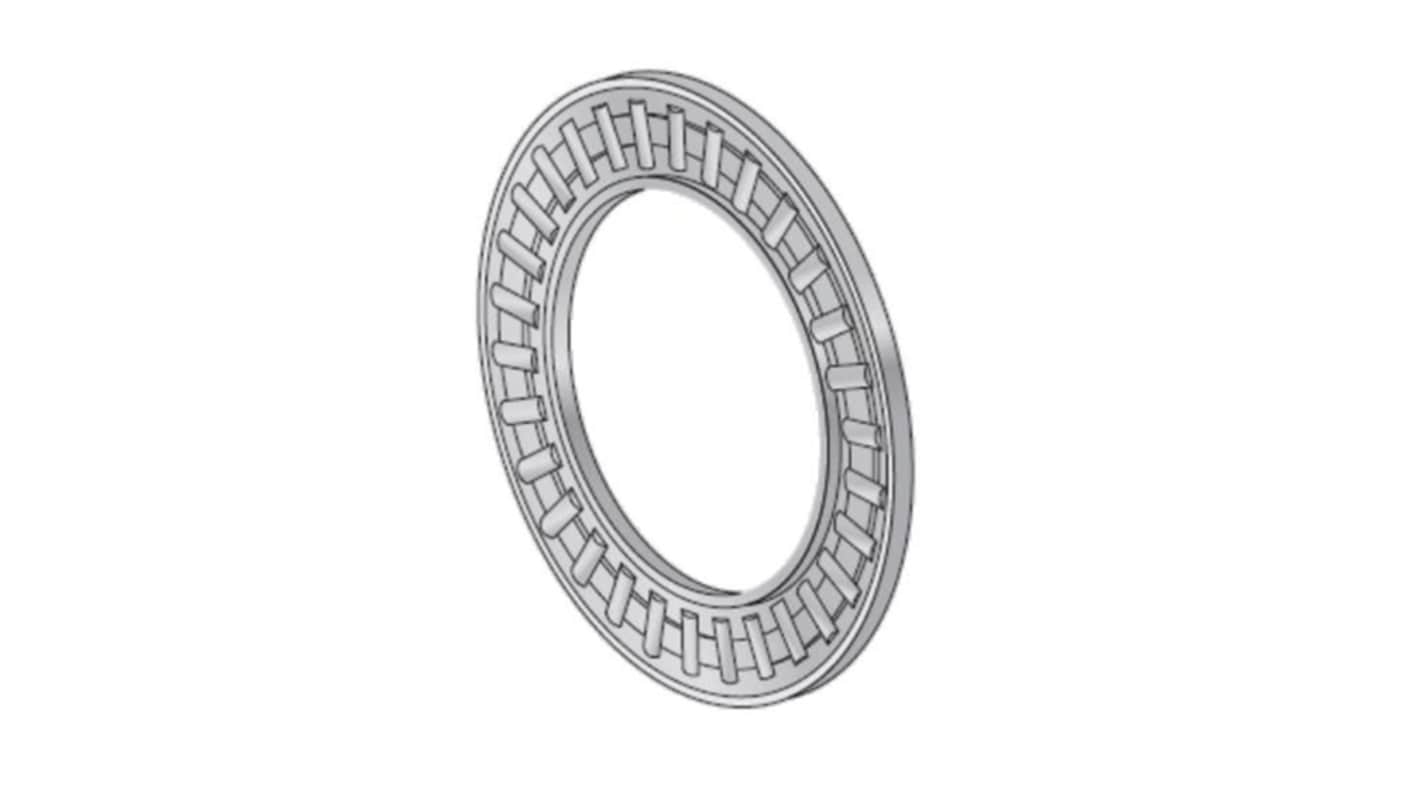

NTN AXK1105 29.5 mm ID Needle Roller Thrust Bearing Thrust Needle Roller, 39.4 mm OD
- RS Stock No.:
- 454-638
- Mfr. Part No.:
- AXK1105
- Brand:
- NTN
Subtotal (1 unit)*
£2.72
(exc. VAT)
£3.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.72 |
*price indicative
- RS Stock No.:
- 454-638
- Mfr. Part No.:
- AXK1105
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 29.5mm | |
| Race Width | 2mm | |
| Roller Material | Steel | |
| Outside Diameter | 39.4mm | |
| Maximum Speed - Oil | 7000rpm | |
| Standards/Approvals | RoHS | |
| Static Load Rating | 58kN | |
| Dynamic Load Rating | 14.6kN | |
| Number of Rows | 1 | |
| Series | AXK1105 | |
| Maximum Speed - Grease | 1800rpm | |
| Race Type | Thrust | |
| Bearing Type | Thrust Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 29.5mm | ||
Race Width 2mm | ||
Roller Material Steel | ||
Outside Diameter 39.4mm | ||
Maximum Speed - Oil 7000rpm | ||
Standards/Approvals RoHS | ||
Static Load Rating 58kN | ||
Dynamic Load Rating 14.6kN | ||
Number of Rows 1 | ||
Series AXK1105 | ||
Maximum Speed - Grease 1800rpm | ||
Race Type Thrust | ||
Bearing Type Thrust Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Thrust Needle Roller Bearing Cage holds and guides the needle rollers in the bearing assembly. It ensures even load distribution and smooth rotation while preventing roller skewing. This cage is designed for high strength and durability in demanding axial load applications.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation and even load distribution under heavy axial loads
