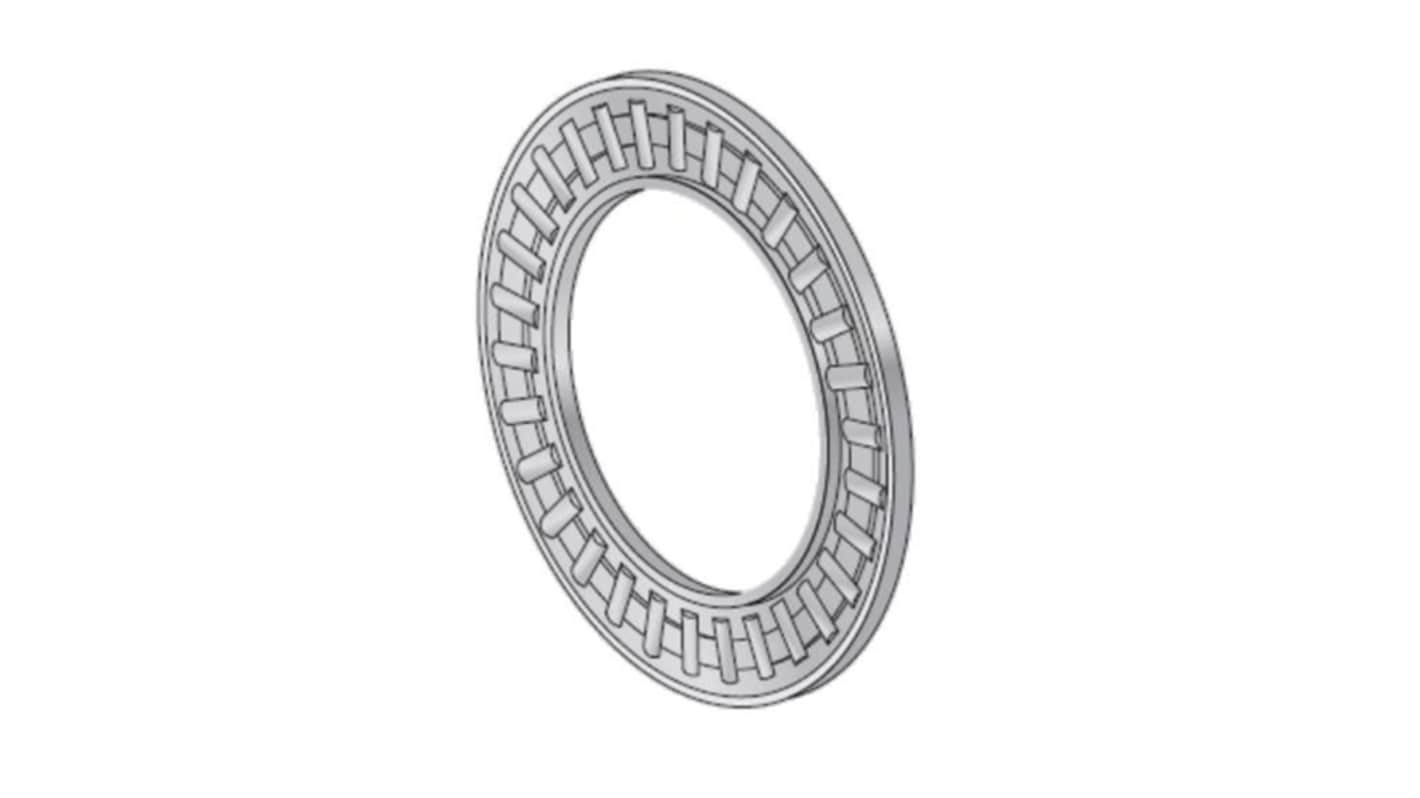

NTN AXK1102 17.2 mm ID Needle Roller Thrust Bearing Thrust Needle Roller, 26.5 mm OD
- RS Stock No.:
- 454-634
- Mfr. Part No.:
- AXK1102
- Brand:
- NTN
Subtotal (1 unit)*
£2.35
(exc. VAT)
£2.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.35 |
*price indicative
- RS Stock No.:
- 454-634
- Mfr. Part No.:
- AXK1102
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 17.2mm | |
| Race Width | 2mm | |
| Roller Material | Steel | |
| Outside Diameter | 26.5mm | |
| Static Load Rating | 36kN | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 11.3kN | |
| Maximum Speed - Grease | 2800rpm | |
| Standards/Approvals | RoHS | |
| Series | AXK1102 | |
| Maximum Speed - Oil | 11000rpm | |
| Race Type | Thrust | |
| Bearing Type | Thrust Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 17.2mm | ||
Race Width 2mm | ||
Roller Material Steel | ||
Outside Diameter 26.5mm | ||
Static Load Rating 36kN | ||
Number of Rows 1 | ||
Dynamic Load Rating 11.3kN | ||
Maximum Speed - Grease 2800rpm | ||
Standards/Approvals RoHS | ||
Series AXK1102 | ||
Maximum Speed - Oil 11000rpm | ||
Race Type Thrust | ||
Bearing Type Thrust Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Thrust Needle Roller Bearing Cage holds and guides the needle rollers in the bearing assembly. It ensures even load distribution and smooth rotation while preventing roller skewing. This cage is designed for high strength and durability in demanding axial load applications.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation and even load distribution under heavy axial loads
