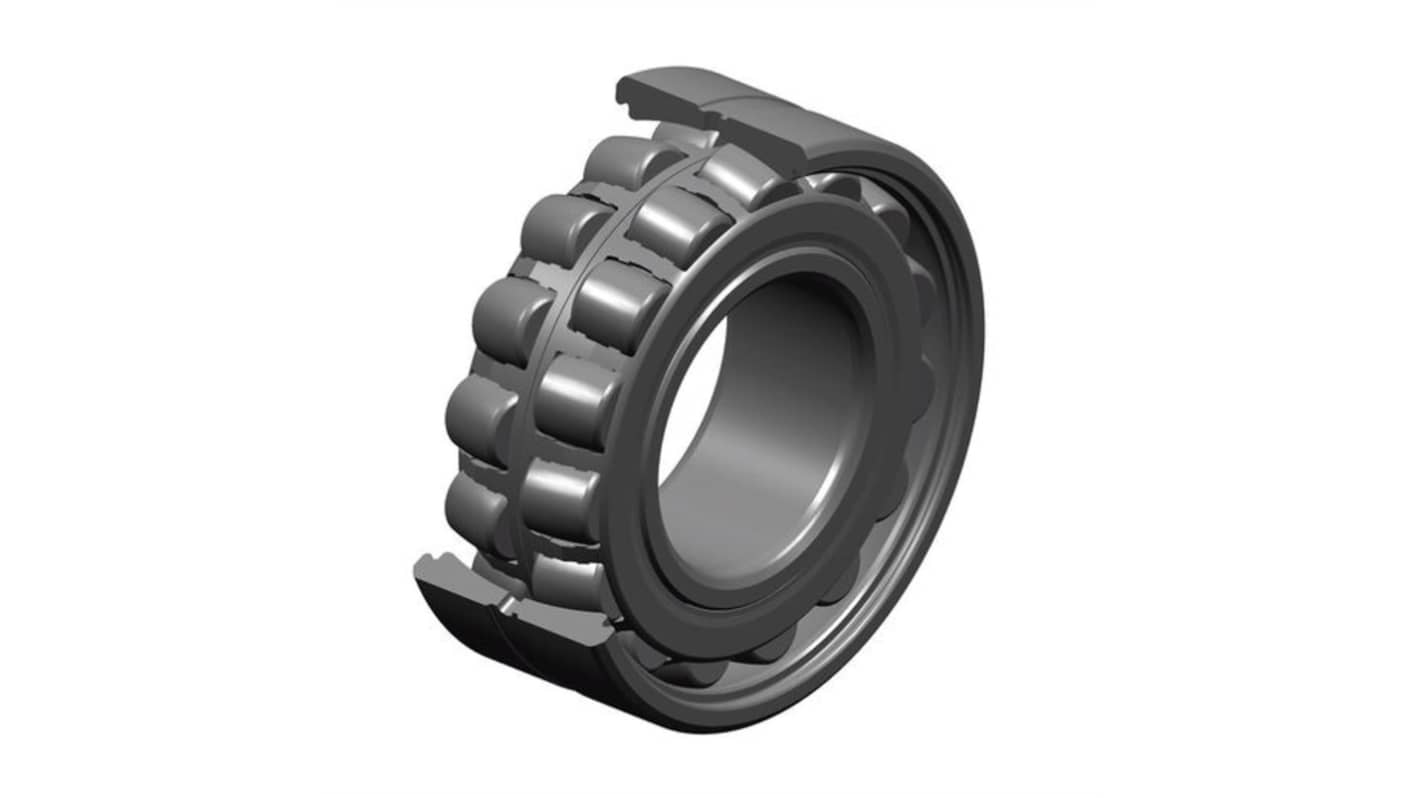

NTN 23038EAKW33C3 Taper 190 mm I.D Spherical Roller Bearing, 290 mm O.D
- RS Stock No.:
- 454-528
- Mfr. Part No.:
- 23038EAKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£1,201.29
(exc. VAT)
£1,441.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,201.29 |
*price indicative
- RS Stock No.:
- 454-528
- Mfr. Part No.:
- 23038EAKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 190 mm | |
| Race Width | 75mm | |
| Bore Type | Taper | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Bearing Material | Through Hardened Steel | |
| Maximum Speed - Grease | 1900rpm | |
| Maximum Speed - Oil | 2400rpm | |
| Standards/Approvals | RoHS Certificate of Compliance | |
| Dynamic Load Rating | 1140kN | |
| Limiting Speed | 2400rpm | |
| Outside Diameter | 290 mm | |
| Internal Clearance | C3 | |
| Series | 230 | |
| Static Load Rating | 1570kN | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 190 mm | ||
Race Width 75mm | ||
Bore Type Taper | ||
Cage Material Steel | ||
Roller Material Steel | ||
Bearing Material Through Hardened Steel | ||
Maximum Speed - Grease 1900rpm | ||
Maximum Speed - Oil 2400rpm | ||
Standards/Approvals RoHS Certificate of Compliance | ||
Dynamic Load Rating 1140kN | ||
Limiting Speed 2400rpm | ||
Outside Diameter 290 mm | ||
Internal Clearance C3 | ||
Series 230 | ||
Static Load Rating 1570kN | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearings are engineered to provide exceptional performance and reliability for a myriad of applications. This innovative design enhances operational efficiency while ensuring robust support under various loading conditions. Constructed with precision, these bearings are especially noted for their ability to accommodate misalignments and facilitate smooth rotation, contributing to the longevity of machinery. With a dynamic load rating of 1140 kN and a static load rating of 1570 kN, they stand as a testament to quality and durability, making them ideal for demanding industrial environments. Moreover, their capability to function effectively at temperatures ranging from -40 °C to 200 °C ensures versatility across different sectors.
Delivers robust performance under heavy loads
Designed for durability and longevity in challenging conditions
Accommodates misalignments to maintain optimal performance
Optimised for smooth and efficient operation at various speeds
Engineered with a special focus on the needs of industrial applications
Facilitates easy installation and maintenance, saving valuable time
