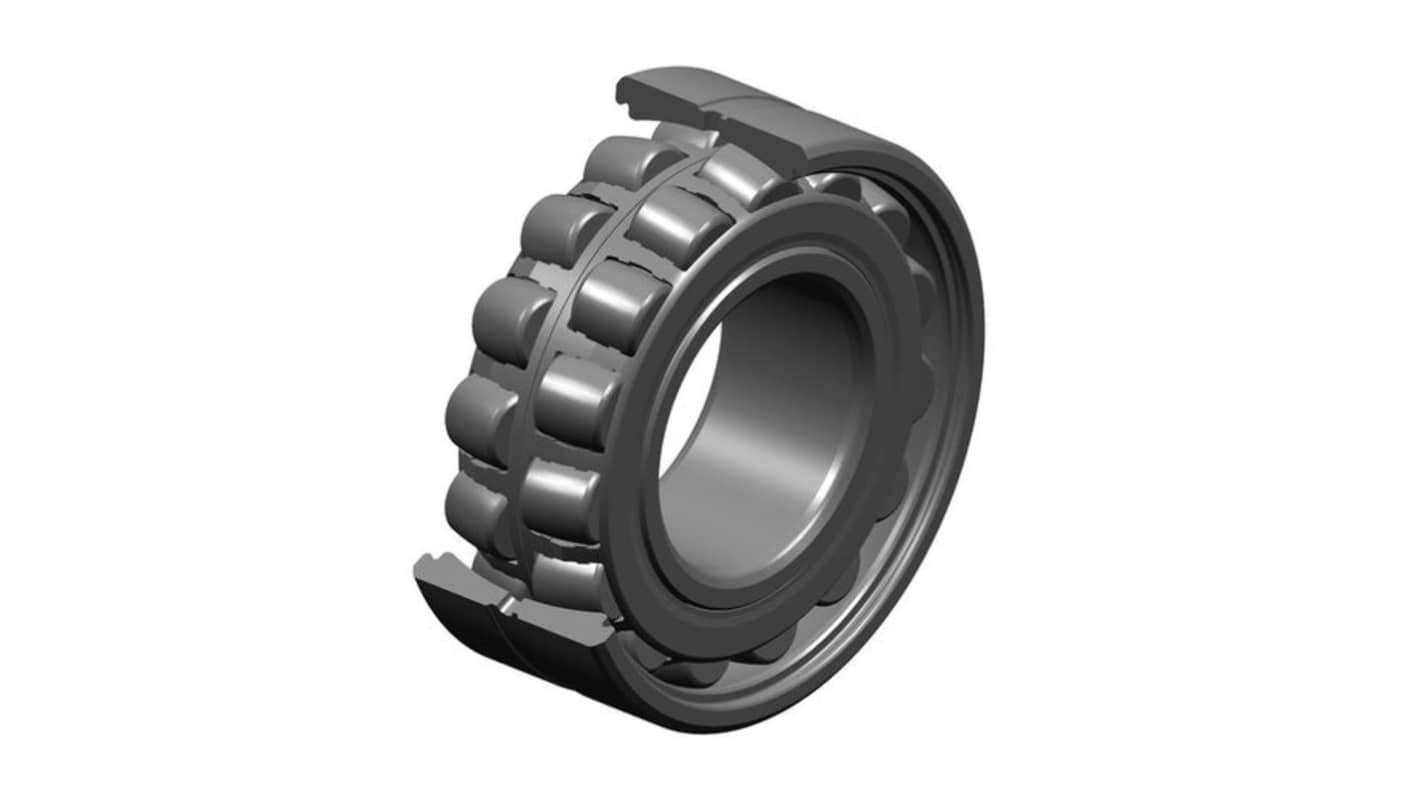

NTN 23024EAW33C3 Round 120 mm I.D Spherical Roller Bearing, 180 mm O.D
- RS Stock No.:
- 454-366
- Mfr. Part No.:
- 23024EAW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£355.44
(exc. VAT)
£426.53
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £355.44 |
*price indicative
- RS Stock No.:
- 454-366
- Mfr. Part No.:
- 23024EAW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 120 mm | |
| Race Width | 46mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Standards/Approvals | RoHS | |
| Outside Diameter | 180 mm | |
| Dynamic Load Rating | 446kN | |
| End Type | Open | |
| Bearing Material | Through Hardened Steel | |
| Number of Rows | 2 | |
| Static Load Rating | 577kN | |
| Series | 23024EAW33C3 | |
| Internal Clearance | C3 | |
| Limiting Speed | 3900rpm | |
| Maximum Speed - Grease | 2400rpm | |
| Maximum Speed - Oil | 3100rpm | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 120 mm | ||
Race Width 46mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Standards/Approvals RoHS | ||
Outside Diameter 180 mm | ||
Dynamic Load Rating 446kN | ||
End Type Open | ||
Bearing Material Through Hardened Steel | ||
Number of Rows 2 | ||
Static Load Rating 577kN | ||
Series 23024EAW33C3 | ||
Internal Clearance C3 | ||
Limiting Speed 3900rpm | ||
Maximum Speed - Grease 2400rpm | ||
Maximum Speed - Oil 3100rpm | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is engineered for high reliability and performance, making it an ideal choice for demanding industrial applications. Its robust design seamlessly accommodates axial and radial loads, ensuring optimal functionality even under challenging conditions. With superior materials and precision engineering, this bearing contributes to extended service life and reduced maintenance costs. The advanced specifications ensure that it meets the rigorous standards required in varied mechanical environments. Distinguished by its unique features, this product stands as a testament to innovative design and practical efficiency, providing an exceptional solution for machinery requiring top-notch performance.
Designed to support heavy loads with enhanced stability
Employs high-quality steel for improved durability and longevity
Features multiple lubrication holes for optimal maintenance
Offers excellent resistance to temperature variations
Incorporates a unique groove width to enhance performance under pressure
Provides versatile operational capabilities across different industries
Engineered with precision to reduce friction and operational noise
Allows for efficient assembly and disassembly in various applications
