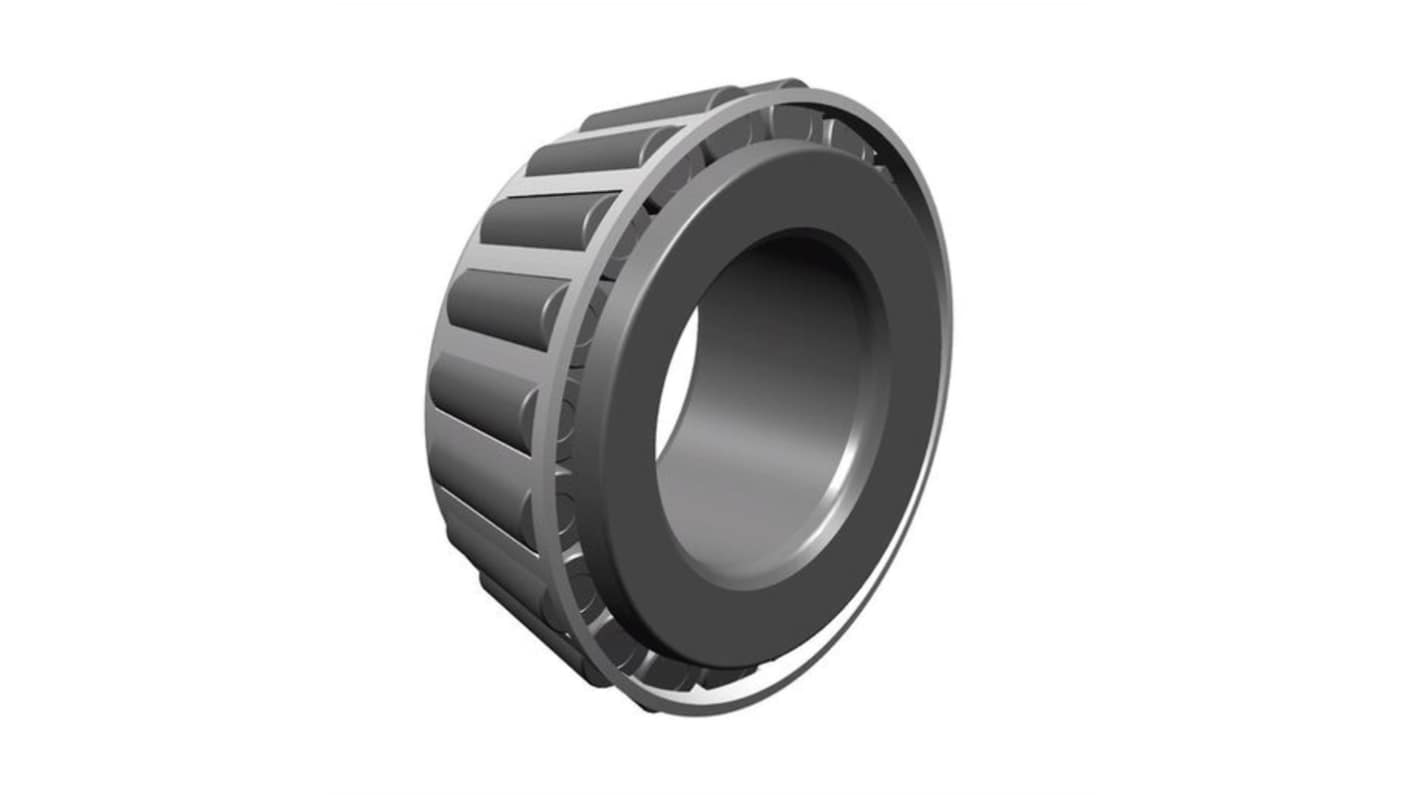

NTN 4T-LM603049 Single Row Tapered Roller 45.242 mm ID Roller Bearing, 61.5 mm OD
- RS Stock No.:
- 453-868
- Mfr. Part No.:
- 4T-LM603049
- Brand:
- NTN
Subtotal (1 unit)*
£15.23
(exc. VAT)
£18.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.23 |
*price indicative
- RS Stock No.:
- 453-868
- Mfr. Part No.:
- 4T-LM603049
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Roller Bearing | |
| Inside Diameter | 45.242mm | |
| Bore Type | Round | |
| Cage Material | Pressed Steel | |
| Roller Material | Case Hardening Steel | |
| Series | 4T-LM603049 | |
| Standards/Approvals | ISO 355, ABMA, RoHS, JIS B 1512 | |
| Bearing Dynamic Load Rating | 63.5kN | |
| Outside Diameter | 61.5mm | |
| Static Load Rating | 73.5kN | |
| Number of Rows | 1 | |
| Cone Width | 19.842mm | |
| Bearing Material | Case Carburised Steel | |
| Bearing Type | Single Row Tapered Roller | |
| Race Type | Tapered | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Roller Bearing | ||
Inside Diameter 45.242mm | ||
Bore Type Round | ||
Cage Material Pressed Steel | ||
Roller Material Case Hardening Steel | ||
Series 4T-LM603049 | ||
Standards/Approvals ISO 355, ABMA, RoHS, JIS B 1512 | ||
Bearing Dynamic Load Rating 63.5kN | ||
Outside Diameter 61.5mm | ||
Static Load Rating 73.5kN | ||
Number of Rows 1 | ||
Cone Width 19.842mm | ||
Bearing Material Case Carburised Steel | ||
Bearing Type Single Row Tapered Roller | ||
Race Type Tapered | ||
- COO (Country of Origin):
- JP
The NTN single row tapered roller bearing is designed to deliver optimal performance and reliability in demanding applications. This bearing's sophisticated design ensures smooth operation and high load capacity, making it an ideal choice for various industrial uses. The innovative geometry of the inner and outer rings allows for effective load distribution, enhancing overall efficiency. Meticulously crafted, this bearing incorporates a pressed steel cage that offers robust support while minimising friction. With its precise internal dimensions and rated load values, this bearing promises endurance, making it a preferred solution in mechanical assemblies requiring superior reliability and durability.
Effective load distribution promotes enhanced performance and longevity
Innovative geometry supports smooth operation under various working conditions
Designed for simple installation, reducing downtime during maintenance
High-quality materials used to ensure resistance to wear and tear
