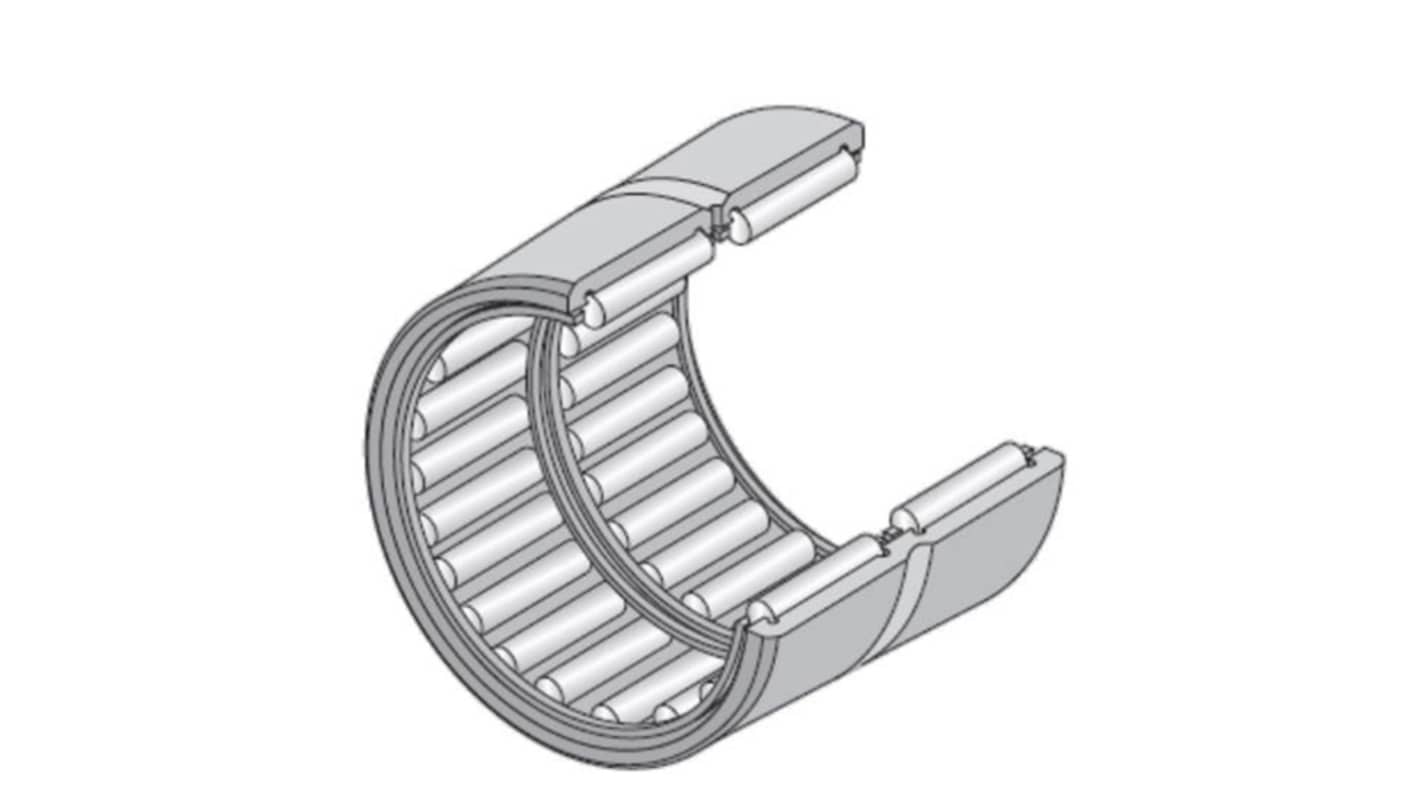

NTN RNA69/32R 40 mm ID Roller Bearing Needle Roller, 52 mm OD
- RS Stock No.:
- 453-797
- Mfr. Part No.:
- RNA69/32R
- Brand:
- NTN
Subtotal (1 unit)*
£43.18
(exc. VAT)
£51.82
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.18 |
*price indicative
- RS Stock No.:
- 453-797
- Mfr. Part No.:
- RNA69/32R
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Roller Bearing | |
| Inside Diameter | 40mm | |
| Race Width | 36mm | |
| Roller Material | Steel | |
| Maximum Speed - Grease | 6500rpm | |
| Static Load Rating | 82kN | |
| Internal Clearance | CN | |
| Maximum Speed - Oil | 10000rpm | |
| Outside Diameter | 52mm | |
| Series | RNA69/32R | |
| Number of Rows | 2 | |
| Dynamic Load Rating | 47.5kN | |
| Standards/Approvals | RoHS | |
| Race Type | Machine-Ring | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Roller Bearing | ||
Inside Diameter 40mm | ||
Race Width 36mm | ||
Roller Material Steel | ||
Maximum Speed - Grease 6500rpm | ||
Static Load Rating 82kN | ||
Internal Clearance CN | ||
Maximum Speed - Oil 10000rpm | ||
Outside Diameter 52mm | ||
Series RNA69/32R | ||
Number of Rows 2 | ||
Dynamic Load Rating 47.5kN | ||
Standards/Approvals RoHS | ||
Race Type Machine-Ring | ||
Bearing Type Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing is expertly designed for applications requiring high precision and durability. This machined-ring bearing, which operates without an inner ring, offers exceptional performance in various demanding environments. With a compact width and an optimized external diameter, it ensures effective load management and contributes to efficient mechanical systems. Ideal for use in both grease and oil lubrication settings, this bearing is engineered to withstand temperature variations and maintain functionality. Its robust design also features a lubrication hole on the outer ring, facilitating easy maintenance and longevity. Whether you're operating within industrial or commercial applications, the RNA69/32R provides the reliability that professionals seek.
Suitable for both grease and oil lubrication to adapt to various needs
Built to perform effectively across a wide temperature range
Includes a lubrication hole for straightforward maintenance
Durable construction ensures resilience against wear and tear
Ideal choice for industrial machinery and equipment requiring precision
