NTN HK3018L/3AS 30 mm ID Needle Roller Thrust Bearing Drawn Cup Needle Roller, 37 mm OD
- RS Stock No.:
- 453-703
- Mfr. Part No.:
- HK3018L/3AS
- Brand:
- NTN
Subtotal (1 unit)*
£7.72
(exc. VAT)
£9.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.72 |
*price indicative
- RS Stock No.:
- 453-703
- Mfr. Part No.:
- HK3018L/3AS
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 30mm | |
| Race Width | 18mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Series | HK3018L/3AS | |
| Maximum Speed - Grease | 5500rpm | |
| Bearing Material | Steel | |
| Standards/Approvals | RoHS | |
| End Type | Open | |
| Dynamic Load Rating | 18.1kN | |
| Outside Diameter | 37mm | |
| Static Load Rating | 30kN | |
| Limiting Speed | 5500rpm | |
| Internal Clearance | CN | |
| Number of Rows | 1 | |
| Race Type | Drawn Cup | |
| Bearing Type | Drawn Cup Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 30mm | ||
Race Width 18mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Series HK3018L/3AS | ||
Maximum Speed - Grease 5500rpm | ||
Bearing Material Steel | ||
Standards/Approvals RoHS | ||
End Type Open | ||
Dynamic Load Rating 18.1kN | ||
Outside Diameter 37mm | ||
Static Load Rating 30kN | ||
Limiting Speed 5500rpm | ||
Internal Clearance CN | ||
Number of Rows 1 | ||
Race Type Drawn Cup | ||
Bearing Type Drawn Cup Needle Roller | ||
- COO (Country of Origin):
- JP

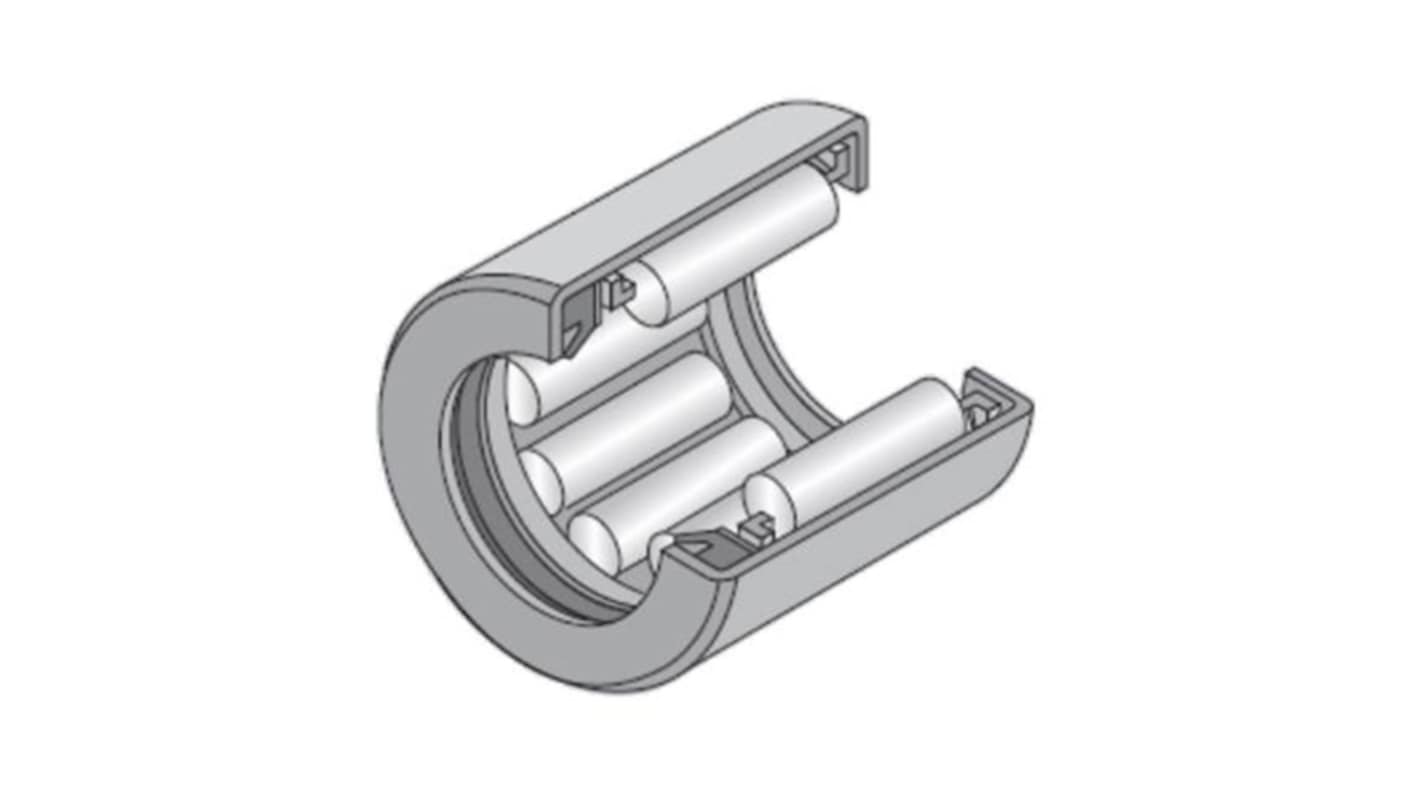

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
