NTN 4T-M802048/M802011 Taper Roller 41 mm ID Needle Roller Thrust Bearing, 82 mm OD
- RS Stock No.:
- 453-598
- Mfr. Part No.:
- 4T-M802048/M802011
- Brand:
- NTN
Subtotal (1 unit)*
£30.07
(exc. VAT)
£36.08
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.07 |
*price indicative
- RS Stock No.:
- 453-598
- Mfr. Part No.:
- 4T-M802048/M802011
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 41mm | |
| Bore Type | Round | |
| Cage Material | Pressed Steel | |
| Roller Material | Case Hardening Steel | |
| Series | Inch | |
| Maximum Speed - Oil | 6100rpm | |
| Static Load Rating | 104kN | |
| Cup Width | 20.193mm | |
| End Type | Open | |
| Number of Rows | 1 | |
| Bearing Dynamic Load Rating | 89kN | |
| Maximum Speed - Grease | 4600rpm | |
| Bearing Material | Case Carburised Steel | |
| Outside Diameter | 82mm | |
| Limiting Speed | 6100rpm | |
| Cone Width | 25.654mm | |
| Standards/Approvals | RoHS | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 41mm | ||
Bore Type Round | ||
Cage Material Pressed Steel | ||
Roller Material Case Hardening Steel | ||
Series Inch | ||
Maximum Speed - Oil 6100rpm | ||
Static Load Rating 104kN | ||
Cup Width 20.193mm | ||
End Type Open | ||
Number of Rows 1 | ||
Bearing Dynamic Load Rating 89kN | ||
Maximum Speed - Grease 4600rpm | ||
Bearing Material Case Carburised Steel | ||
Outside Diameter 82mm | ||
Limiting Speed 6100rpm | ||
Cone Width 25.654mm | ||
Standards/Approvals RoHS | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- JP

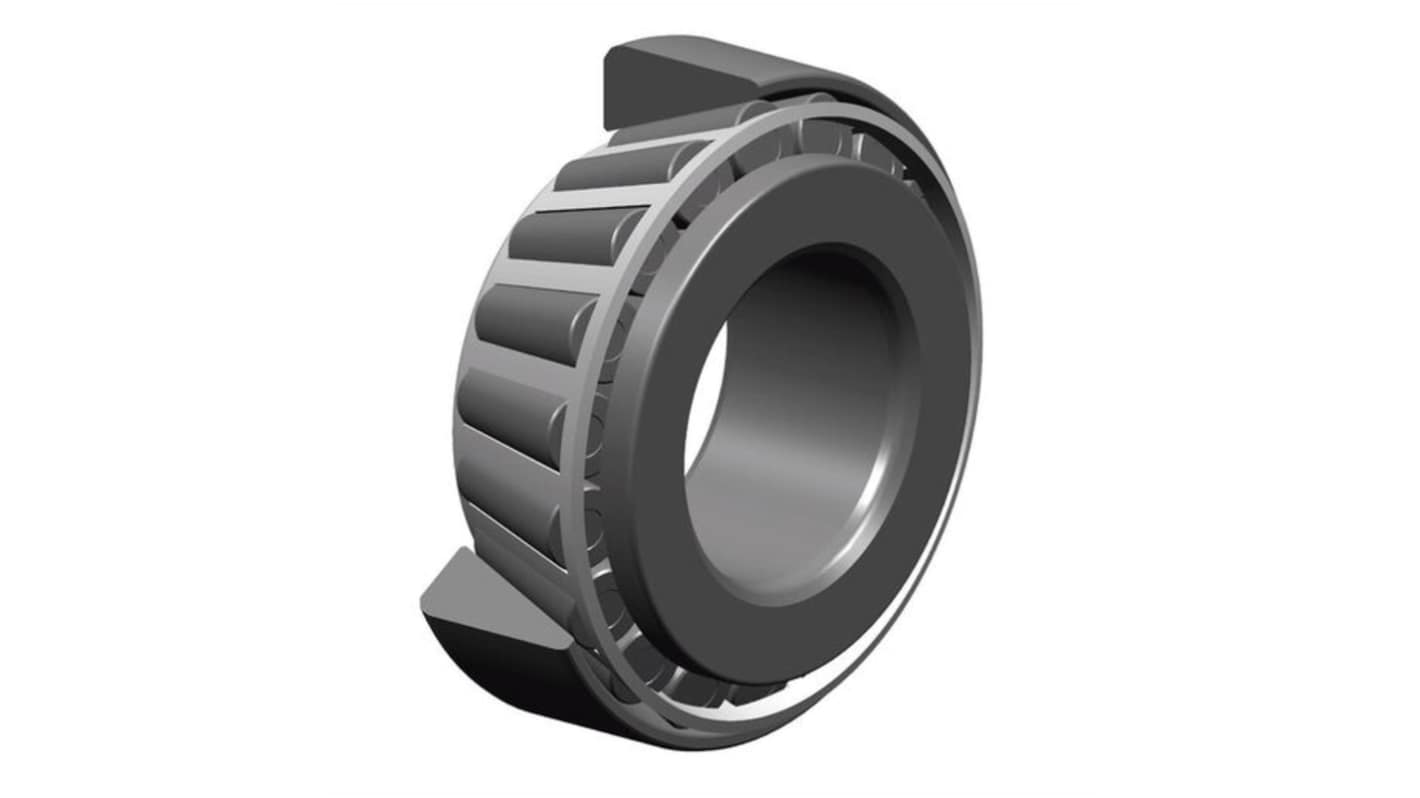

The NTN Single Row Tapered Roller Bearing is available in metric dimensions (ISO 355 and JIS B 1512 standards) and in inches (ABMA standard, including the metric series J). This type of bearing is the most widely used in the tapered roller bearing range and is generally mounted in opposition. It is particularly suitable for applications such as rolling mills, rear axles, wheels of road vehicles and agricultural equipment.
Rolling element material made of case hardening steel
Supports high radial loads
Supports axial loads in one direction
