NTN NK35/30R+1R30X35X30 30 mm ID Needle Roller Thrust Bearing Needle Roller, Machined-ring, 45 mm OD
- RS Stock No.:
- 453-442
- Mfr. Part No.:
- NK35/30R+1R30X35X30
- Brand:
- NTN
Subtotal (1 unit)*
£31.57
(exc. VAT)
£37.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.57 |
*price indicative
- RS Stock No.:
- 453-442
- Mfr. Part No.:
- NK35/30R+1R30X35X30
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 30mm | |
| Race Width | 30mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Static Load Rating | 66.5kN | |
| Internal Clearance | CN | |
| Outside Diameter | 45mm | |
| Dynamic Load Rating | 36kN | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Series | NK35/30R+1R30X35X30 | |
| Maximum Speed - Oil | 11000rpm | |
| Maximum Speed - Grease | 7500rpm | |
| Limiting Speed | 11000rpm | |
| Bearing Type | Needle Roller, Machined-ring | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 30mm | ||
Race Width 30mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
Static Load Rating 66.5kN | ||
Internal Clearance CN | ||
Outside Diameter 45mm | ||
Dynamic Load Rating 36kN | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Series NK35/30R+1R30X35X30 | ||
Maximum Speed - Oil 11000rpm | ||
Maximum Speed - Grease 7500rpm | ||
Limiting Speed 11000rpm | ||
Bearing Type Needle Roller, Machined-ring | ||
- COO (Country of Origin):
- JP

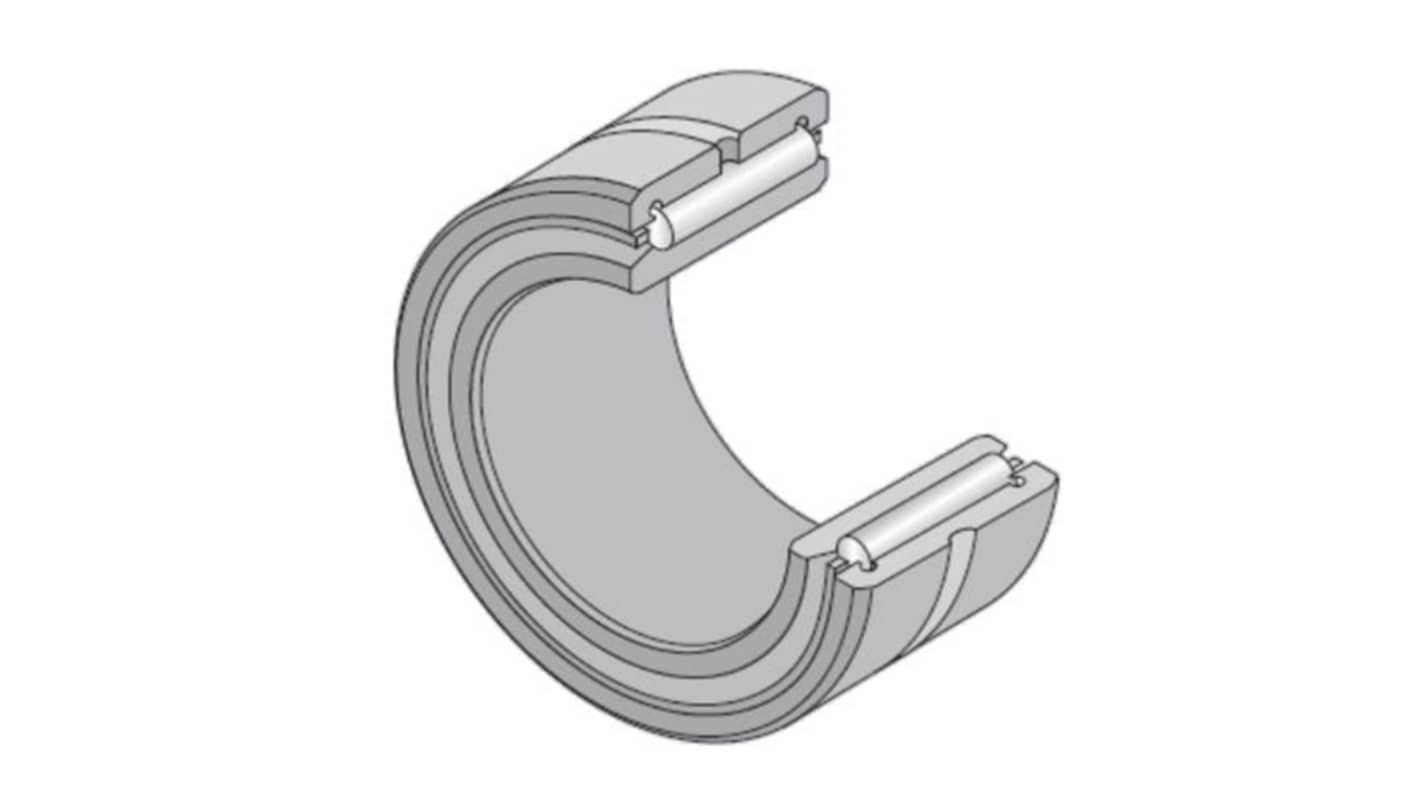

The NTN Needle roller bearing features a solid machined ring for enhanced strength and durability. It has radial clearance class CN for standard internal clearance and precision class P0 for general-purpose accuracy. Suitable for high-load applications with limited radial space. Ideal for gearboxes, engines, and industrial machinery.
The minimum operating temperature is -20°C
Rolling element material is Acier 100Cr6
Precision class is P0
