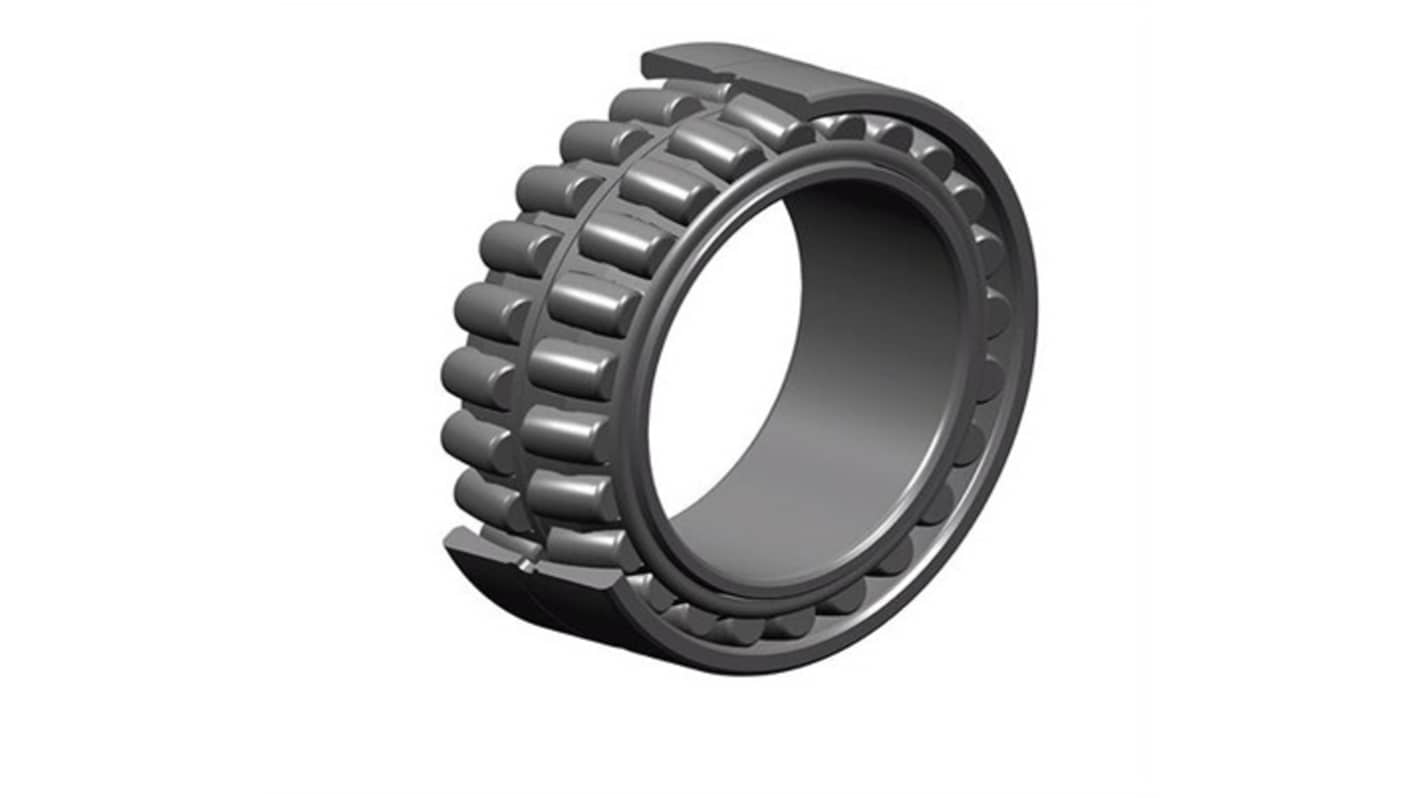

SNR 24124EAW33C3 Cylindrical 120 mm ID Spherical Roller Bearing, 200 mm OD
- RS Stock No.:
- 453-292
- Mfr. Part No.:
- 24124EAW33C3
- Brand:
- SNR
Subtotal (1 unit)*
£711.71
(exc. VAT)
£854.05
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £711.71 |
*price indicative
- RS Stock No.:
- 453-292
- Mfr. Part No.:
- 24124EAW33C3
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 120mm | |
| Race Width | 80mm | |
| Bore Type | Cylindrical | |
| Roller Material | Bearing Steel | |
| Cage Material | Pressed Steel | |
| Maximum Speed - Oil | 2500rpm | |
| Maximum Speed - Grease | 1900rpm | |
| Bearing Material | Through Hardened Steel | |
| Number of Rows | 2 | |
| Static Load Rating | 944kN | |
| Internal Clearance | C3 | |
| Limiting Speed | 2600rpm | |
| Outside Diameter | 200mm | |
| Dynamic Load Rating | 729kN | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Series | 24124 | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 120mm | ||
Race Width 80mm | ||
Bore Type Cylindrical | ||
Roller Material Bearing Steel | ||
Cage Material Pressed Steel | ||
Maximum Speed - Oil 2500rpm | ||
Maximum Speed - Grease 1900rpm | ||
Bearing Material Through Hardened Steel | ||
Number of Rows 2 | ||
Static Load Rating 944kN | ||
Internal Clearance C3 | ||
Limiting Speed 2600rpm | ||
Outside Diameter 200mm | ||
Dynamic Load Rating 729kN | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Series 24124 | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearings offer exceptional performance characteristics, meticulously designed to meet the rigorous demands of various industrial applications. With a robust construction featuring a pressed steel cage and a central rib on the inner ring, these bearings ensure reliable operation under substantial loads. Tailored for optimal functionality, they integrate lubrication holes on the outer ring, promoting efficient maintenance and longevity. This model supports dynamic and static loads while maintaining precise radial clearance, which enhances its durability. Perfectly suited for energy-efficient machinery, these bearings are engineered to handle extreme temperature variations and high rotational speeds. The exemplary craftsmanship guarantees smooth performance, making them a preferred choice among industry professionals.
Designed for high load capacities
Optimised for energy efficiency in machinery
Enhances operational reliability with robust construction
Accommodates extreme temperature variations
Features lubrication holes for easy maintenance
Ensures smooth and quiet operation
Supports high rotational speeds
Minimises wear and extends service life
