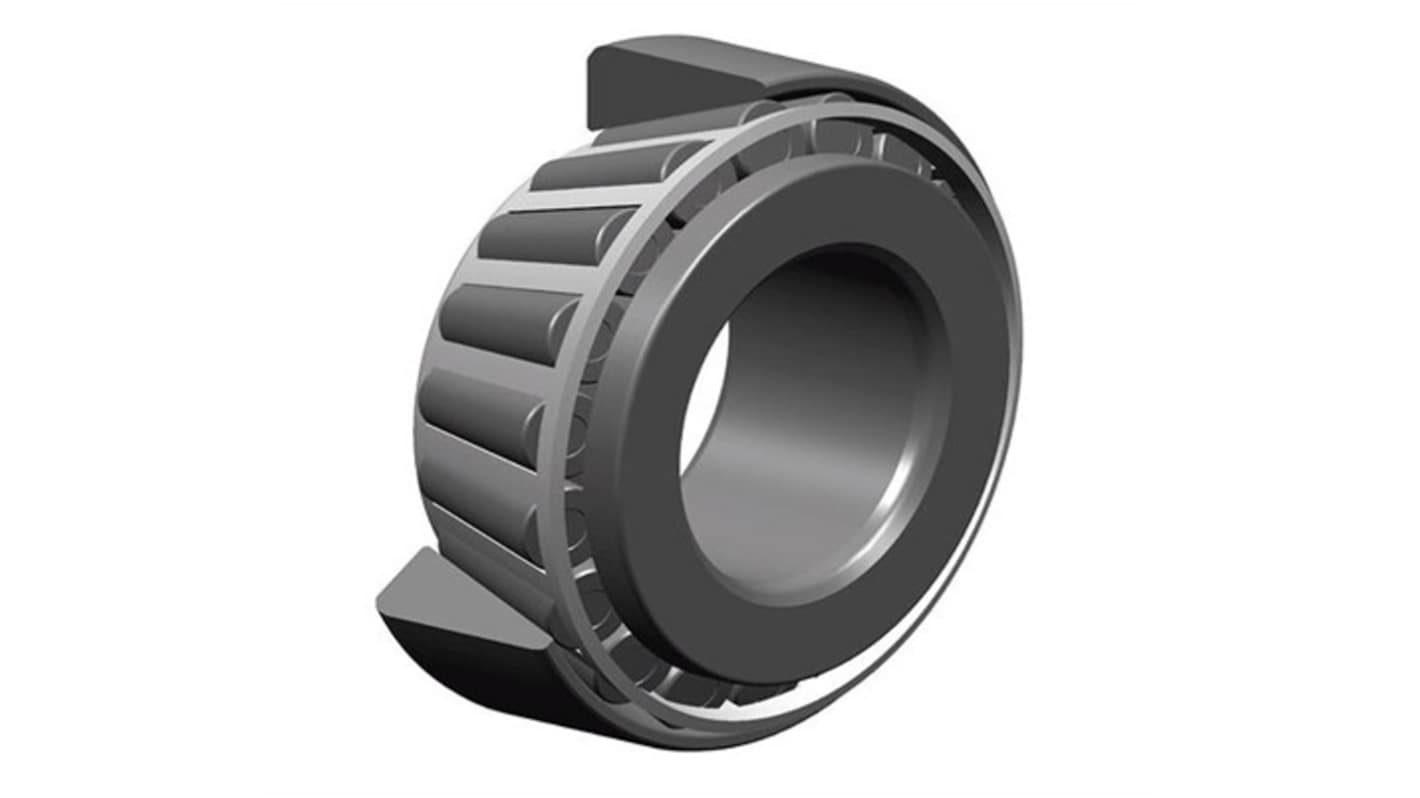

NTN 30317U Taper Roller 85 mm I.D Taper Roller Bearing, 180 mm O.D
- RS Stock No.:
- 453-285
- Mfr. Part No.:
- 30317U
- Brand:
- NTN
Subtotal (1 unit)*
£217.08
(exc. VAT)
£260.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £217.08 |
*price indicative
- RS Stock No.:
- 453-285
- Mfr. Part No.:
- 30317U
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Taper Roller Bearing | |
| Inside Diameter | 85 mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Pressed Steel | |
| Bearing Dynamic Load Rating | 335 KN | |
| Standards/Approvals | ISO 355 | |
| Maximum Speed - Oil | 2900rpm | |
| Maximum Speed - Grease | 2100rpm | |
| Limiting Speed | 2900rpm | |
| Bearing Material | Through Hardened Steel | |
| Cone Width | 41mm | |
| Number of Rows | 1 | |
| Cup Width | 34mm | |
| Static Load Rating | 365kN | |
| Series | 30317U | |
| Outside Diameter | 180 mm | |
| End Type | Open | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Taper Roller Bearing | ||
Inside Diameter 85 mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Pressed Steel | ||
Bearing Dynamic Load Rating 335 KN | ||
Standards/Approvals ISO 355 | ||
Maximum Speed - Oil 2900rpm | ||
Maximum Speed - Grease 2100rpm | ||
Limiting Speed 2900rpm | ||
Bearing Material Through Hardened Steel | ||
Cone Width 41mm | ||
Number of Rows 1 | ||
Cup Width 34mm | ||
Static Load Rating 365kN | ||
Series 30317U | ||
Outside Diameter 180 mm | ||
End Type Open | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- JP
The NTN single-row tapered roller bearing is engineered for precision and durability in demanding applications. Designed to support both radial and axial loads, this component excels in environments where reliable performance is essential. The pressed steel cage not only enhances strength but also minimises friction, ensuring smooth operational efficiency. Its robust construction withstands harsh conditions, with a wide operating temperature range allowing versatility across various industries. With a commitment to quality, this tapered roller bearing is an ideal choice for those seeking reliability and performance in their machinery.
Constructed with high-quality steel for enhanced durability
Optimised for reliable performance under load
Designed to efficiently manage both radial and axial forces
Featuring a pressed steel cage that reduces friction during operation
Suitable for a broad range of applications across different industries
Maintains operational reliability in extreme temperatures
Engineered for longevity, reducing the need for frequent replacements
