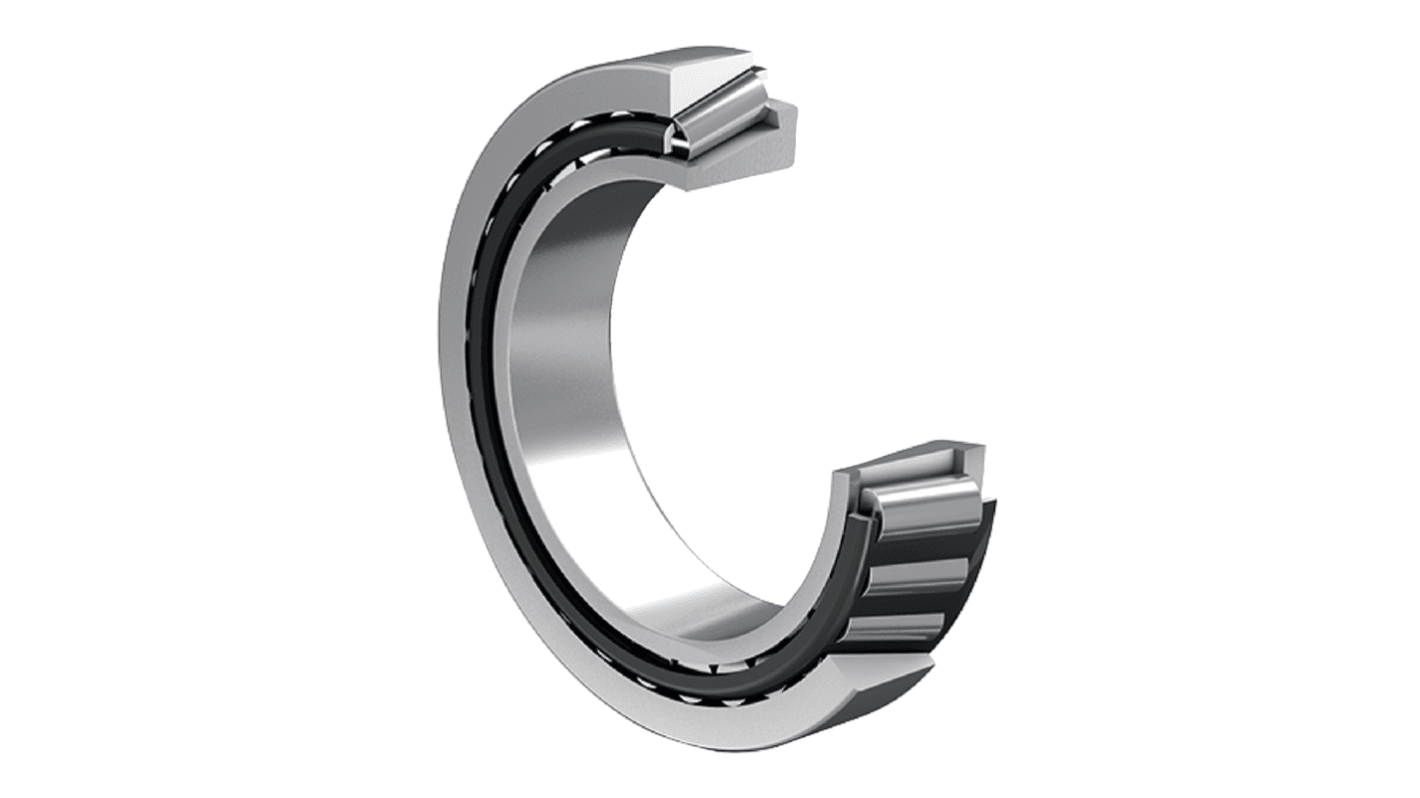

FAG 33022 Taper Roller 110 mm ID Roller Bearing, 170 mm OD
- RS Stock No.:
- 312-646
- Mfr. Part No.:
- 33022
- Brand:
- FAG
Subtotal (1 unit)*
£232.22
(exc. VAT)
£278.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £232.22 |
*price indicative
- RS Stock No.:
- 312-646
- Mfr. Part No.:
- 33022
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 110 mm | |
| Cage Material | Sheet Steel Cage | |
| Number of Rows | 1 | |
| Static Load Rating | 520000N | |
| Outside Diameter | 170 mm | |
| Bearing Material | Steel | |
| Standards/Approvals | DIN ISO 355/DIN 720 | |
| Limiting Speed | 3950rpm | |
| Bearing Dynamic Load Rating | 295000 N | |
| Cone Width | 47mm | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 110 mm | ||
Cage Material Sheet Steel Cage | ||
Number of Rows 1 | ||
Static Load Rating 520000N | ||
Outside Diameter 170 mm | ||
Bearing Material Steel | ||
Standards/Approvals DIN ISO 355/DIN 720 | ||
Limiting Speed 3950rpm | ||
Bearing Dynamic Load Rating 295000 N | ||
Cone Width 47mm | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- AT
The FAG Tapered Roller Bearing is engineered to deliver exceptional reliability in a myriad of applications. Featuring a unique separable design, it allows for ease in assembly and disassembly, making maintenance and replacement hassle-free. This bearing is designed to accommodate combined radial and axial loads, providing optimal performance even in demanding environments.
Operates effectively in a broad temperature range accommodating diverse environments
Lightweight design reduces the overall weight of the assembly without compromising strength
Compatible with grease and oil lubrication methods for enhanced maintenance flexibility
